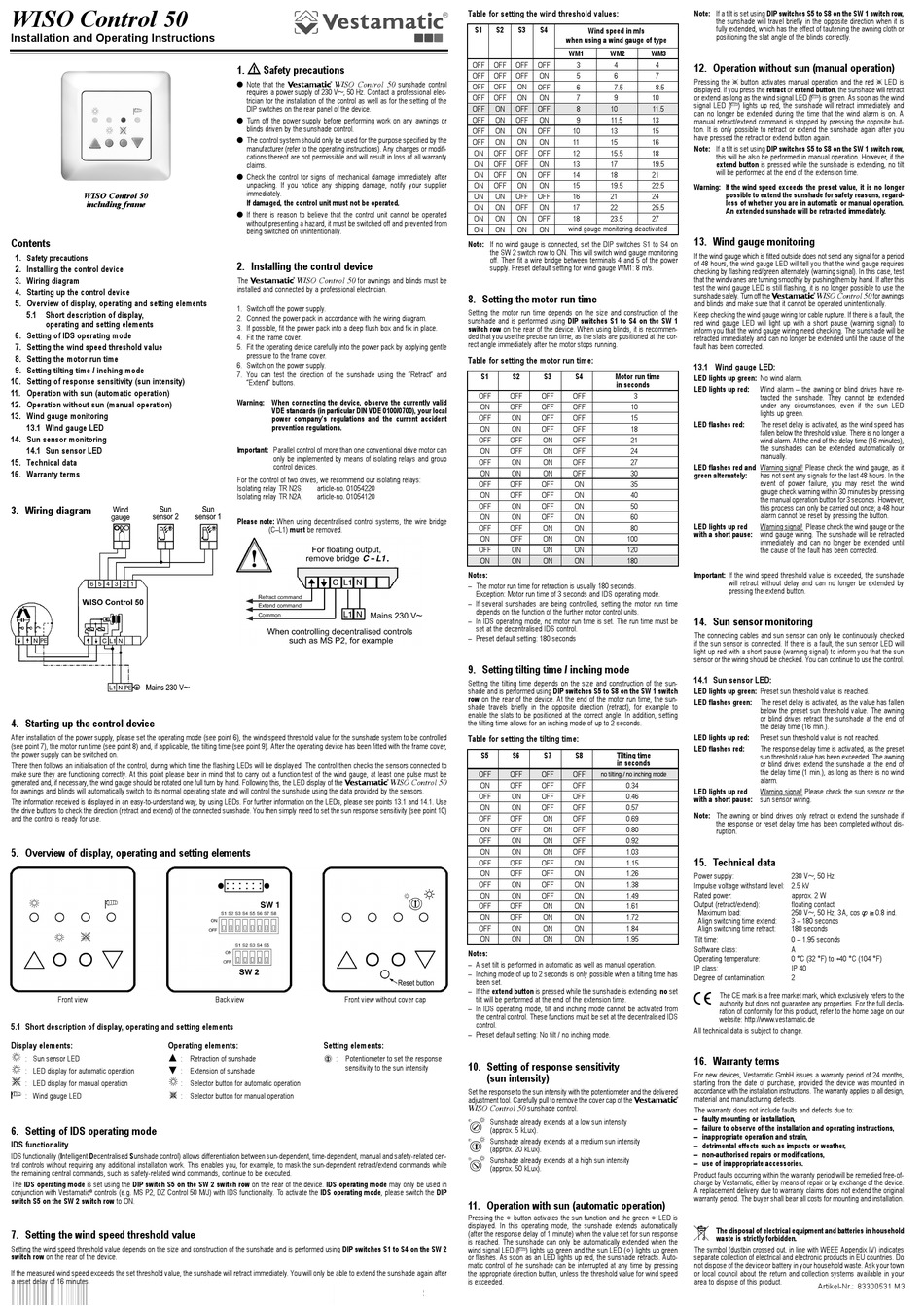

WISO Control 50
Installation and Operating Instructions
WISO Control 50
including frame
Contents
1.
Safety precautions
2. Installing the control device
3. Wiring diagram
4. Starting up the control device
5. Overview of display, operating and setting elements
5.1 Short description of display,
operating and setting elements
6. Setting of IDS operating mode
7. Setting the wind speed threshold value
8. Setting the motor run time
9. Setting tilting time / inching mode
10. Setting of response sensitivity (sun intensity)
11. Operation with sun (automatic operation)
12. Operation without sun (manual operation)
13. Wind gauge monitoring
13.1 Wind gauge LED
14. Sun sensor monitoring
14.1 Sun sensor LED
15. Technical data
16. Warranty terms
3. Wiring diagram
4. Starting up the control device
After installation of the power supply, please set the operating mode (see point 6), the wind speed threshold value for the sunshade system to be controlled
(see point 7), the motor run time (see point 8) and, if applicable, the tilting time (see point 9). After the operating device has been fitted with the frame cover,
the power supply can be switched on.
There then follows an initialisation of the control, during which time the flashing LEDs will be displayed. The control then checks the sensors connected to
make sure they are functioning correctly. At this point please bear in mind that to carry out a function test of the wind gauge, at least one pulse must be
generated and, if necessary, the wind gauge should be rotated one full turn by hand. Following this, the LED display of the Vestamatic WISO Control 50
for awnings and blinds will automatically switch to its normal operating state and will control the sunshade using the data provided by the sensors.
The information received is displayed in an easy-to-understand way, by using LEDs. For further information on the LEDs, please see points 13.1 and 14.1. Use
the drive buttons to check the direction (retract and extend) of the connected sunshade. You then simply need to set the sun response sensitivity (see point 10)
and the control is ready for use.
5. Overview of display, operating and setting elements
Front view
5.1 Short description of display, operating and setting elements
Display elements:
Operating elements:
S
: Sun sensor LED
: Retraction of sunshade
Q
S
: LED display for automatic operation
: Extension of sunshade
q
T
S
: LED display for manual operation
: Selector button for automatic operation
T : Selector button for manual operation
w
: Wind gauge LED
6. Setting of IDS operating mode
IDS functionality
IDS functionality (Intelligent Decentralised Sunshade control) allows differentiation between sun-dependent, time-dependent, manual and safety-related cen-
tral controls without requiring any additional installation work. This enables you, for example, to mask the sun-dependent retract/extend commands while
the remaining central commands, such as safety-related wind commands, continue to be executed.
The IDS operating mode is set using the DIP switch S5 on the SW 2 switch row on the rear of the device. IDS operating mode may only be used in
conjunction with Vestamatic
controls (e.g. MS P2, DZ Control 50 M/J) with IDS functionality. To activate the IDS operating mode, please switch the DIP
®
switch S5 on the SW 2 switch row to ON.
7. Setting the wind speed threshold value
Setting the wind speed threshold value depends on the size and construction of the sunshade and is performed using DIP switches S1 to S4 on the SW 2
switch row on the rear of the device.
If the measured wind speed exceeds the set threshold value, the sunshade will retract immediately. You will only be able to extend the sunshade again after
a reset delay of 16 minutes.
1. Ä Safety precautions
· Note that the Vestamatic WISO Control 50 sunshade control
requires a power supply of 230 VW, 50 Hz. Contact a professional elec-
trician for the installation of the control as well as for the setting of the
DIP switches on the rear panel of the device.
· Turn off the power supply before performing work on any awnings or
blinds driven by the sunshade control.
· The control system should only be used for the purpose specified by the
manufacturer (refer to the operating instructions). Any changes or modifi-
cations thereof are not permissible and will result in loss of all warranty
claims.
· Check the control for signs of mechanical damage immediately after
unpacking. If you notice any shipping damage, notify your supplier
immediately.
If damaged, the control unit must not be operated.
· If there is reason to believe that the control unit cannot be operated
without presenting a hazard, it must be switched off and prevented from
being switched on unintentionally.
2. Installing the control device
The Vestamatic WISO Control 50 for awnings and blinds must be
installed and connected by a professional electrician.
1. Switch off the power supply.
2. Connect the power pack in accordance with the wiring diagram.
3. If possible, fit the power pack into a deep flush box and fix in place.
4. Fit the frame cover.
5. Fit the operating device carefully into the power pack by applying gentle
pressure to the frame cover.
6. Switch on the power supply.
7. You can test the direction of the sunshade using the "Retract" and
"Extend" buttons.
Warning: When connecting the device, observe the currently valid
VDE standards (in particular DIN VDE 0100/0700), your local
power company's regulations and the current accident
prevention regulations.
Important: Parallel control of more than one conventional drive motor can
only be implemented by means of isolating relays and group
control devices.
For the control of two drives, we recommend our isolating relays:
Isolating relay TR N2S,
article-no. 01054220
Isolating relay TR N2A,
article-no. 01054120
Please note: When using decentralised control systems, the wire bridge
(C–L1) must be removed.
Back view
Front view without cover cap
Setting elements:
: Potentiometer to set the response
\
sensitivity to the sun intensity
Table for setting the wind threshold values:
S1
S2
S3
S4
Wind speed in m/s
when using a wind gauge of type
WM1
WM2
,0
OFF
OFF
OFF
OFF
3
4
OFF
OFF
OFF
ON
5
6,0
OFF
OFF
ON
OFF
6
7.5
OFF
OFF
ON
ON
7
9,0
OFF
ON
OFF
OFF
8
10,0
OFF
ON
OFF
ON
9
11.5
OFF
ON
ON
OFF
10
13,0
OFF
ON
ON
ON
11
15,0
ON
OFF
OFF
OFF
12
15.5
ON
OFF
OFF
ON
13
17,0
ON
OFF
ON
OFF
14
18,0
ON
OFF
ON
ON
15
19.5
ON
ON
OFF
OFF
16
21,0
ON
ON
OFF
ON
17
22,0
ON
ON
ON
OFF
18
23.5
wind gauge monitoring deactivated
ON
ON
ON
ON
Note: If no wind gauge is connected, set the DIP switches S1 to S4 on
the SW 2 switch row to ON. This will switch wind gauge monitoring
off. Then fit a wire bridge between terminals 4 and 5 of the power
supply. Preset default setting for wind gauge WM1: 8 m/s.
8. Setting the motor run time
Setting the motor run time depends on the size and construction of the
sunshade and is performed using DIP switches S1 to S4 on the SW 1
switch row on the rear of the device. When using blinds, it is recommen-
ded that you use the precise run time, as the slats are positioned at the cor-
rect angle immediately after the motor stops running.
Table for setting the motor run time:
S1
S2
S3
S4
Motor run time
in seconds
OFF
OFF
OFF
OFF
3
ON
OFF
OFF
OFF
10
OFF
ON
OFF
OFF
15
ON
ON
OFF
OFF
18
OFF
OFF
ON
OFF
21
ON
OFF
ON
OFF
24
OFF
ON
ON
OFF
27
ON
ON
ON
OFF
30
OFF
OFF
OFF
ON
35
ON
OFF
OFF
ON
40
OFF
ON
OFF
ON
50
ON
ON
OFF
ON
60
OFF
OFF
ON
ON
80
ON
OFF
ON
ON
100
OFF
ON
ON
ON
120
ON
ON
ON
ON
180
Notes:
– The motor run time for retraction is usually 180 seconds.
Exception: Motor run time of 3 seconds and IDS operating mode.
– If several sunshades are being controlled, setting the motor run time
depends on the function of the further motor control units.
– In IDS operating mode, no motor run time is set. The run time must be
set at the decentralised IDS control.
– Preset default setting: 180 seconds
9. Setting tilting time / inching mode
Setting the tilting time depends on the size and construction of the sun-
shade and is performed using DIP switches S5 to S8 on the SW 1 switch
row on the rear of the device. At the end of the motor run time, the sun-
shade travels briefly in the opposite direction (retract), for example to
enable the slats to be positioned at the correct angle. In addition, setting
the tilting time allows for an inching mode of up to 2 seconds.
Table for setting the tilting time:
S5
S6
S7
S8
Tilting time
in seconds
OFF
OFF
OFF
OFF
no tilting / no inching mode
ON
OFF
OFF
OFF
0.34
OFF
ON
OFF
OFF
0.46
ON
ON
OFF
OFF
0.57
OFF
OFF
ON
OFF
0.69
ON
OFF
ON
OFF
0.80
OFF
ON
ON
OFF
0.92
ON
ON
ON
OFF
1.03
OFF
OFF
OFF
ON
1.15
ON
OFF
OFF
ON
1.26
OFF
ON
OFF
ON
1.38
ON
ON
OFF
ON
1.49
OFF
OFF
ON
ON
1.61
ON
OFF
ON
ON
1.72
OFF
ON
ON
ON
1.84
ON
ON
ON
ON
1.95
Notes:
– A set tilt is performed in automatic as well as manual operation.
– Inching mode of up to 2 seconds is only possible when a tilting time has
been set.
– If the extend button is pressed while the sunshade is extending, no set
tilt will be performed at the end of the extension time.
– In IDS operating mode, tilt and inching mode cannot be activated from
the central control. These functions must be set at the decentralised IDS
control.
– Preset default setting: No tilt / no inching mode.
10. Setting of response sensitivity
(sun intensity)
Set the response to the sun intensity with the potentiometer and the delivered
adjustment tool. Carefully pull to remove the cover cap of the Vestamatic
WISO Control 50 sunshade control.
Sunshade already extends at a low sun intensity
{
(approx. 5 kLux).
Sunshade already extends at a medium sun intensity
|
(approx. 20 kLux).
Sunshade already extends at a high sun intensity
}
(approx. 50 kLux).
11. Operation with sun (automatic operation)
Pressing the S button activates the sun function and the green S LED is
displayed. In this operating mode, the sunshade extends automatically
(after the response delay of 1 minute) when the value set for sun response
is reached. The sunshade can only be automatically extended when the
wind signal LED (w) lights up green and the sun LED (S) lights up green
or flashes. As soon as an LED lights up red, the sunshade retracts. Auto-
matic control of the sunshade can be interrupted at any time by pressing
the appropriate direction button, unless the threshold value for wind speed
is exceeded.
Note: If a tilt is set using DIP switches S5 to S8 on the SW 1 switch row,
the sunshade will travel briefly in the opposite direction when it is
fully extended, which has the effect of tautening the awning cloth or
positioning the slat angle of the blinds correctly.
WM3
,0
4
12. Operation without sun (manual operation)
7,0
Pressing the # S button activates manual operation and the red # S LED is
8.5
displayed. If you press the retract or extend button, the sunshade will retract
10,0
or extend as long as the wind signal LED (w) is green. As soon as the wind
signal LED (w) lights up red, the sunshade will retract immediately and
11.5
can no longer be extended during the time that the wind alarm is on. A
13,0
manual retract/extend command is stopped by pressing the opposite but-
ton. It is only possible to retract or extend the sunshade again after you
15,0
have pressed the retract or extend button again.
16,0
Note: If a tilt is set using DIP switches S5 to S8 on the SW 1 switch row,
18,0
this will be also be performed in manual operation. However, if the
19.5
extend button is pressed while the sunshade is extending, no tilt
will be performed at the end of the extension time.
21,0
22.5
Warning: If the wind speed exceeds the preset value, it is no longer
possible to extend the sunshade for safety reasons, regard-
24,0
less of whether you are in automatic or manual operation.
25.5
An extended sunshade will be retracted immediately.
27,0
13. Wind gauge monitoring
If the wind gauge which is fitted outside does not send any signal for a period
of 48 hours, the wind gauge LED will tell you that the wind gauge requires
checking by flashing red/green alternately (warning signal). In this case, test
that the wind vanes are turning smoothly by pushing them by hand. If after this
test the wind gauge LED is still flashing, it is no longer possible to use the
sunshade safely. Turn off the Vestamatic WISO Control 50 for awnings
and blinds and make sure that it cannot be operated unintentionally.
Keep checking the wind gauge wiring for cable rupture. If there is a fault, the
red wind gauge LED will light up with a short pause (warning signal) to
inform you that the wind gauge wiring need checking. The sunshade will be
retracted immediately and can no longer be extended until the cause of the
fault has been corrected.
13.1 Wind gauge LED:
LED lights up green: No wind alarm.
LED lights up red:
Wind alarm – the awning or blind drives have re-
tracted the sunshade. They cannot be extended
under any circumstances, even if the sun LED
lights up green.
LED flashes red:
The reset delay is activated, as the wind speed has
fallen below the threshold value. There is no longer a
wind alarm. At the end of the delay time (16 minutes),
the sunshades can be extended automatically or
manually.
LED flashes red and Warning signal! Please check the wind gauge, as it
green alternately:
has not sent any signals for the last 48 hours. In the
event of power failure, you may reset the wind
gauge check warning within 30 minutes by pressing
the manual operation button for 3 seconds. However,
this process can only be carried out once; a 48 hour
alarm cannot be reset by pressing the button.
LED lights up red
Warning signal! Please check the wind gauge or the
with a short pause: wind gauge wiring. The sunshade will be retracted
immediately and can no longer be extended until
the cause of the fault has been corrected.
Important: If the wind speed threshold value is exceeded, the sunshade
will retract without delay and can no longer be extended by
pressing the extend button.
14. Sun sensor monitoring
The connecting cables and sun sensor can only be continuously checked
if the sun sensor is connected. If there is a fault, the sun sensor LED will
light up red with a short pause (warning signal) to inform you that the sun
sensor or the wiring should be checked. You can continue to use the control.
14.1 Sun sensor LED:
LED lights up green: Preset sun threshold value is reached.
LED flashes green: The reset delay is activated, as the value has fallen
below the preset sun threshold value. The awning
or blind drives retract the sunshade at the end of
the delay time (16 min.).
LED lights up red:
Preset sun threshold value is not reached.
LED flashes red:
The response delay time is activated, as the preset
sun threshold value has been exceeded. The awning
or blind drives extend the sunshade at the end of
the delay time (1 min.), as long as there is no wind
alarm.
LED lights up red
Warning signal! Please check the sun sensor or the
with a short pause: sun sensor wiring.
Note: The awning or blind drives only retract or extend the sunshade if
the response or reset delay time has been completed without dis-
ruption.
15. Technical data
Power supply:
230 VW, 50 Hz
Impulse voltage withstand level: 2.5 kV
Rated power:
approx. 2 W
Output (retract/extend):
floating contact
Maximum load:
250 VW, 50 Hz, 3A, cos f > 0.8 ind.
Align switching time extend:
3 – 180 seconds
Align switching time retract:
180 seconds
Tilt time:
0 – 1.95 seconds
Software class:
A
Operating temperature:
0 °C (32 °F) to +40 °C (104 °F)
IP class:
IP 40
Degree of contamination:
2
The CE mark is a free market mark, which exclusively refers to the
p
authority but does not guarantee any properties. For the full decla-
ration of conformity for this product, refer to the home page on our
website: http://www.vestamatic.de
All technical data is subject to change.
16. Warranty terms
For new devices, Vestamatic GmbH issues a warranty period of 24 months,
starting from the date of purchase, provided the device was mounted in
accordance with the installation instructions. The warranty applies to all design,
material and manufacturing defects.
The warranty does not include faults and defects due to:
– faulty mounting or installation,
– failure to observe of the installation and operating instructions,
– inappropriate operation and strain,
– detrimental effects such as impacts or weather,
– non-authorised repairs or modifications,
– use of inappropriate accessories.
Product faults occurring within the warranty period will be remedied free-of-
charge by Vestamatic, either by means of repair or by exchange of the device.
A replacement delivery due to warranty claims does not extend the original
warranty period. The buyer shall bear all costs for mounting and installation.
The disposal of electrical equipment and batteries in household
é
waste is strictly forbidden.
The symbol (dustbin crossed out, in line with WEEE Appendix IV) indicates
separate collection of electrical and electronic products in EU countries. Do
not dispose of the device or battery in your household waste. Ask your town
or local council about the return and collection systems available in your
area to dispose of this product.
Artikel-Nr.: 83300531 M3
Werbung
