Control Board - Futurelight COLOR WAVE Bedienungsanleitung

Control Board

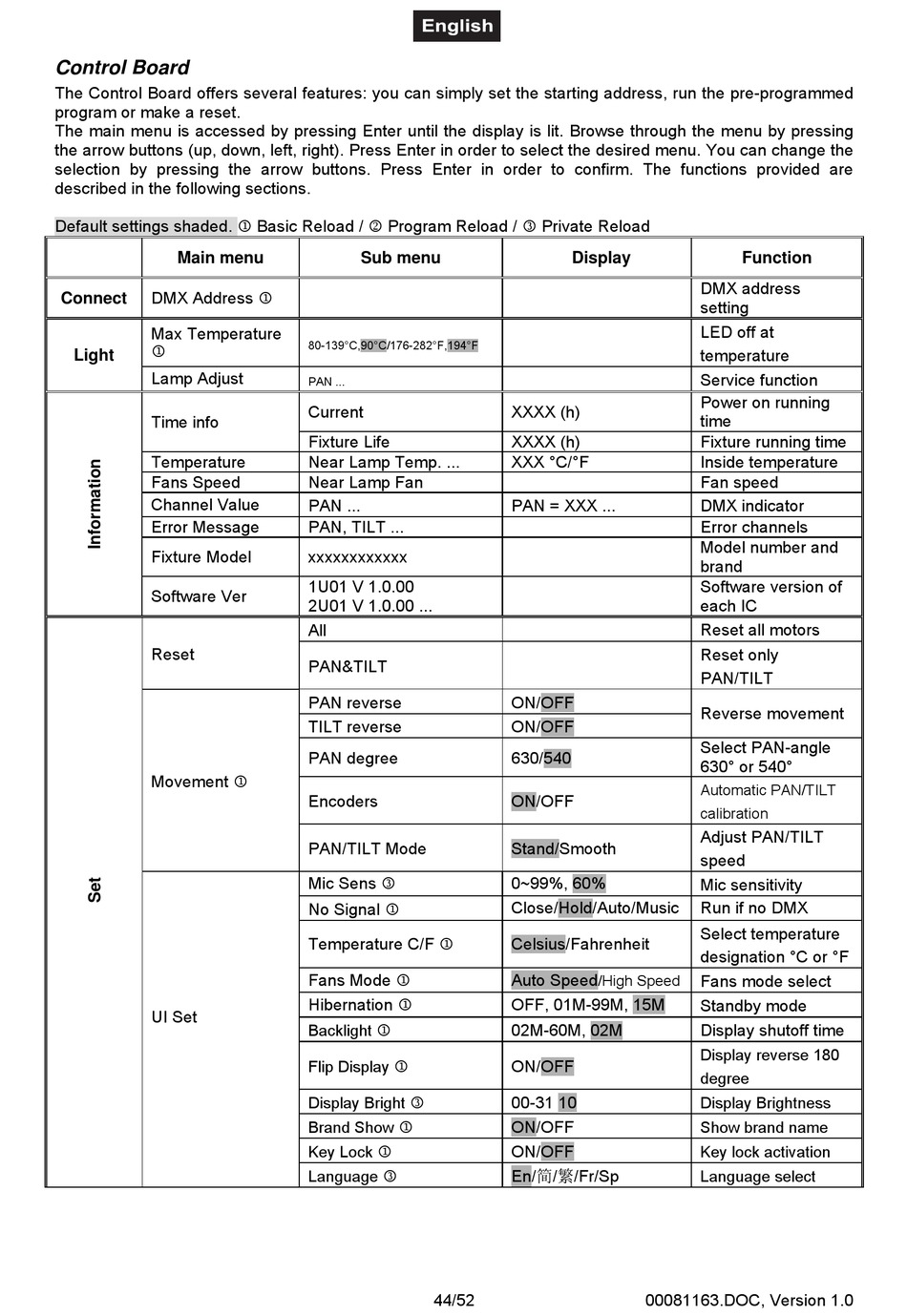

The Control Board offers several features: you can simply set the starting address, run the pre-programmed
program or make a reset.
The main menu is accessed by pressing Enter until the display is lit. Browse through the menu by pressing
the arrow buttons (up, down, left, right). Press Enter in order to select the desired menu. You can change the
selection by pressing the arrow buttons. Press Enter in order to confirm. The functions provided are
described in the following sections.
Default settings shaded.  Basic Reload /  Program Reload /  Private Reload
Main menu
DMX Address 
Connect
Max Temperature

Light
Lamp Adjust
Time info
Temperature
Fans Speed
Channel Value
Error Message
Fixture Model
Software Ver
Reset
Movement 
UI Set
Sub menu
80-139°C,90°C/176-282°F,194°F
PAN ...
Current
Fixture Life
Near Lamp Temp. ...
Near Lamp Fan
PAN ...
PAN, TILT ...
xxxxxxxxxxxx
1U01 V 1.0.00
2U01 V 1.0.00 ...
All
PAN&TILT
PAN reverse
TILT reverse
PAN degree
Encoders
PAN/TILT Mode
Mic Sens 
No Signal 
Temperature C/F 
Fans Mode 
Hibernation 
Backlight 
Flip Display 
Display Bright 
Brand Show

Key Lock 
Language 
44/52
Display
XXXX (h)
XXXX (h)
XXX °C/°F
PAN = XXX ...
ON/OFF
ON/OFF
630/540
ON/OFF
Stand/Smooth
0~99%, 60%
Close/Hold/Auto/Music
Celsius/Fahrenheit
Auto Speed
/High Speed
OFF, 01M-99M, 15M
02M-60M, 02M
ON/OFF
00-31 10
ON/OFF
ON/OFF
En/简/繁/Fr/Sp
00081163.DOC, Version 1.0
Function
DMX address
setting
LED off at
temperature
Service function
Power on running
time
Fixture running time
Inside temperature
Fan speed
DMX indicator
Error channels
Model number and
brand
Software version of
each IC
Reset all motors
Reset only
PAN/TILT
Reverse movement
Select PAN-angle
630° or 540°
Automatic PAN/TILT
calibration
Adjust PAN/TILT
speed
Mic sensitivity
Run if no DMX
Select temperature
designation °C or °F
Fans mode select
Standby mode
Display shutoff time
Display reverse 180
degree
Display Brightness
Show brand name
Key lock activation
Language select
