Users
Calibration 
Fixture ID 
Wireless Set 
Reload Default
Play 
Select Chase 
Edit Chase 
Edit Scenes 
Scenes Record

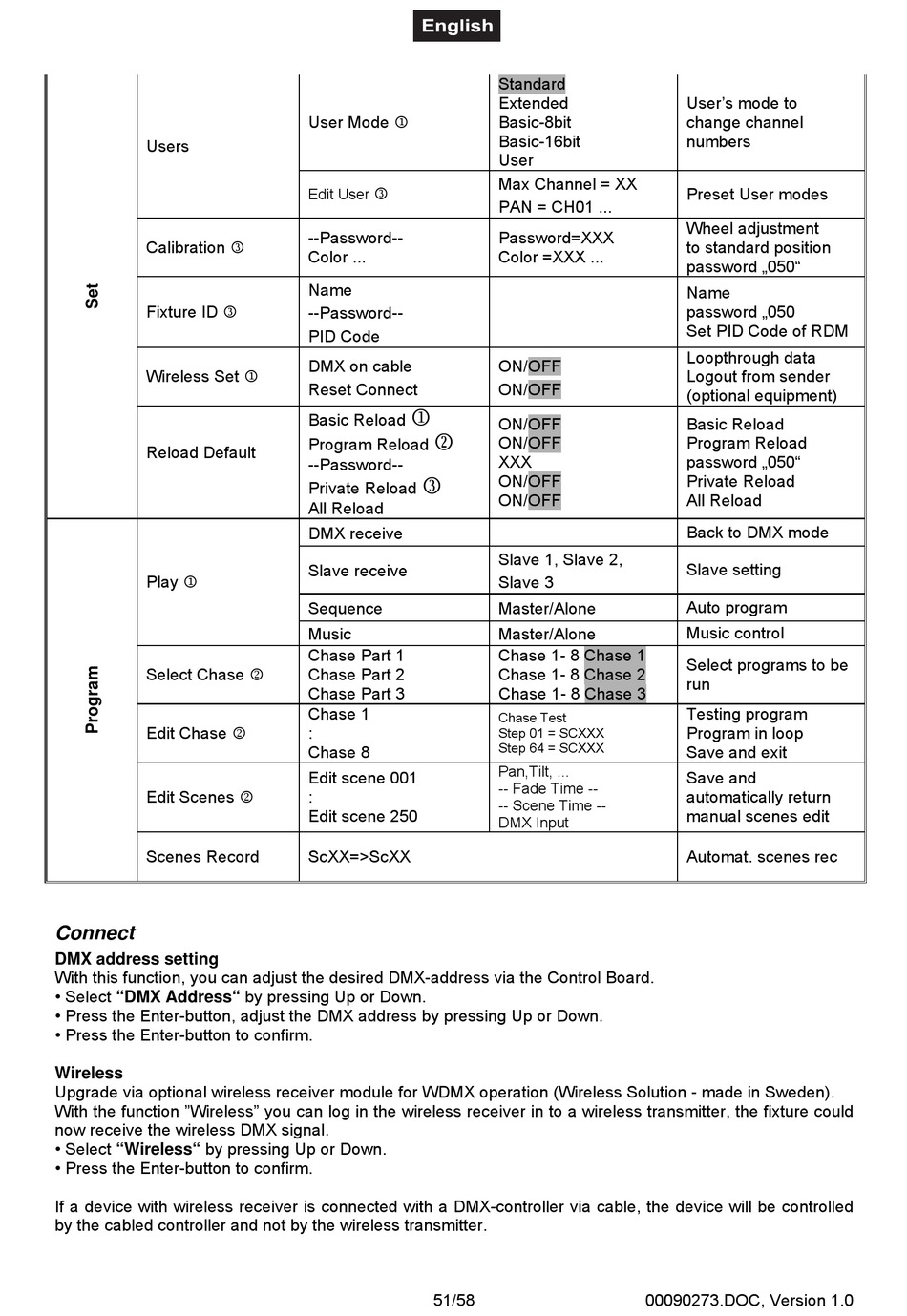

Connect

DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
• Select "DMX Address" by pressing Up or Down.
• Press the Enter-button, adjust the DMX address by pressing Up or Down.
• Press the Enter-button to confirm.
Wireless
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden).
With the function "Wireless" you can log in the wireless receiver in to a wireless transmitter, the fixture could
now receive the wireless DMX signal.
• Select "Wireless" by pressing Up or Down.
• Press the Enter-button to confirm.
If a device with wireless receiver is connected with a DMX-controller via cable, the device will be controlled
by the cabled controller and not by the wireless transmitter.
User Mode 

Edit User
--Password--
Color ...
Name
--Password--
PID Code
DMX on cable
Reset Connect

Basic Reload

Program Reload
--Password--

Private Reload
All Reload
DMX receive
Slave receive
Sequence
Music
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1
:
Chase 8
Edit scene 001
:
Edit scene 250
ScXX=>ScXX
51/58
Standard
Extended
Basic-8bit
Basic-16bit
User
Max Channel = XX
PAN = CH01 ...
Password=XXX
Color =XXX ...
ON/OFF
ON/OFF
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Slave 1, Slave 2,
Slave 3
Master/Alone
Master/Alone
Chase 1- 8 Chase 1
Chase 1- 8 Chase 2
Chase 1- 8 Chase 3
Chase Test
Step 01 = SCXXX
Step 64 = SCXXX
Pan,Tilt, ...
-- Fade Time --
-- Scene Time --
DMX Input
00090273.DOC, Version 1.0
User's mode to
change channel
numbers
Preset User modes
Wheel adjustment
to standard position
password „050"
Name
password „050
Set PID Code of RDM
Loopthrough data
Logout from sender
(optional equipment)
Basic Reload
Program Reload
password „050"
Private Reload
All Reload
Back to DMX mode
Slave setting
Auto program
Music control
Select programs to be
run
Testing program
Program in loop
Save and exit
Save and
automatically return
manual scenes edit
Automat. scenes rec
