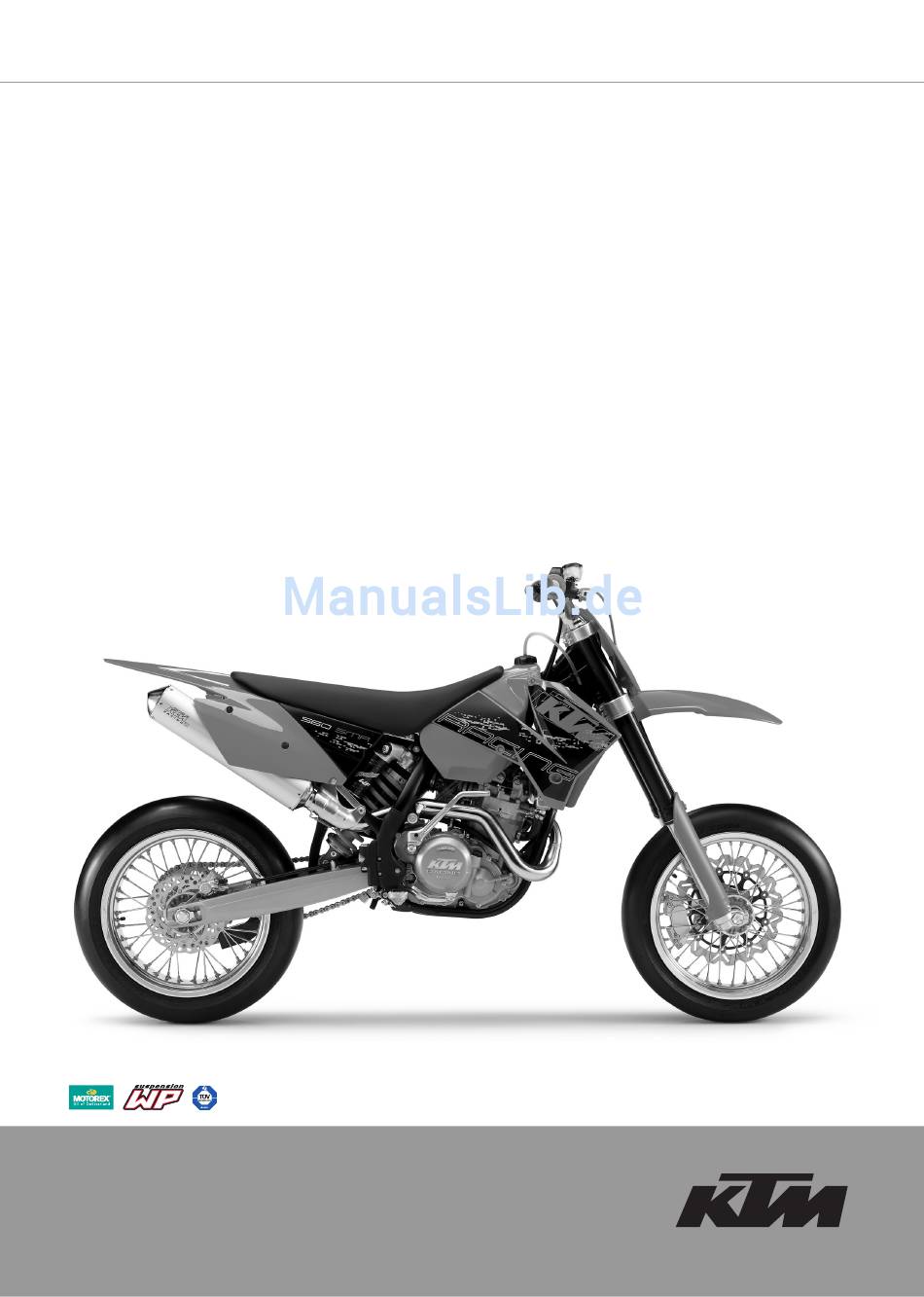

450/560SMR2006 ERGÄNZUNG ART. NR. 3.211.84 ZUR BEDIENUNGSANLEITUNG ART. NR. 3.211.73 SUPPLEMENT ART. NO. 3.211.84 TO OWNER’S MANUAL ART. NR. 3.211.73 KTM Group Partner KTM Sportmotorcycle AG A–5230 Mattighofen www.ktm.at...
» BEDIENUNGSELEMENTE Grundstellung des Handbremshebels einstellen Die Grundstellung des Handbremshebels kann mit der Stellschraube [1] ver- ändert werden. Dadurch kann die Position des Druckpunktes (jener Widerstand, der am Handbremshebel spürbar wird, wenn die Bremsklötze an die Bremsscheibe gepreßt werden) für jede Handgröße eingestellt werden. DER VERSTELLBEREICH IST BEGRENZT.
» TECHNISCHE DATEN - MOTOR MOTOR 450 SMR 560 SMR Bauart 1-Zylinder 4-Takt Otto-Motor mit Ausgleichswelle, flüssigkeitsgekühlt Hubraum 449,39 cm 565,5 cm Bohrung/Hub 95 / 63,4 mm 100 / 72 mm Verdichtung 12 : 1 11 : 1 Kraftstoff bleifreier Superkraftstoff mit mindestens ROZ 95 Steuerung 4 Ventile über Kipphebel u.
Seite 6
» OPERATION INSTRUMENTS Hand brake lever The basic position of the hand brake lever can be modified by turning the adjusting screw [1]. This lets you adapt the position of the pressure point (the resistance you feel on the hand brake lever when the brake pads are pressed against the brake disk) to fit any hand.
Seite 7
» TECHNICAL DATA - CHASSIS CHASSIS 450 SMR 560 SMR Frame Central tube chrome-moly-steel frame Fork WP Up Side Down 4860 PA/MA Wheel travel front/rear 285/310 mm Rear suspension WP Progressive Damping System shock absorber aluminium swing arm Front brake Disk brake with carbon-steel brake disc Ø...
Seite 9
» TECHNICAL DATA - ENGINE TYPE 450 SMR 560 SMR Design Liquid-cooled single cylinder 4-stroke engine with balancer shaft Displacement 449,4 cm 565,5 cm Bore/Stroke 95 / 63.4 mm 100 / 72 mm Ratio 12 : 1 11 : 1 Fuel unleaded fuel with at least RON 95 (USA = Premium RON 91) Valve timing...
