Description
1-2
08.2000
DISPATCHER Transceiver
Node Node
0 1
I O I
Data direction
Node Node
n n-1
Transceiver Transceiver

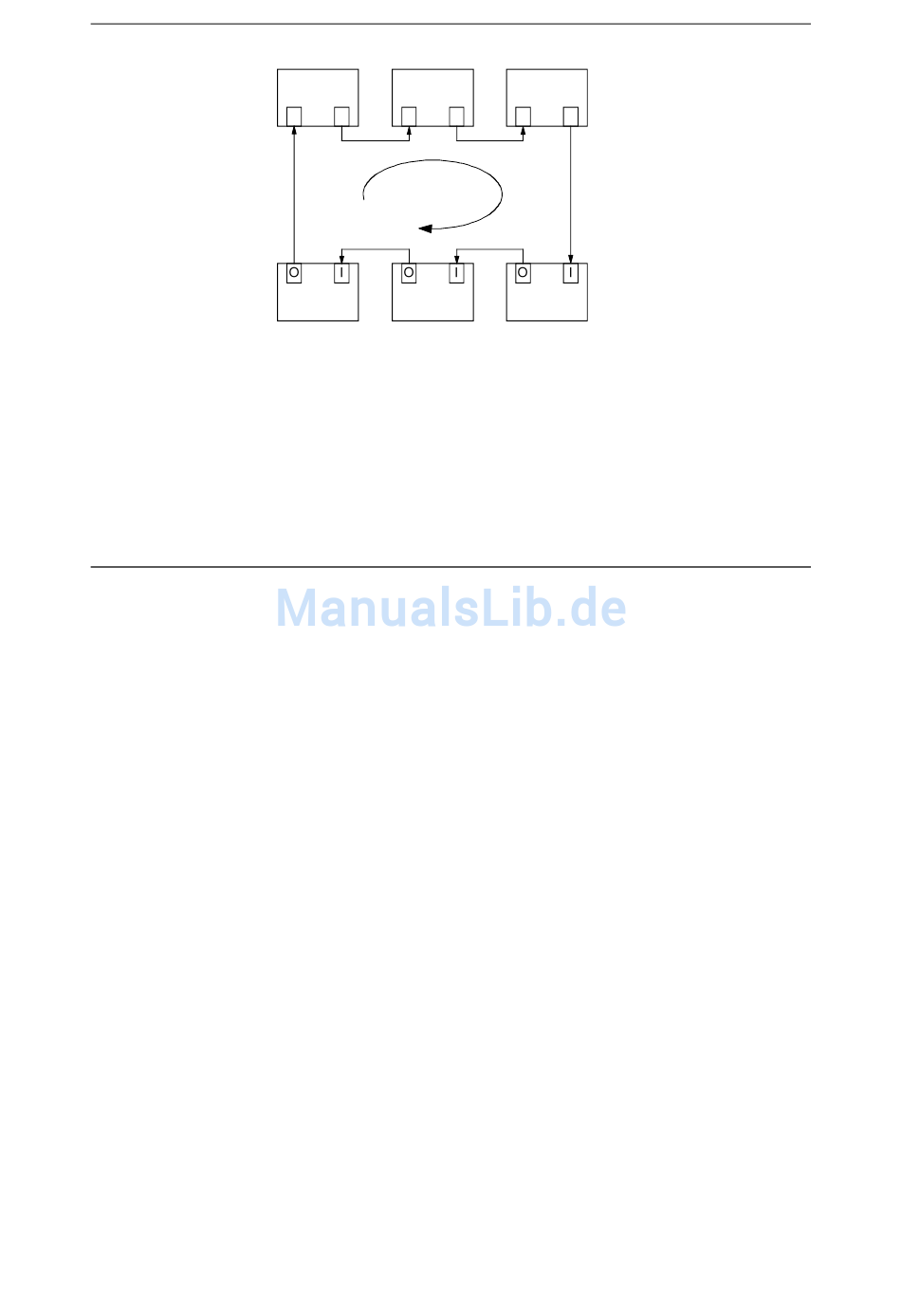

Fig. 1-1 Bus ring structure
Data is transferred between the individual nodes via fiber-optic cables. Plastic
or glass-fiber cables can be used as a transfer medium.
The SLB optional board has a 24 V voltage input for the external voltage
supply of the board. This ensures that data transfer in SIMOLINK is maintained
even with powered-down converter/inverter.
Transceiver
Node
2
O I O
Node
3
Transceiver
6SE7087-6NX84-0FJ0
Operating Instructions
SLB - SIMOLINK Board
