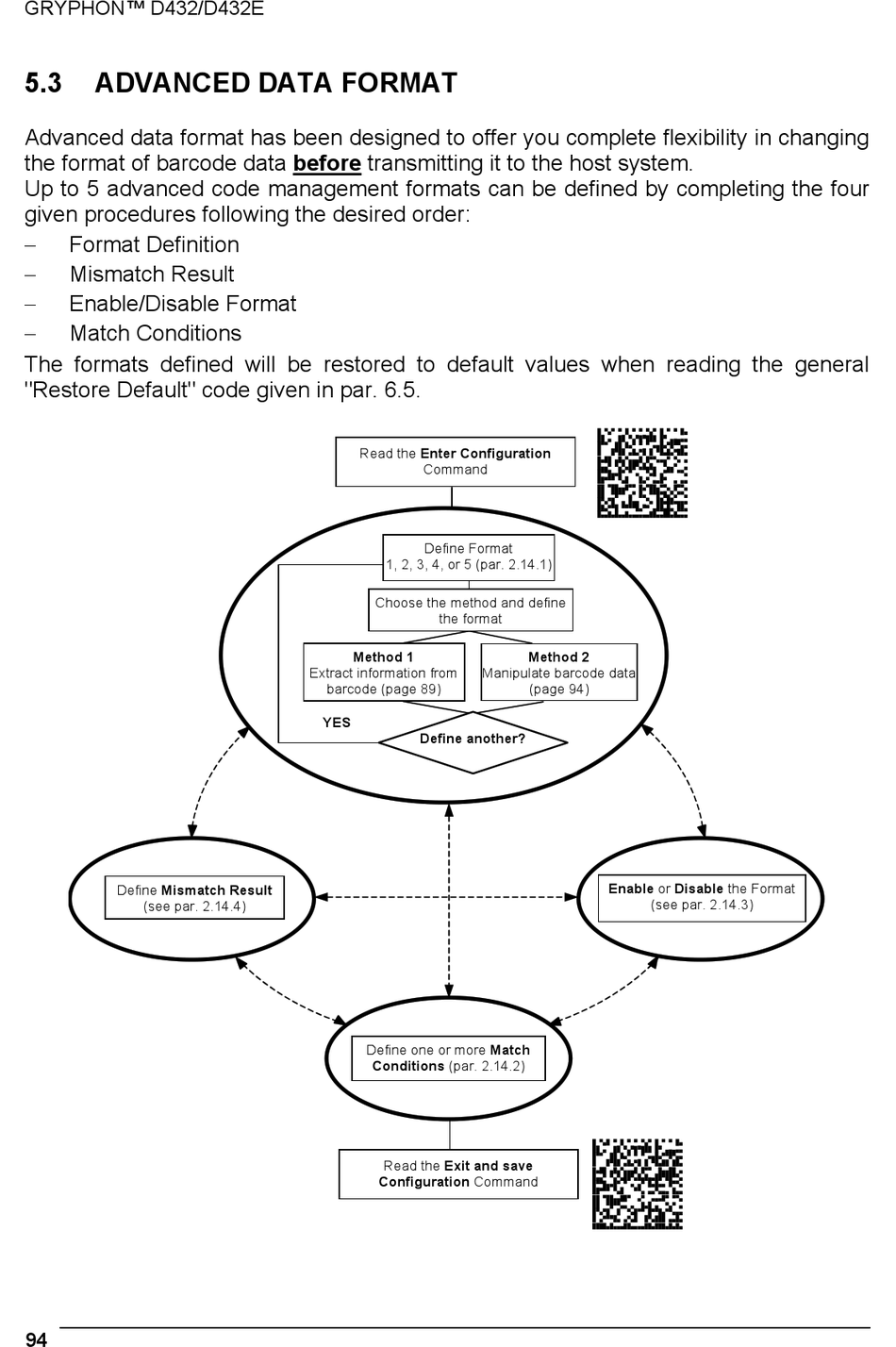

GRYPHON™ D432/D432E
5.3

ADVANCED DATA FORMAT

Advanced data format has been designed to offer you complete flexibility in changing
the format of barcode data before transmitting it to the host system.
Up to 5 advanced code management formats can be defined by completing the four
given procedures following the desired order:
−
Format Definition
−
Mismatch Result
−
Enable/Disable Format
−
Match Conditions
The formats defined will be restored to default values when reading the general
"Restore Default" code given in par. 6.5.
Define Mismatch Result
(see par. 2.14.4)
94
Read the Enter Configuration
Command
Define Format
1, 2, 3, 4, or 5 (par. 2.14.1)
Choose the method and define
the format
Method 1
Extract information from
barcode (page 89)
YES
Define another?
Define one or more Match
Conditions (par. 2.14.2)
Read the Exit and save
Configuration Command
