WARNING! Do not open or disassemble the Inverter. Attempting to service the unit
yourself may cause the risk of electrical shock or fire. Please follow the safety
instructions when working on the device.

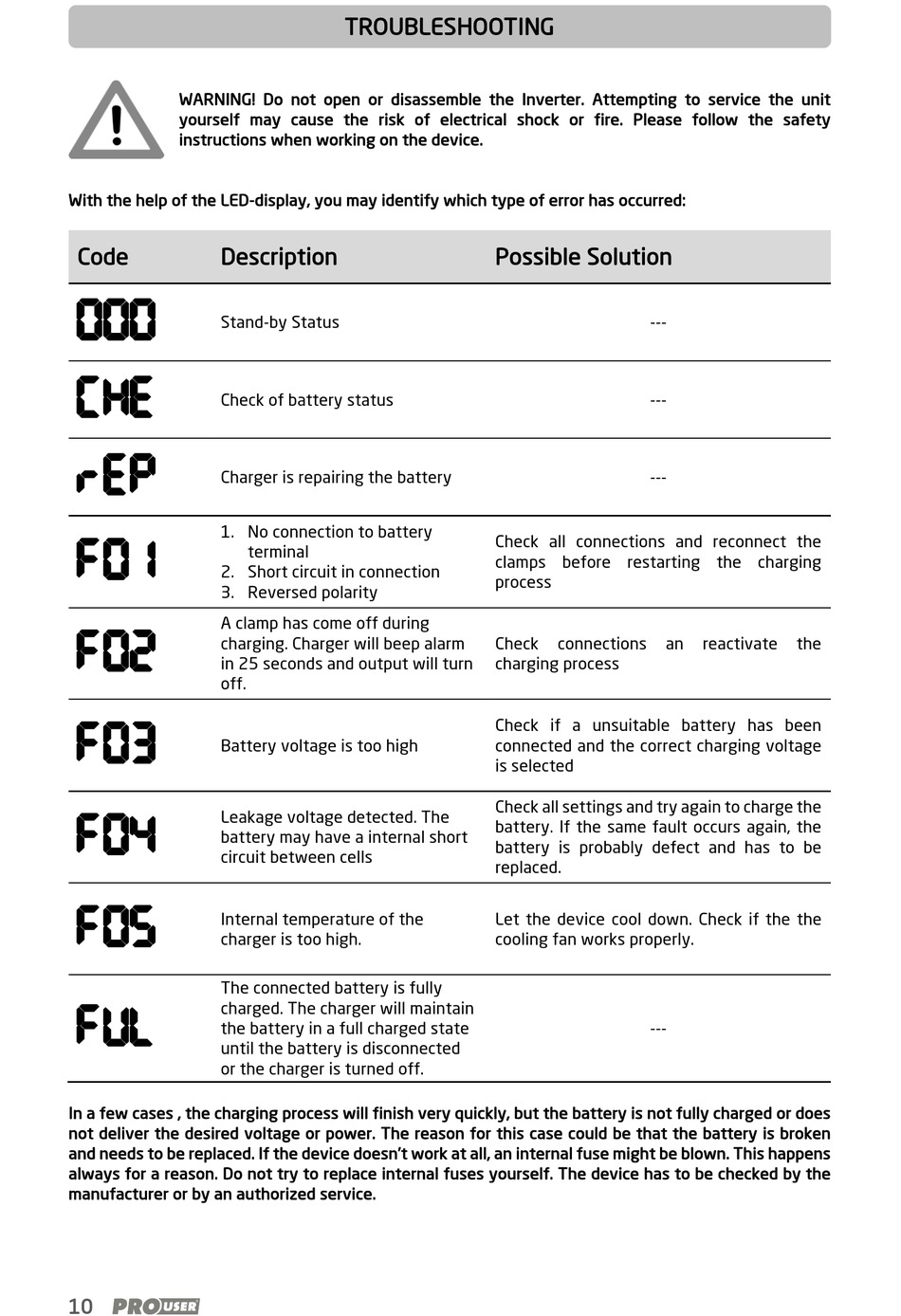

With the help of the LED-display, you may identify which type of error has occurred:
Code Description
000
Stand-by Status
CHE
Check of battery status
REP
Charger is repairing the battery
1. No connection to battery
F01
2. Short circuit in connection
3. Reversed polarity
A clamp has come off during
F02
charging. Charger will beep alarm
in 25 seconds and output will turn
off.
F03
Battery voltage is too high
Leakage voltage detected. The
F04
battery may have a internal short
circuit between cells
F05
Internal temperature of the
charger is too high.
The connected battery is fully
charged. The charger will maintain
FUL
the battery in a full charged state
until the battery is disconnected
or the charger is turned off.
In a few cases , the charging process will finish very quickly, but the battery is not fully charged or does
not deliver the desired voltage or power. The reason for this case could be that the battery is broken
and needs to be replaced. If the device doesn't work at all, an internal fuse might be blown. This happens
always for a reason. Do not try to replace internal fuses yourself. The device has to be checked by the
manufacturer or by an authorized service.
10

TROUBLESHOOTING

terminal
Possible Solution
---
---
---
Check all connections and reconnect the
clamps before restarting the charging
process
Check connections
charging process
Check if a unsuitable battery has been
connected and the correct charging voltage
is selected
Check all settings and try again to charge the
battery. If the same fault occurs again, the
battery is probably defect and has to be
replaced.
Let the device cool down. Check if the the
cooling fan works properly.
---
an reactivate the
