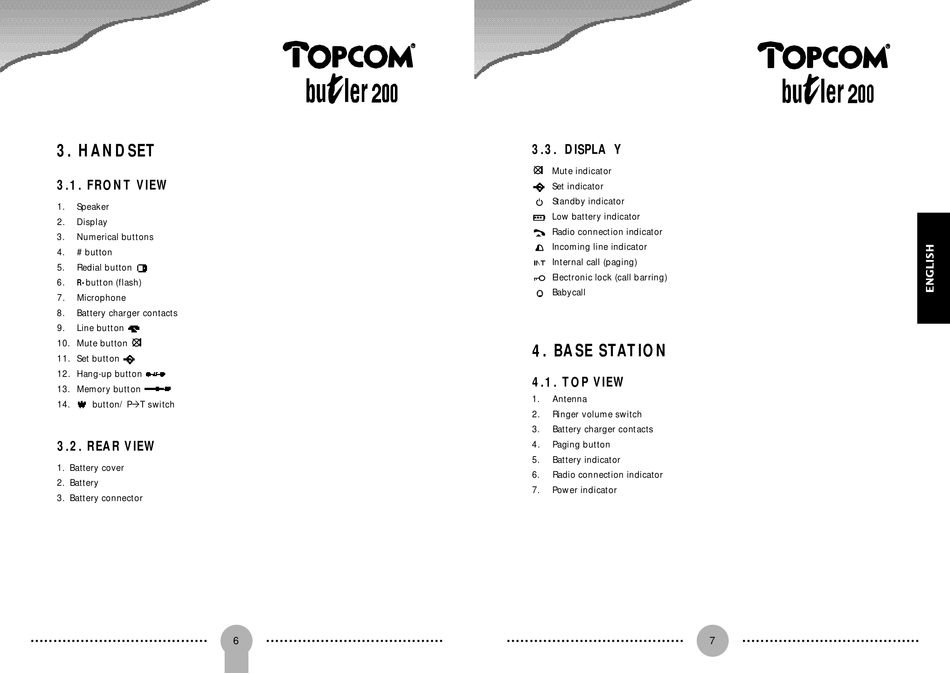

3. HANDSET

3.1. FRONT VIEW

1. S p e a k e r
2 .

Display

3 . Numerical buttons
4. # button
5. Redial button
6. R - button (flash)
7 . M i c r o p h o n e
8. Battery charger contacts
9 . Line button
10. Mute button
11. Set button
12. Hang-up button
13. Memory button
14. button/ PàT switch

3.2. REAR VIEW

1. Battery cover
2. B a t t e r y
3 . Battery connector
6
3.3. D I S P L A Y
Mute indicator
Set indicator
Standby indicator
Low battery indicator
Radio connection indicator
Incoming line indicator
Internal call (paging)
Electronic lock (call barring)
Babycall

4. BASE STATION

4.1. TOP VIEW

1. A n t e n n a
2 . Ringer volume switch
3. Battery charger contacts
4. Paging button
5. Battery indicator
6. Radio connection indicator
7. Power indicator
