Installation

2.1

Flush mounting

2.1.1

Selecting the mounting site

2.1.2 Installation
8
Siemens Building Technologies
Fire Safety & Security Products
The unit should be installed on as even a surface as possible.
1. Remove the top section of the housing from the bottom section.
2. Connect the cable to the terminal strip of the reader (top section of housing).
See chapter „3.1 Connecting the reader"
Do not mount the unit to the wall before you have checked the set-up works
correctly.
3. Screw the bottom section of the housing, onto the flash mounting box. Using
the 3 x 16 mm self-tapping screws.
4. Plug the top section of the housing onto the bottom section of the housing.
5. Screw in the safety screw on the underneath of the bottom section of the
housing.
NOTE
The maximum torque of the safety screw is 1,5 Nm.

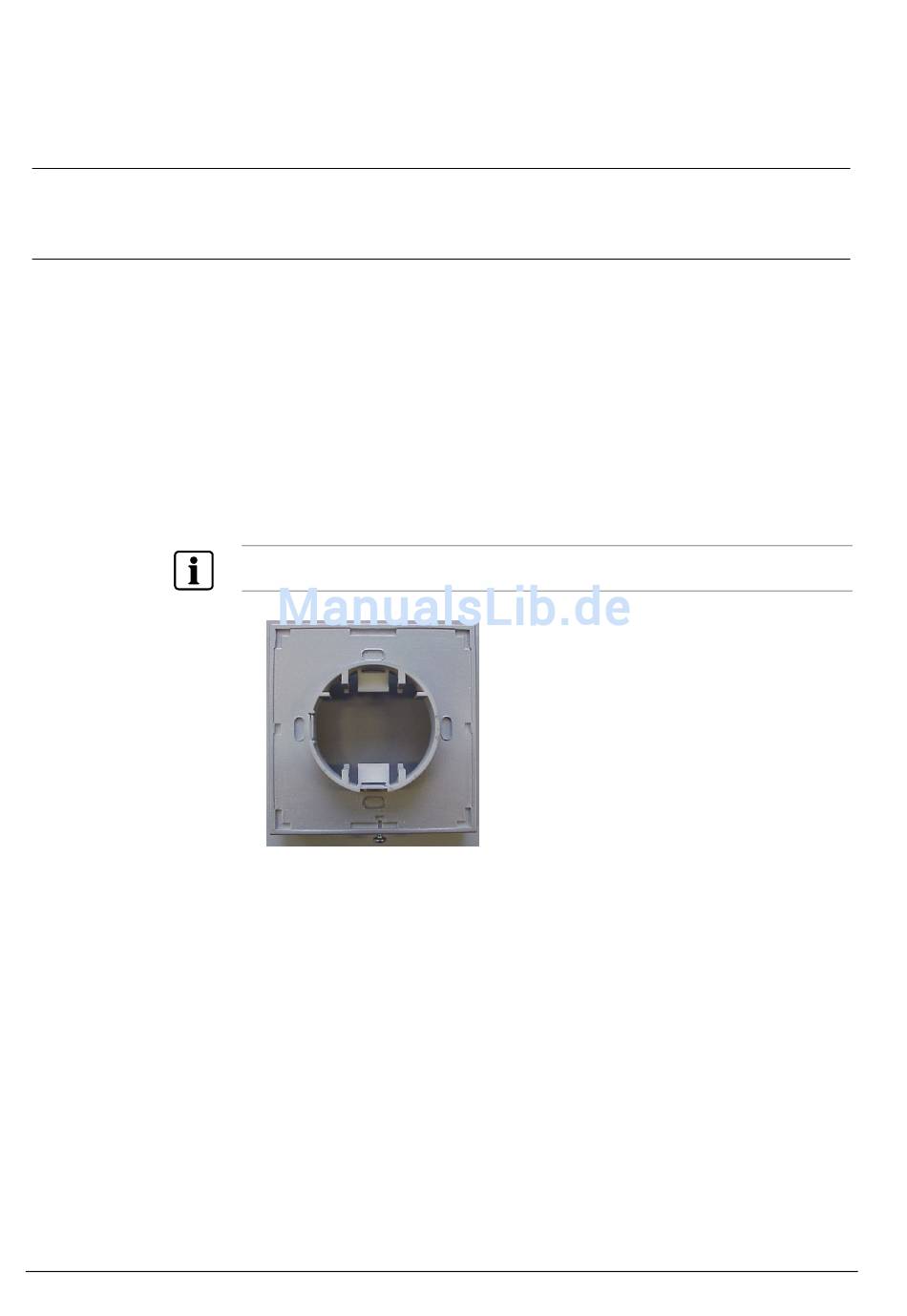

Fig. 2 Back view of the bottom section of the housing
