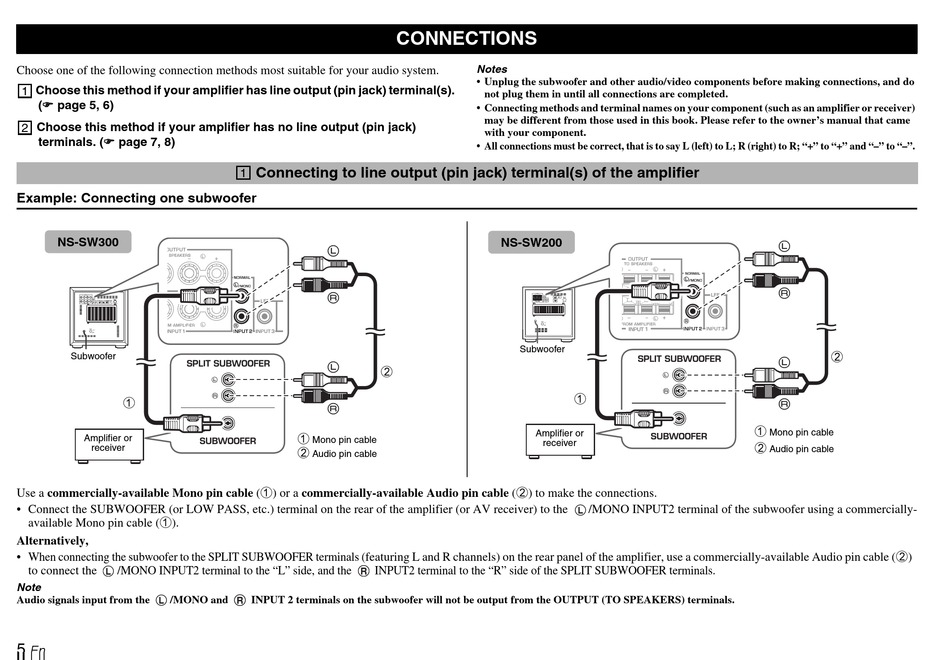

Connections; Connecting To Line Output (Pin Jack) Terminal(S) Of The Amplifier - Yamaha NS-SW200 Bedienungsanleitung

Choose one of the following connection methods most suitable for your audio system.
Choose this method if your amplifier has line output (pin jack) terminal(s).
1
( page 5, 6)
2 Choose this method if your amplifier has no line output (pin jack)
terminals. ( page 7, 8)
Example: Connecting one subwoofer
NS-SW300
Subwoofer
1
Amplifier or
receiver
Use a commercially-available Mono pin cable (1) or a commercially-available Audio pin cable (2) to make the connections.
• Connect the SUBWOOFER (or LOW PASS, etc.) terminal on the rear of the amplifier (or AV receiver) to the
available Mono pin cable (1).
Alternatively,
• When connecting the subwoofer to the SPLIT SUBWOOFER terminals (featuring L and R channels) on the rear panel of the amplifier, use a commercially-available Audio pin cable (2)
to connect the /MONO INPUT2 terminal to the "L" side, and the
Note
Audio signals input from the /MONO and
5 En

CONNECTIONS

Connecting to line output (pin jack) terminal(s) of the amplifier

1
2
1
Mono pin cable
2
Audio pin cable
INPUT2 terminal to the "R" side of the SPLIT SUBWOOFER terminals.
INPUT 2 terminals on the subwoofer will not be output from the OUTPUT (TO SPEAKERS) terminals.
Notes
• Unplug the subwoofer and other audio/video components before making connections, and do
not plug them in until all connections are completed.
• Connecting methods and terminal names on your component (such as an amplifier or receiver)
may be different from those used in this book. Please refer to the owner's manual that came
with your component.
• All connections must be correct, that is to say L (left) to L; R (right) to R; "+" to "+" and "–" to "–".
NS-SW200
Subwoofer
1
Amplifier or
receiver
/MONO INPUT2 terminal of the subwoofer using a commercially-
2
1
Mono pin cable
2
Audio pin cable
