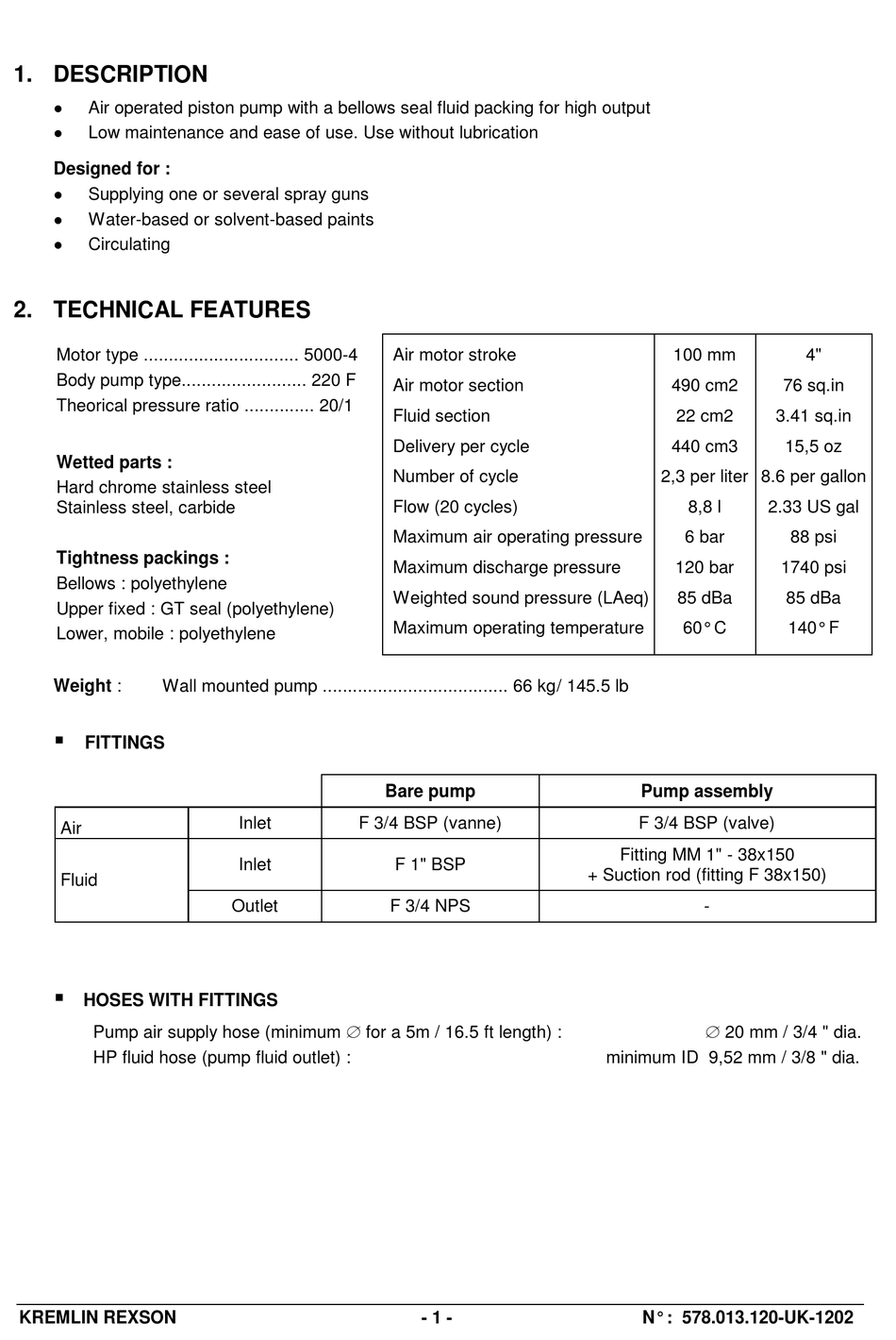

1. DESCRIPTION
Air operated piston pump with a bellows seal fluid packing for high output
Low maintenance and ease of use. Use without lubrication
Designed for :
Supplying one or several spray guns
Water-based or solvent-based paints
Circulating
2. TECHNICAL FEATURES
Motor type ............................... 5000-4
Body pump type......................... 220 F
Theorical pressure ratio .............. 20/1
Wetted parts :
Hard chrome stainless steel
Stainless steel, carbide
Tightness packings :
Bellows : polyethylene
Upper fixed : GT seal (polyethylene)
Lower, mobile : polyethylene
Weight :
Wall mounted pump ..................................... 66 kg/ 145.5 lb
FITTINGS
Air
Fluid
HOSES WITH FITTINGS
Pump air supply hose (minimum for a 5m / 16.5 ft length) :
HP fluid hose (pump fluid outlet) :
KREMLIN REXSON
Air motor stroke
Air motor section
Fluid section
Delivery per cycle
Number of cycle
Flow (20 cycles)
Maximum air operating pressure
Maximum discharge pressure
Weighted sound pressure (LAeq)
Maximum operating temperature
Bare pump
Inlet
F 3/4 BSP (vanne)
Inlet
F 1" BSP
Outlet
F 3/4 NPS
+ Suction rod (fitting F 38x150)
- 1 -
100 mm
490 cm2
22 cm2
440 cm3
2,3 per liter
8.6 per gallon
8,8 l
2.33 US gal
6 bar
120 bar
85 dBa
60° C
Pump assembly
F 3/4 BSP (valve)
Fitting MM 1" - 38x150
-
20 mm / 3/4 " dia.
minimum ID 9,52 mm / 3/8 " dia.
N° : 578.013.120-UK-1202
4"
76 sq.in
3.41 sq.in
15,5 oz
88 psi
1740 psi
85 dBa
140° F
