Kremlin-Rexson FLOWMAX 08-120 F Betriebsanleitung
  1. Anleitungen
  2. Marken
  3. Kremlin-Rexson Anleitungen
  4. Pumpen
  5. FLOWMAX 08-120 F
  6. Betriebsanleitung

Kremlin-Rexson FLOWMAX 08-120 F Betriebsanleitung

Vorschau ausblenden Andere Handbücher für FLOWMAX 08-120 F:
Inhaltsverzeichnis

Werbung

Quicklinks

Diese Anleitung herunterladen

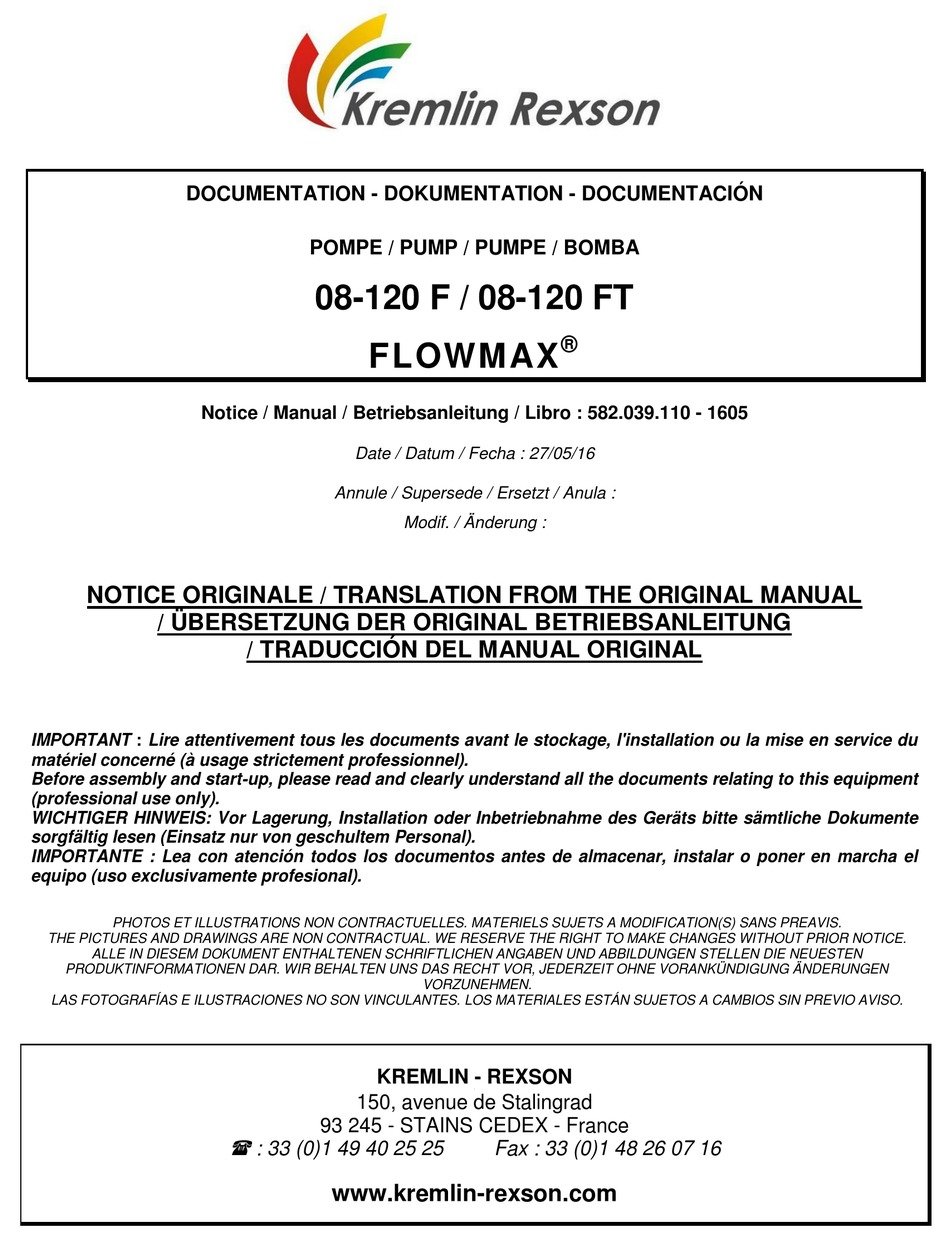

DOCUMENTATION - DOKUMENTATION - DOCUMENTACIÓN
POMPE / PUMP / PUMPE / BOMBA
08-120 F / 08-120 FT
®
FLOWMAX
Notice / Manual / Betriebsanleitung / Libro : 582.039.110 - 1605
Date / Datum / Fecha : 27/05/16
Annule / Supersede / Ersetzt / Anula :
Modif. / Änderung :
NOTICE ORIGINALE / TRANSLATION FROM THE ORIGINAL MANUAL
/ ÜBERSETZUNG DER ORIGINAL BETRIEBSANLEITUNG
/ TRADUCCIÓN DEL MANUAL ORIGINAL
IMPORTANT : Lire attentivement tous les documents avant le stockage, l'installation ou la mise en service du
matériel concerné (à usage strictement professionnel).
Before assembly and start-up, please read and clearly understand all the documents relating to this equipment
(professional use only).
WICHTIGER HINWEIS: Vor Lagerung, Installation oder Inbetriebnahme des Geräts bitte sämtliche Dokumente
sorgfältig lesen (Einsatz nur von geschultem Personal).
IMPORTANTE : Lea con atención todos los documentos antes de almacenar, instalar o poner en marcha el
equipo (uso exclusivamente profesional).
PHOTOS ET ILLUSTRATIONS NON CONTRACTUELLES. MATERIELS SUJETS A MODIFICATION(S) SANS PREAVIS.
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
ALLE IN DIESEM DOKUMENT ENTHALTENEN SCHRIFTLICHEN ANGABEN UND ABBILDUNGEN STELLEN DIE NEUESTEN
PRODUKTINFORMATIONEN DAR. WIR BEHALTEN UNS DAS RECHT VOR, JEDERZEIT OHNE VORANKÜNDIGUNG ÄNDERUNGEN
VORZUNEHMEN.
LAS FOTOGRAFÍAS E ILUSTRACIONES NO SON VINCULANTES. LOS MATERIALES ESTÁN SUJETOS A CAMBIOS SIN PREVIO AVISO.
KREMLIN - REXSON
l
150, avenue de Stalingrad
93 245 - STAINS CEDEX - France
: 33 (0)1 49 40 25 25
Fax : 33 (0)1 48 26 07 16
www.kremlin-rexson.com

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Kremlin-Rexson FLOWMAX 08-120 F

Inhaltszusammenfassung für Kremlin-Rexson FLOWMAX 08-120 F

  • Seite 1 LAS FOTOGRAFÍAS E ILUSTRACIONES NO SON VINCULANTES. LOS MATERIALES ESTÁN SUJETOS A CAMBIOS SIN PREVIO AVISO. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX - France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com...

  • Seite 2: Installation And Safety Instructions

    THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RES ERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.001.130-UK-1103...

  • Seite 3: General Safety Instructions

    1. SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS CAUTION : The equipment can be dangerous if you do not follow our instructions concerning installation and servicing described in this manual and in accordance with applicable European standards and local national safety regulations. Please carefully read all the instruction literature before operating your equipment.
  • Seite 4 FIRE - EXPLOSION - SPARKS - STATIC ELECTRICITY HAZARDS A poor earth connection, inadequate ventilation, sparks or static electricity can cause an explosion or fire. to avoid these risks when using or servicing KREMLIN REXSON equi pment, the following safety procedures must be followed : ...

  • Seite 5: Equipment Requirements

    EQUIPMENT REQUIREMENTS Guards (motor cover, coupling shields, connectors,…) have been designed for a safe use of the equipment. The manufacturer will not be held responsible for bodily injury or failure and / or property damage due to destruction, the overshadowing or the partial or total removal of the guards.

  • Seite 6: Installation Of The Equipment

    2. HANDLING  Check the weight and the dimensions of the equipment (  refer to 'Technical features' section of the instruction manual If weight and dimensions are too important, the unloading must be carried out by means of a forklift or any other appropriate means with a qualified personnal and in a clear horizontal area to prevent from risks of damage injury or an accident.
  • Seite 7  Never store more than necessary inflammable materials inside the working area,  The materials must be stored into approved drums and grounded,  Use only grounded metals containers for the use of cleaning solvents,  Cardboard and paper are prohibited. 5.
  • Seite 8  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 1604 578.023.130 www.kremlin-rexson.com Pour une utilisation sure, Il est de votre responsabilité To ensure safe use of the machinery, it is your Eine sichere Nutzung setzt voraus, dass Sie: : ...
  • Seite 9 VALABLE JUSQU’AU 19 AVRIL 2016 DECLARATION CE DE CONFORMITE VALID UNTIL 19 APRIL 2016 EC DECLARATION OF CONFORMITY GÜLTIG BIS ZUM 19. APRIL 2016 EG KONFORMITÄTSERKLÄRUNG VALIDEZ HASTA EL 19 DE ABRIL DE 2016 DECLARACIÓN CE DE CONFORMIDAD VALIDO FINO AL 19 APRILE 2016 DICHIARAZIONE CE DI CONFORMITÀ...
  • Seite 10 VALABLE A PARTIR DU 20 AVRIL 2016 DECLARATION UE DE CONFORMITE VALID FROM 20 APRIL 2016 UE DECLARATION OF CONFORMITY GÜLTIG AB DEM 20. APRIL 2016 EU- KONFORMITÄTSERKLÄRUNG VALIDEZ A PARTIR DEL 20 DE ABRIL DE 2016 DECLARACIÓN UE DE CONFORMIDAD VALIDO A PARTIRE DAL 20 APRILE 2016 DICHIARAZIONE DI CONFORMITÀ...
  • Seite 11 THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX - France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.167.110-UK-1411...
  • Seite 12 CAUTION : Before any action on the pump, shut off the compressed air supply and depressurize the system. The pump is manufactured under the ATEX agreement and can not be modified. KREMLIN REXSON will not be held responsible for any failure to comply with that instruction. DISASSEMBLY / REASSEMBLY OF THE FLUID SECTION Guards (air motor cover, coupling shields, housings …) have been designed for safe use of the equipment.
  • Seite 13 DISASSEMBLY / REASSEMBLY OF THE COUPLING (WITH BELLOWS) Guards (air motor cover, coupling shields, housings …) have been designed for safe use of the equipment. The manufacturer will not be held responsible for bodily injury or failure and / or damage to property due to removal or partial removal of the guards ...

  • Seite 14: Air Motor

    AIR MOTOR Guards (air motor cover, coupling shields, housings …) have been designed for safe use of the equipment. The manufacturer will not be held responsible for bodily injury or failure and / or damage to property due to removal or partial removal of the guards ...
  • Seite 15  ASSEMBLY INSTRUCTIONS Index Instruction Description Part number PTFE grease 'TECHNILUB' grease (10 ml) 560.440.101 Anti-seize grease Grease box (450 g / 0.99 lb) 560.420.005 Medium strength Loctite 577 554.180.015 Aneorobic Pipe sealant KREMLIN REXSON - 4 - N° : 578.167.110-UK-1411...
  • Seite 16 Doc. 573.117.050 Modif. / Änderung : Pièces de rechange Mise à jour / Update / Aktualisierung Spare parts list Date/Datum/Fecha : 19/04/12 / Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 28/08/08 POMPE FLOWMAX®, modèle 08-120 F FLOWMAX® PUMP, model 08-120 F et modèle 08-120 FT (turbo) and model 08-120 FT (turbo) FLOWMAX®...

  • Seite 17: Inhaltsverzeichnis

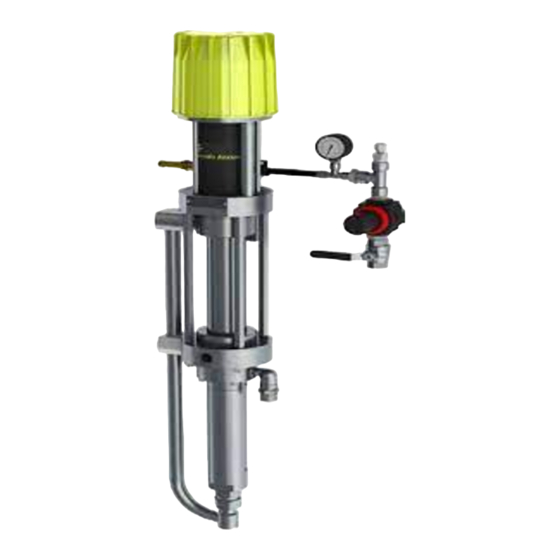

    POMPE MURALE, modèle 08-120 F WALL MOUNTED PUMP, model 08-120 F sans filtre, ni cannes without filter or rods WANDANLAGE, Modell 08-120 F BOMBA MURAL, tipo 08-120 F 151.794.100 ohne Filter und Schläuche sin filtro ni cañas Désignation Description Bezeichnung Denominación Qté...

  • Seite 18: (Voir Doc. 573.113.050)

    POMPE MURALE, modèle 08-120 FT WALL MOUNTED PUMP, model (turbo) sans filtre, ni canne 08-120 FT (turbo) without filter or rod WANDANLAGE, Modell 08-120 FT (turbo) BOMBA MURAL, tipo 08-120 FT (turbo) 151.799.100 ohne Filter, und Schläuche sin filtro ni caña Désignation Description Bezeichnung...
  • Seite 19 POMPE MURALE, modèle 08-120 F WALL MOUNTED PUMP, model 08-120 F avec filtre et cannes with filter and rods WANDANLAGE, Modell 08-120 F BOMBA MURAL, tipo 08-120 F 151.794.200 mit Filter und Schläuche con filtro y cañas POMPE MURALE, modèle 08-120 FT WALL MOUNTED PUMP, model (turbo) avec filtre et cannes 08-120 FT (turbo) with filter and rods...
  • Seite 20 Doc. 573.045.050 Modif. / Änderung : Pièces de rechange # 146.270.991, # 146.270.995 Spare parts list Date/Datum/Fecha : 20/05/14 + Nota / Hinweis Ersatzteilliste + Ind. / Pos. 55 Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 01/03/12 MOTEUR A AIR, modèle 1000-4 & 1000-4T AIR MOTOR, model 1000-4 &...

  • Seite 21: Motor, Tipo 1000

    MOTEUR A AIR, modèle 1000-4 AIR MOTOR, model 1000-4 LUFTMOTOR, Modell 1000-4 MOTOR DE AIRE, tipo 1000-4 146.275.000 Désignation Description Bezeichnung Denominación Qté Pièces spécifiques au Specific parts to the air Spezielle Teile für Partes específicas al moteur 1000-4 motor, model 1000-4 Luftmotor 1000-4 motor, tipo 1000-4 2 046 270 901 Fond supérieur...

  • Seite 22: Arandela Mn 8

    Désignation Description Bezeichnung Denominación Qté Pièces communes Common parts to the Gleiche Teile in Partes comunes de los aux moteurs 1000-4 et air motors, model 1000- Motoren 1000-4 und motores, tipo 1000-4 y 1000-4T (suite) 4 and 1000-4T 1000-4T (Fortsetzung) 1000-4T (follow up) (a continuación)
  • Seite 23 MOTEUR A AIR, modèle 1000-4T (turbo) AIR MOTOR, model 1000-4T (turbo) LUFTMOTOR, Modell 1000-4T (turbo) MOTOR DE AIRE, tipo 1000-4T turbo) 146.276.000 Désignation Description Bezeichnung Denominación Qté Pièces spécifiques au Specific parts to the air Spezielle Teile für Luft- Partes específicas al moteur 1000-4T motor, model 1000-4T motor 1000-4T...
  • Seite 24 Doc. 573.046.050 Modif. / Änderung : Pièces de rechange # 146.270.990, # 146.270.996 Spare parts list Date/Datum/Fecha : 21/05/14 + Nota / Hinweis Ersatzteilliste + Ind. / Pos. 55 Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 07/03/12 MOTEUR A AIR, modèle 2000-4 & 2000-4T AIR MOTOR, model 2000-4 &...
  • Seite 25 MOTEUR A AIR, modèle 2000-4 AIR MOTOR, model 2000-4 LUFTMOTOR, Modell 2000-4 MOTOR DE AIRE, tipo 2000-4 146.270.000 Désignation Description Bezeichnung Denominación Qté Pièces spécifiques au Specific parts to the air Spezifische Teile für Partes específicas al moteur 2000-4 motor, model 2000-4 Motor 2000-4 motor, tipo 2000-4 2 046 270 901 Fond supérieur...
  • Seite 26 Désignation Description Bezeichnung Denominación Qté Pièces communes Common parts to the Gemeinsame Teile für Partes comunes a los aux moteurs 2000-4 et air motors, model Motor 2000-4 und motores, tipo 2000-4 y 2000-4T (suite) 2000-4 and 2000-4T 2000-4T (Forsetzung) 2000-4T (follow up) (a continuación) 22 044 710 007 Tirant...
  • Seite 27 MOTEUR A AIR, modèle 2000-4T (turbo) AIR MOTOR, model 2000-4T (turbo) LUFTMOTOR, Modell 2000-4T (turbo) MOTOR DE AIRE, tipo 2000-4T (turbo) 146.271.000 Désignation Description Bezeichnung Denominación Qté Pièces spécifiques au Specific parts to the air Spezifische Teile für Partes específicas al moteur 2000-4T motor, model 2000-4T Motor 200-4T...
  • Seite 28 Doc. 573.087.040 Modif. / Änderung : Pièces de rechange Eclaté / Exploded view / Explosions- Spare parts list Date/Datum/Fecha : 03/06/14 zeichnung / Vista Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 03/01/14 BLOC INVERSEUR REVERSING-BLOCK UMSTEUERBLOCK BLOQUE INVERSOR 044.630.400...
  • Seite 29 BLOC INVERSEUR REVERSING-BLOCK UMSTEUERBLOCK BLOQUE INVERSOR 044.630.400 Désignation Description Bezeichnung Denominación Qté * 144 630 410 Corps équipé Block assembly, Umsteuerblock komplett Cuerpo equipado reversing  Corps  Body  Körper  Cuerpo N C / N S  Bague de guidage ...
  • Seite 30 Doc. 573.113.050 Modif. / Änderung : Pièces de rechange Mise à jour / Update / Aktualisierung Spare parts list Date/Datum/Fecha : 18/11/14 / Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 16/04/12 HYDRAULIQUE FLOWMAX    / FLOWMAX    FLUID SECTION 120 F 144.970.100 FLOWMAX...
  • Seite 31 Désignation Description Bezeichnung Denominación Qté 1 044 970 451 Bride d'aspiration Suction flange Unterer Flansch Brida de aspiración 2 044 970 052 Cylindre Cylinder Ansaugzylinder Cilindro 3 044 970 445 Palier d'aspiration Suction bearing Oberer Flansch Palier de aspiración 4 044 970 046 Bride soufflet Flange, bellows Faltenbalg-Flansch Brida fuelle...
  • Seite 32 Désignation Description Bezeichnung Denominación Qté * 144 970 490 Pochette de joints Package of seals Dichtungssatz Bolsa de juntas (ind. 11, 23, 25, 27, 29, (ind. 11, 23, 25, 27, 29, (beinhaltet Pos. 11, 23, (índ. 11, 23, 25, 27, 29, 30, 31, 33, 37, 42, 44) 30, 31, 33, 37, 42, 44) 25, 27, 29, 30, 31, 33, 37,...
  • Seite 33 Désignation Description Bezeichnung Denominación Qté * 144 970 270 Pochette de joints PU Package of PU-Dichtungssatz Bolsa de juntas de (ind. 11x4, 25, 27, 29, Polyurethane seals (Pos 11x4,25, 27, 29, 30, Poliuretano 30, 31, 33, 37, 42, 44, 60, (ind.
  • Seite 34 Doc. 573.403.050 Modif. /Änderung : Mise à jour / Pièces de rechange Update / Aktualisierung / Spare parts list Date/Datum/Fecha : 09/06//11 Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 11/08/08 EQUIPEMENT D'AIR / AIR SUPPLY / LUFTAUSRÜSTUNG / EQUIPO DE AIRE Avec 1 détendeur / with 1 air regulator / mit 1 Druckminderer / con 1 manorreductor , Mod.
  • Seite 35 Désignation Description Bezeichnung Denominación Qté * 8 910.011.402 Manomètre 0 - 10 bar Gauge 0 - 10 bar / 0 - 145 Manometer, 0-10 bar Manómetro, 0-10 bar 552 436 Té F 1/4" Tee, F 1/4" T-Stück , F 1/4" Te, H 1/4"...
  • Seite 36  Moteur / Motor, Mod. 2000-2 Equipement d'air (pour moteur 2000-2) Air supply (for air motor, model 2000-2) Luftausrüstung (für Luftmotor 2000-2) Equipo de aire (para motor, tipo 2000-2) # 144.920.200 Pièces spécifiques - Specific parts - Spezifische Teile - Partes específicas Désignation Description Bezeichnung...
  • Seite 37 Pièces spécifiques - Specific parts - Spezifische Teile - Partes específicas Désignation Description Bezeichnung Denominación Qté 552 438 Té FFF 1/2" Tee, FFF 1/2" T-Stück , IG 1/2 " Te, HHH 1/2" 19 050.102.401 Raccord Adaptor Nippel Racor M 1/2 BSP - M 3/4 NPS M 1/2 BSP - M 3/4 NPS M 1/2 BSP - M 3/4 NPS M 1/2 BSP - M 3/4 NPS...
  • Seite 38 Doc. 573.299.050 Modif. /Änderung : Mise à jour / Pièces de rechange Update / Aktualisierung / Spare parts list Date/Datum/Fecha : 10/06/11 Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 07/10/04 FILTRE PRODUIT HP, modèle 3/8 inox HP FLUID FILTER, model 3/8 stainless steel HP MATERIALFILTER, Modell 3/8 Edelstahl FILTRO PRODUCTO HP, tipo 3/8 inox...
  • Seite 39 FILTRE EQUIPÉ pour pompes AIRMIX FILTRE EQUIPÉ pour pompes AIRLESS EQUIPPED FILTER for AIRMIX pumps EQUIPPED FILTER for AIRLESSpumps AUSGERÜSTETER FILTER für AIRMIX-Pumpen AUSGERÜSTETER FILTER für AIRLESS- Pumpen FILTRO EQUIPADO para bombas AIRMIX FILTRO EQUIPADO para bombas AIRLESS # 155.580.300 # 155.580.400 PIECES COMMUNES - COMMON PARTS - GLEICHE TEILE - PARTES COMUNES Désignation...
  • Seite 40 FILTRE NU (sans tamis) BARE FILTER (without screen) NACKTER FILTER (ohne Sieb) FILTRO SOLO (sin tamiz) 155.580.200 Ind. 1 Ind. 17 Désignation Description Bezeichnung Denominación Qté 11 055.580.201 Embase 3/8 Base, model 3/8 Grundblock, Modell 3/8 Base, tipo 3/8 12 055.580.202 Cuve Bowl Filterglocke Cubeta...
  • Seite 41 A LA DEMANDE - ON REQUEST - AUF WUNSCH - A PETICIÓN Ind. 7 Désignation Description Bezeichnung Denominación Qté - 000.161.101 Tamis n° 1 (37 µ) Screen n° 1 (37 µ) Sieb Nr. 1 (37 µ) Tamiz n° 1 (37µ) - 000.161.102 Tamis n°...

  • Seite 42: Preventive Maintenance

    THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.033.110-UK-1106...

  • Seite 43: Spray Gun

     PUMP Make sure that the pump is clean and in good condition to increase equipment working life. If the pump is an intensive™ one : - Regularly clean the wetting-cup with "T" lubricant (this "T" lubricant will normally be coloured by the paint).
  • Seite 44 THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.034.110-UK-1106...
  • Seite 45 CAUSE SOLUTION The pump does not start. Check the pump air supply. Priming trouble : Be sure that the spray gun is fully opened and air evacuated through this one.  Air is always coming out from the spray Air intake at the fitting or at the suction rod. gun.
  • Seite 46 THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.008.120-UK-1106...

  • Seite 47: Operating Principle

    OPERATING PRINCIPLE The pump (A) consists of :  an alternating air motor (B),  an hydraulic section (C) mechanically coupled to the air motor (B). The air motor is supplied with compressed air by means of the regulator (D) (Red knob). The pressure is read on the gauge (E).
  • Seite 48 FLOWMAX  PUMP Captions : Intensive™ or FLOWMAX ® pump (B + C) Suction rod (depending on version) Air motor Accumulator filter (depending on version) Fluid section Drain valve (depending on version) Air regulator "MOTOR AIR" Drain rod (depending on version) Gauge HP Fluid hose Air regulator "GUN AIR"...

  • Seite 49: Pump Supplied In Filling (Circulating)

     FLUSHING WITH SOLVENT Immerse suction rod (L) and the drain rod (O) into the material container. Open the air shut off valve (N). Open the valve (H) of the pump air equipment to supply the air motor. Nota : If the pump air motor is a 5000 version, it needs pilot air to operate. The pump air equipment supplies pilot air to the air motor.

  • Seite 50: Safety Device

    3. SHUTDOWN AT THE END OF THE WORK  SHORT DURATION SHUTDOWN Decrease the material pressure of air regulator (D) until reading 0 bar / 0 psi on the gauge (E). Trigger the spray gun to depressurize the system. Unscrew the spray gun air regulator (F) or disconnect the spray gun air inlet. Remove the aircap from the spray gun, (aicap and nozzle for Airmix ®...

  • Seite 51: Technical Features

    THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.068.120-UK-1204...
  • Seite 52 1. DESCRIPTION Air operated piston pump with bellows seal fluid packing  Low maintenance and ease of use - Use without lubrication  Recommended for : Supplying one or several spray guns  Water-based or solvent-based paints whose viscosity is lower than 1 000 mPa/s ...
  • Seite 53  FITTINGS Bare pump Pump with equipment Inlet Standard motor : Female 3/8 NPS Female 3/4 BSP (valve - air supply) Turbo motor : Male 3/4 NPS Inlet Female 1/2 BSP Male 26x125 Material Outlet Female 1/2 NPS Male 1/2 JIC (filter outlet) ...

  • Seite 54: Installation Instructions

    3. INSTALLATION The pumps are designed to be installed in a spray booth.  DESCRIPTION OF THE LABEL MARKING Marking in accordance with the ATEX Directive KREMLIN REXSON Name and address of the manufacturer STAINS FRANCE TYPE xx Pump model II : group II 2 : class 2 II 2 G...
  • Seite 55 The 1 m / 39.37" distance indicated in these diagrams is given for information purposes only and hold harmless to KREMLIN REXSON. The user is responsible for the extraction and conditioning of the painting area where the equipment is used, for working conditions conditions (refer to EN 60079-10 standard).
