7.5 Attaching stander
to Mobile Chassis

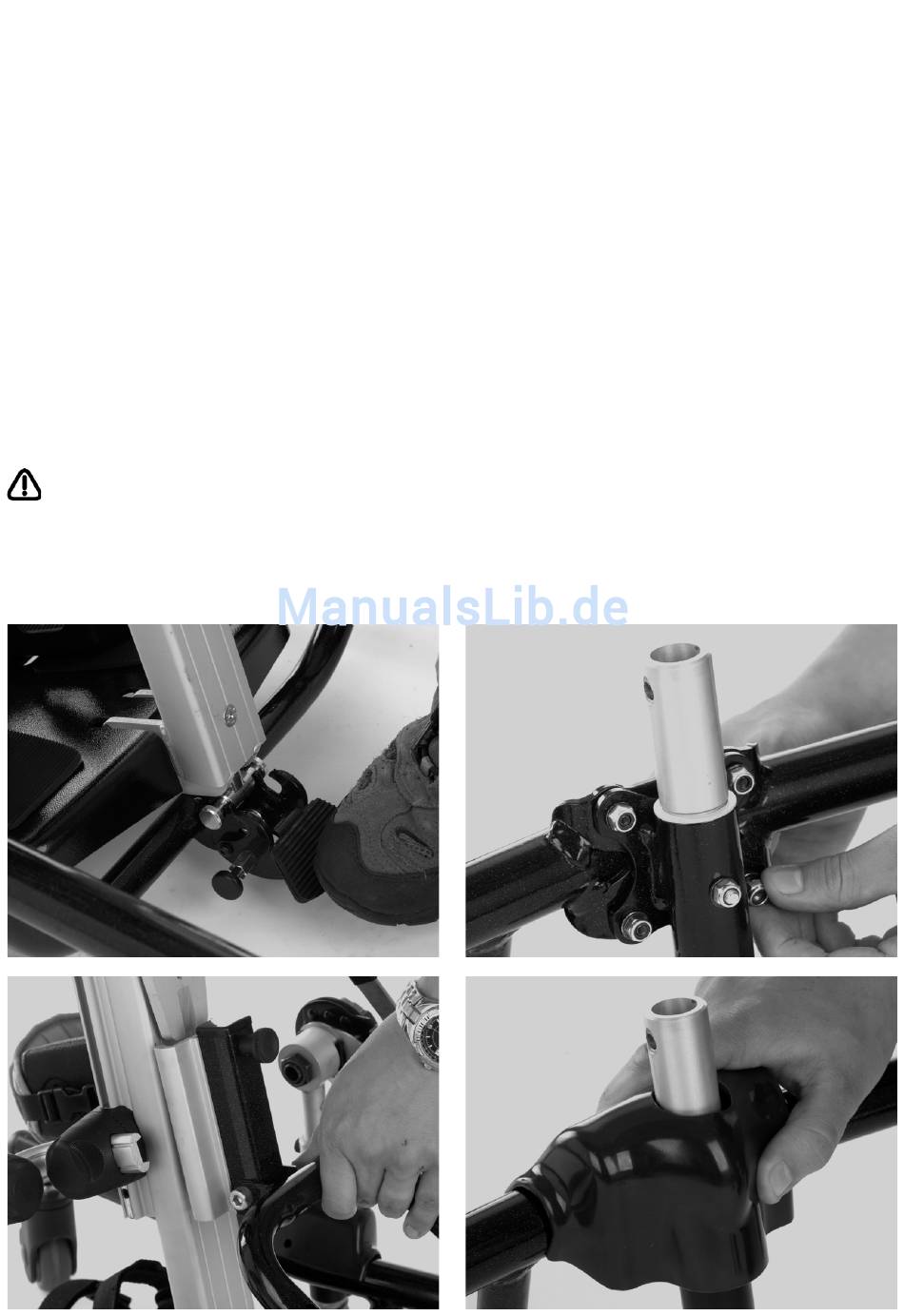

First insert the support frame into the
receiver at the base. To do this release
the locking pin at the side of the pedal by
pulling and rotating through 90 degrees into
the locked position. Press the pedal down
and locate the locking bar at the base of
the central spine in the recess. Release the
pedal, the support frame is now locked into
position. Rotate the locking pin again so
the pedal cannot be accidentally released.
Then slide the central spine interface into
the receiving bracket until it is fully
engaged, ensuring the locking pin has
engaged fully.
Always make sure the locking pin is
fully engaged before you place the child
in the stander.
7.6 Attaching the
suspension system
To attach the suspension system first
attach the base which has the suspension
spring attached. To do this line up the holes
and insert the four bolts and place the
washers and nuts onto the bolts. Tighten
securely ensuring the bolts protrude
through the end of the nut.
Lastly insert the hub assembly into the top
and set to the required height for the size
of wheels you have ordered. For 27" wheels
align the bottom hole (B) in the hub with
the top hole in the suspension (C), insert
the bolt and secure with the nut on the
other side. To setup the suspension for the
24" wheels align hole (A) with hole (C) and
secure with the bolt and nut.
Repeat the process on the opposite side
for the other wheel.
