Maschinenbrenner-Pakete - Hypertherm MAX200 Betriebsanleitung

STANDARD-KOMPONENTEN
Maschinenbrenner-Pakete (fortz.)
Anmerkung: Hypertherm empfiehlt nicht den Einsatz von Brennerleitungen von mehr als 23 m Länge.
Leitungen von 30,5 m, 38 m und 46 m Länge verursachen Probleme beim Starten.
Position Teilenummer
028782
1 023809
2 024417
3 024414
4 023806
5 023806
6 020536
7 046026
8 046061
9 027015
10 004080
11 015090
028783
1 023810
2 024418
3 024415
4 023807
5 023807
6 020536
7 046026
8 046061
9 027015
10 004080
11 015090
6-28
15
Beschreibung
Shield Torch Lead, 125 Ft.
Lead Pilot, Shield Gas, 125 Ft. (blue)
Lead, Plasma Gas, 125 Ft. (red)
Lead, Cap Sensor, 125 Ft. (gray)
Cable, Water Cooled, 125 Ft. (blue- red band)
Cable, Water Cooled, 125 Ft. (blue- green band)
Lead Insulator, 9/16" ID x 2-1/2"
Tubing, 1-1/2" ID Shrink Black
2" ID Tinned Braid
Ring Compress, Shield Torch Lead
Collar, Shield Torch Leads
Clamp, Hose, 1-5/16 - 2-1/4
Shield Torch Lead, 150 Ft.
Lead Pilot, Shield Gas, 150 Ft. (blue)
Lead, Plasma Gas, 150 Ft. (red)
Lead, Cap Sensor, 150 Ft. (gray)
Cable, Water Cooled, 150 Ft. (blue- red band)
Cable, Water Cooled, 150 Ft. (blue- green band)
Lead Insulator, 9/16" ID x 2-1/2"
Tubing, 1-1/2" ID Shrink Black
2" ID Tinned Braid
Ring Compress, Shield Torch Lead
Collar, Shield Torch Leads
Clamp, Hose, 1-5/16 - 2-1/4

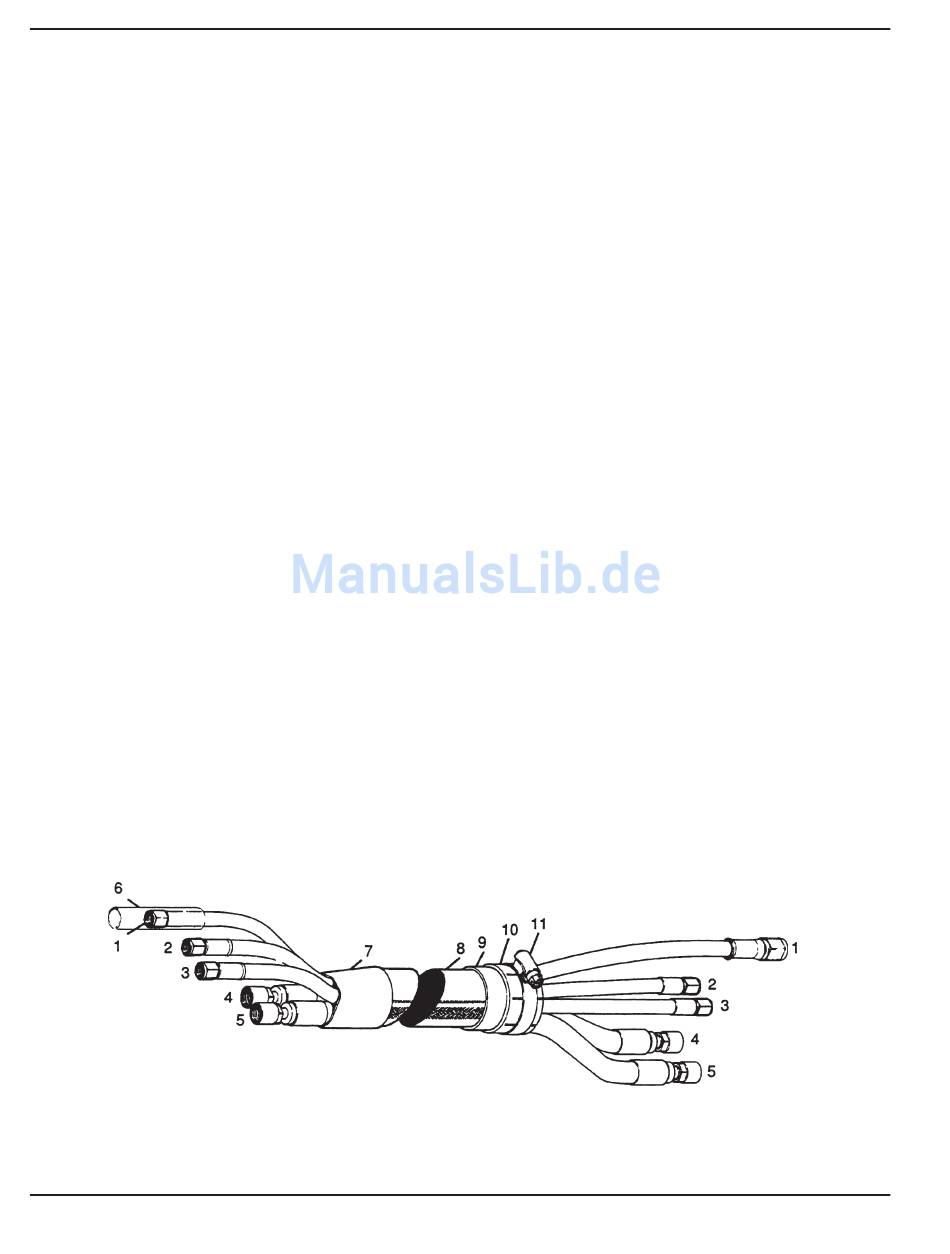

Abbildung 6-10 Maschinenbrenner-Schlauchpakete
MAX200 (Maschinenbrenner) Betriebsanleitung
