6 Technische Daten

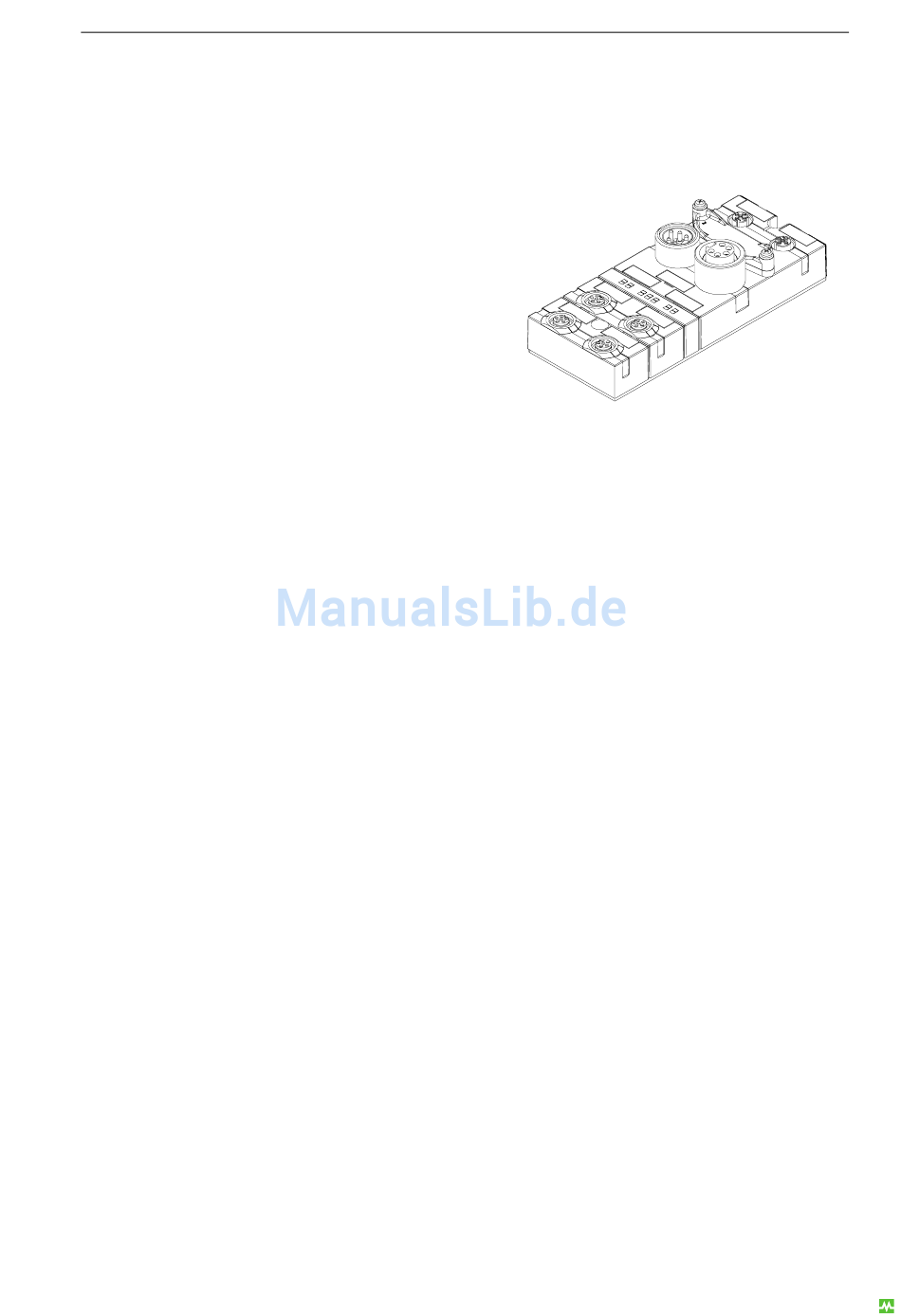

Ethernet/IP Device IP67+
EMC
EN 61131-2 Product standard
EN 61000-4-2 ESD ........................................................... Contact ± 4 kV, air ± 8 kV
EN 61000-4-3 RF-Field & GSM ......................................... 10 V/m
EN 61000-4-4 Burst .......................................................... ± 2 kV
EN 61000-4-5 Surge ......................................................... asym./symm. ± 500 V (DC input)
........................................................................................... asym. ± 1 kV (Signal connections)
EN 61000-4-6 HF-asymmetric .......................................... 10 V
EN 61000-4-8 Magnetic field 50 Hz .................................. 30 A/m
EN 55011 Emission ........................................................... QP 40 dBµV/m (30 - 230 MHz)
........................................................................................... QP 47 dBµV/m (230 - 1000 MHz) (class A)
Ambient conditions
Normal operating temperature ........................................... 0°C ... +55°C
Storage temperature ......................................................... -25°C ... +85°C
Enclosure type according to EN 60529 ............................ IP 67
Please note:
The Cube67+ field bus system is very robust and due to the high protection class IP67 it is protected
from dust, dirt, and most liquids without an additional housing. Cube 67 is specially designed for harsh
industrial applications directly in machines and systems.
The field bus system is not suitable for outdoor use, continuous operation in liquids or high pressure
wash downs.
Mechanical ambient conditions
Oscillation according to EN 60068 Part 2-6 ...................... 5 ... 70 Hz; const. amplitude 0.75 mm
........................................................................................... 70 ... 500 Hz; const. acceleration 15 g
Shock according to EN 60068 Part 2-27 .......................... Amplitude 50 g, 11 ms duration

Connection possibilities

Supply cable ..................................................................... Plug connector 7/8"
Bus connection .................................................................. 2 x M12 female connector
........................................................................................... 4-pin D-code
Internal system connection ................................................ 4 x 6-pin M12 plug connector
Cube67+ | BN-E/IP
70
