Screen - T+A P 10 Betriebsanleitung

9 9
9 9

Screen

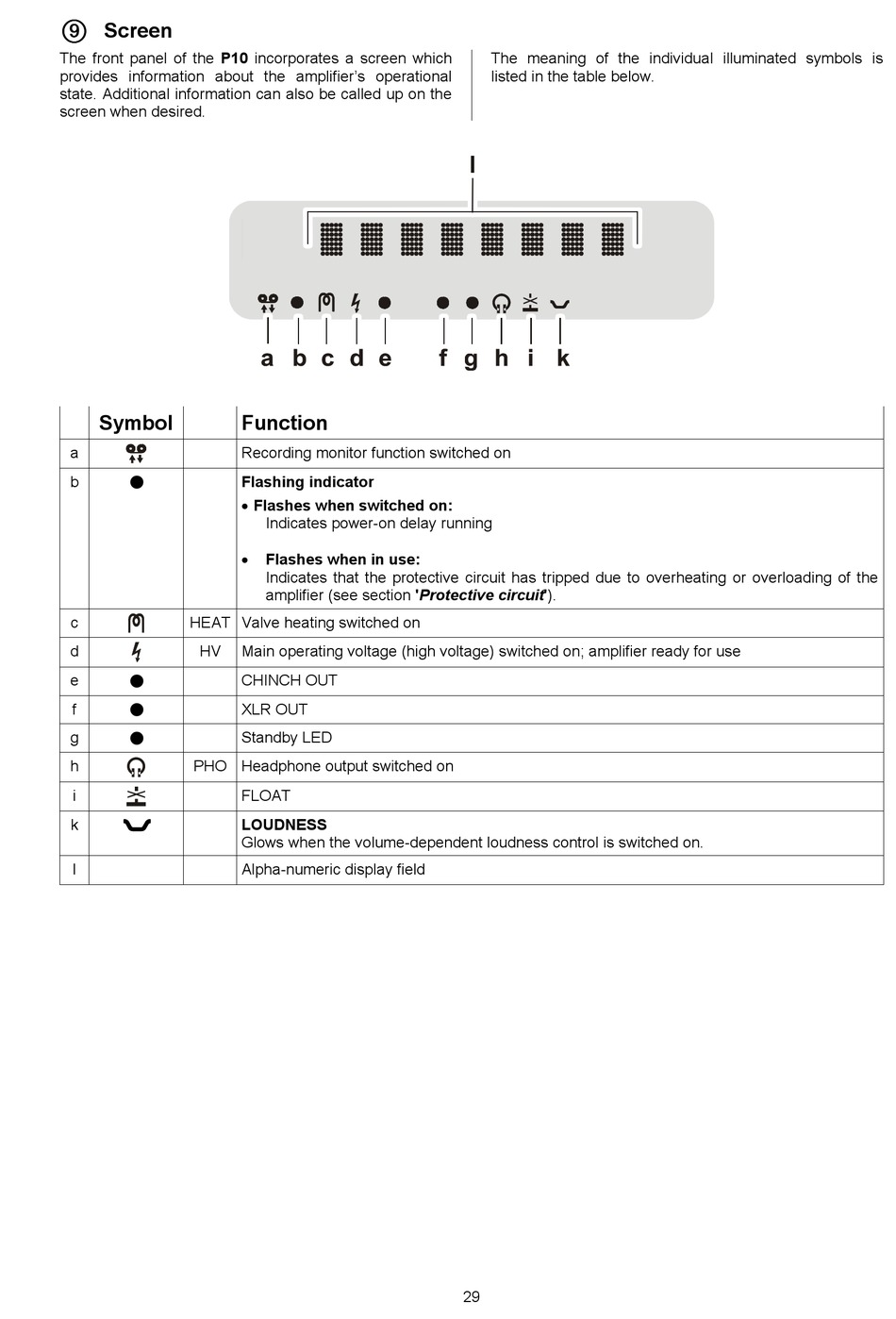

The front panel of the P10 incorporates a screen which
provides information about the amplifier's operational
state. Additional information can also be called up on the
screen when desired.
Symbol
a
½
b
c HEAT Valve heating switched on
d HV
½
e
½
f
½
g
h PHO Headphone output switched on
i
   
k
l
Function
Recording monitor function switched on
Flashing indicator
• Flashes when switched on:
Indicates power-on delay running
Flashes when in use:
•
Indicates that the protective circuit has tripped due to overheating or overloading of the
amplifier (see section 'Protective circuit').
Main operating voltage (high voltage) switched on; amplifier ready for use
CHINCH OUT
XLR OUT
Standby LED
FLOAT
LOUDNESS
Glows when the volume-dependent loudness control is switched on.
Alpha-numeric display field
The meaning of the individual illuminated symbols is
listed in the table below.
29
