Instructions Capacitive Keypad
GB GB

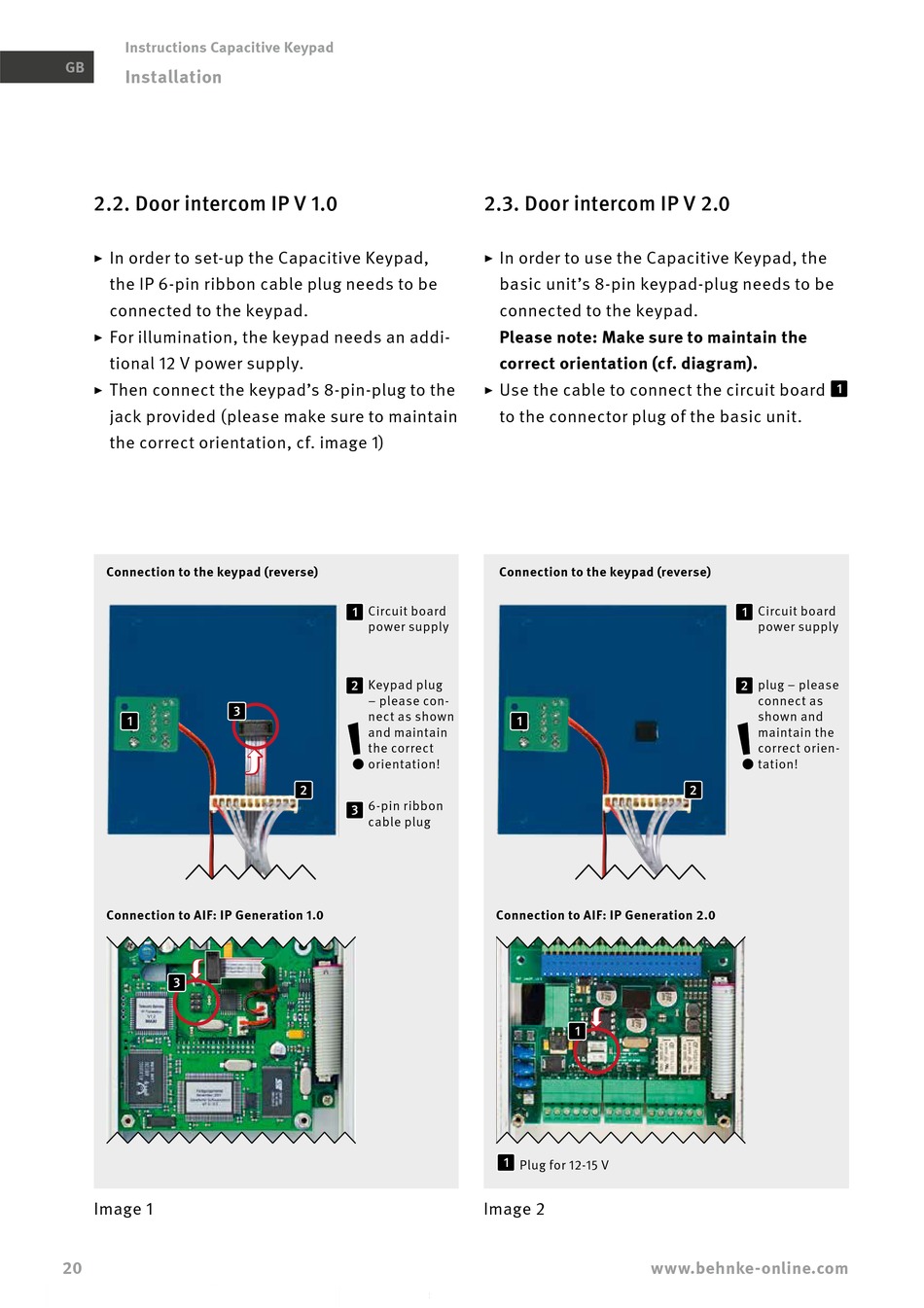

Installation

2.2. Door intercom IP V 1.0

▸
In order to set-up the Capacitive Keypad,
the IP 6-pin ribbon cable plug needs to be
connected to the keypad.
▸
For illumination, the keypad needs an addi-
tional 12 V power supply.
▸ Then connect the keypad's 8-pin-plug to the
jack provided (please make sure to maintain
the correct orientation, cf. image 1)
Connection to the keypad (reverse)
Connection to AIF: IP Generation 1.0

Image 1
20
Circuit board
power supply
Keypad plug
– please con-
nect as shown
and maintain
the correct

orientation!
6-pin ribbon
cable plug

2.3. Door intercom IP V 2.0

▸
In order to use the Capacitive Keypad, the
basic unit's 8-pin keypad-plug needs to be
connected to the keypad.
Please note: Make sure to maintain the
correct orientation (cf. diagram).
▸ Use the cable to connect the circuit board
to the connector plug of the basic unit.
Connection to the keypad (reverse)
Connection to AIF: IP Generation 2.0

Plug for 12-15 V
Image 2
www.behnke-online.com
Circuit board
power supply
plug – please
connect as
shown and
maintain the
correct orien-
tation!
