2.1. Door intercom a/b

▸
Using the capacitive keypad requires an
additional 12-15 V power supply. Connect
the isolated 12-15 V DC power supply to the
respective clamps of the basic unit (
image 2).
▸
Connect the cable to the circuit board for
power supply (cf. image 1) using the plug for
12-15 V on the basic unit (
Please note: Power has to be supplied by the
door intercom. The additional power supply
must not be connected directly to the keypad.

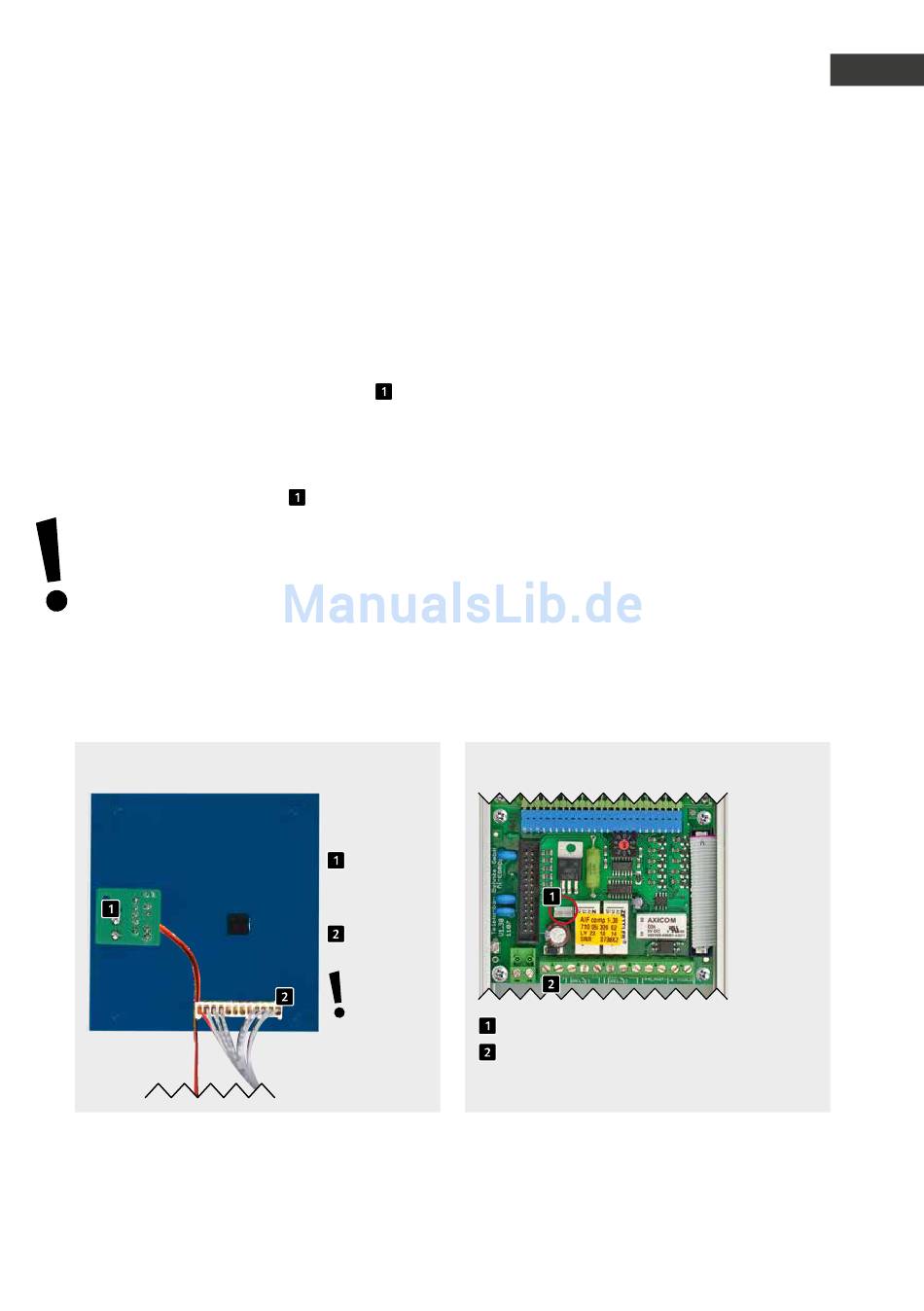

Connection to the keypad (reverse)
Image 1
www.behnke-online.com
▸
Then connect the keypad's 8-pin-plug to the
jack provided (please make sure to maintain
the correct orientation, cf. image 1).
cf.
cf. image 2).
Connection to AIF: a/b
Circuit board
power supply
Keypad plug
– please con-
nect as shown
and maintain
the correct
orientation!
Image 2
Instructions Capacitive Keypad
Plug for 12-15 V
Clamp for 12-15 V additional power supply
