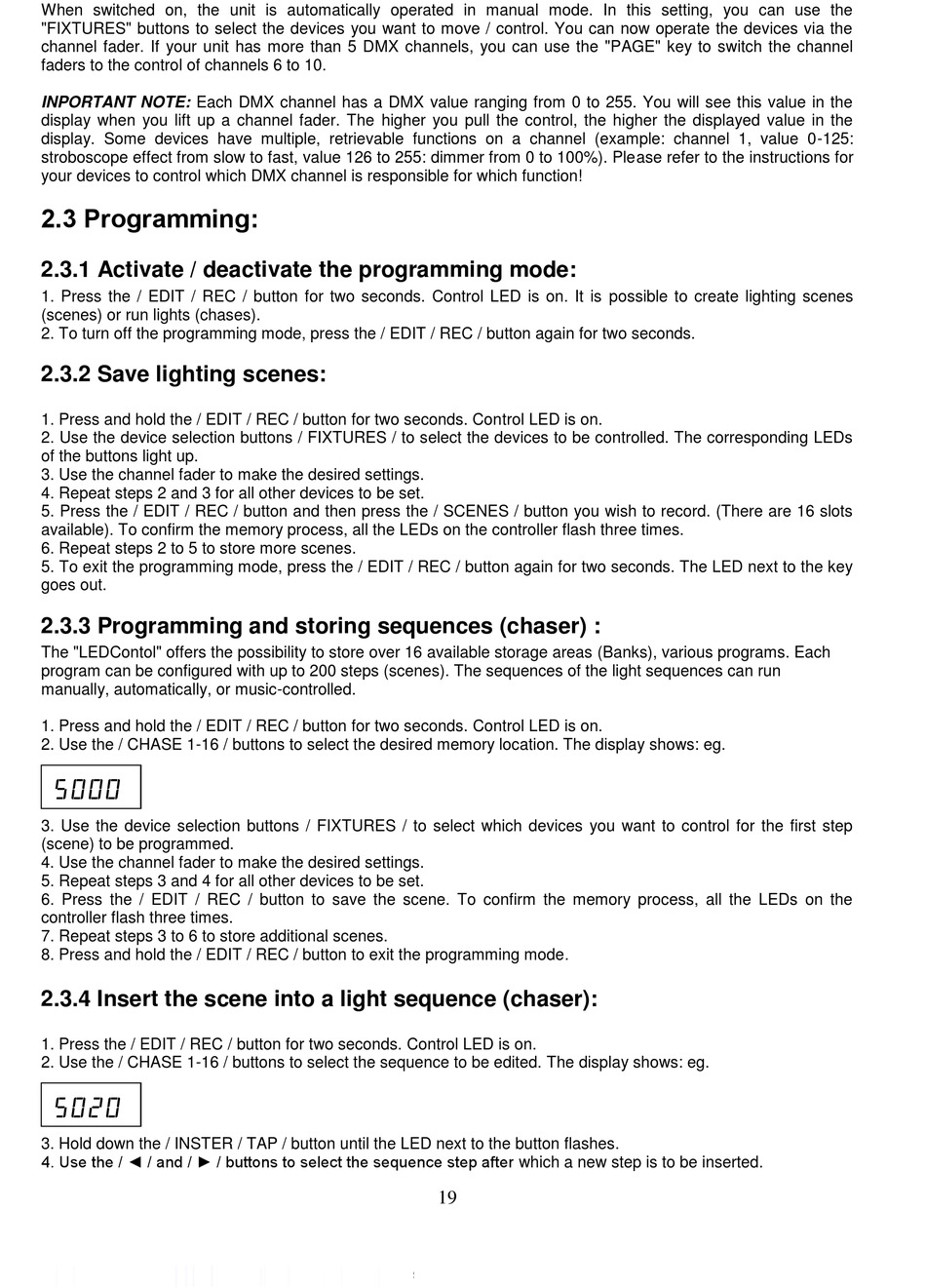

When switched on, the unit is automatically operated in manual mode. In this setting, you can use the
"FIXTURES" buttons to select the devices you want to move / control. You can now operate the devices via the
channel fader. If your unit has more than 5 DMX channels, you can use the "PAGE" key to switch the channel
faders to the control of channels 6 to 10.
INPORTANT NOTE: Each DMX channel has a DMX value ranging from 0 to 255. You will see this value in the
display when you lift up a channel fader. The higher you pull the control, the higher the displayed value in the
display. Some devices have multiple, retrievable functions on a channel (example: channel 1, value 0-125:
stroboscope effect from slow to fast, value 126 to 255: dimmer from 0 to 100%). Please refer to the instructions for
your devices to control which DMX channel is responsible for which function!

2.3 Programming:

2.3.1 Activate / deactivate the programming mode:

1. Press the / EDIT / REC / button for two seconds. Control LED is on. It is possible to create lighting scenes
(scenes) or run lights (chases).
2. To turn off the programming mode, press the / EDIT / REC / button again for two seconds.

2.3.2 Save lighting scenes:

1. Press and hold the / EDIT / REC / button for two seconds. Control LED is on.
2. Use the device selection buttons / FIXTURES / to select the devices to be controlled. The corresponding LEDs
of the buttons light up.
3. Use the channel fader to make the desired settings.
4. Repeat steps 2 and 3 for all other devices to be set.
5. Press the / EDIT / REC / button and then press the / SCENES / button you wish to record. (There are 16 slots
available). To confirm the memory process, all the LEDs on the controller flash three times.
6. Repeat steps 2 to 5 to store more scenes.
5. To exit the programming mode, press the / EDIT / REC / button again for two seconds. The LED next to the key
goes out.

2.3.3 Programming and storing sequences (chaser) :

The "LEDContol" offers the possibility to store over 16 available storage areas (Banks), various programs. Each
program can be configured with up to 200 steps (scenes). The sequences of the light sequences can run
manually, automatically, or music-controlled.
1. Press and hold the / EDIT / REC / button for two seconds. Control LED is on.
2. Use the / CHASE 1-16 / buttons to select the desired memory location. The display shows: eg.
S000
3. Use the device selection buttons / FIXTURES / to select which devices you want to control for the first step
(scene) to be programmed.
4. Use the channel fader to make the desired settings.
5. Repeat steps 3 and 4 for all other devices to be set.
6. Press the / EDIT / REC / button to save the scene. To confirm the memory process, all the LEDs on the
controller flash three times.
7. Repeat steps 3 to 6 to store additional scenes.
8. Press and hold the / EDIT / REC / button to exit the programming mode.

2.3.4 Insert the scene into a light sequence (chaser):

1. Press the / EDIT / REC / button for two seconds. Control LED is on.
2. Use the / CHASE 1-16 / buttons to select the sequence to be edited. The display shows: eg.
S020
3. Hold down the / INSTER / TAP / button until the LED next to the button flashes.
4. Use the / ◄ / and / ► / buttons to select the sequence step after which a new step is to be inserted.
