Part 2: Functions & Operation:

2.1 Overview of buttons and controls:

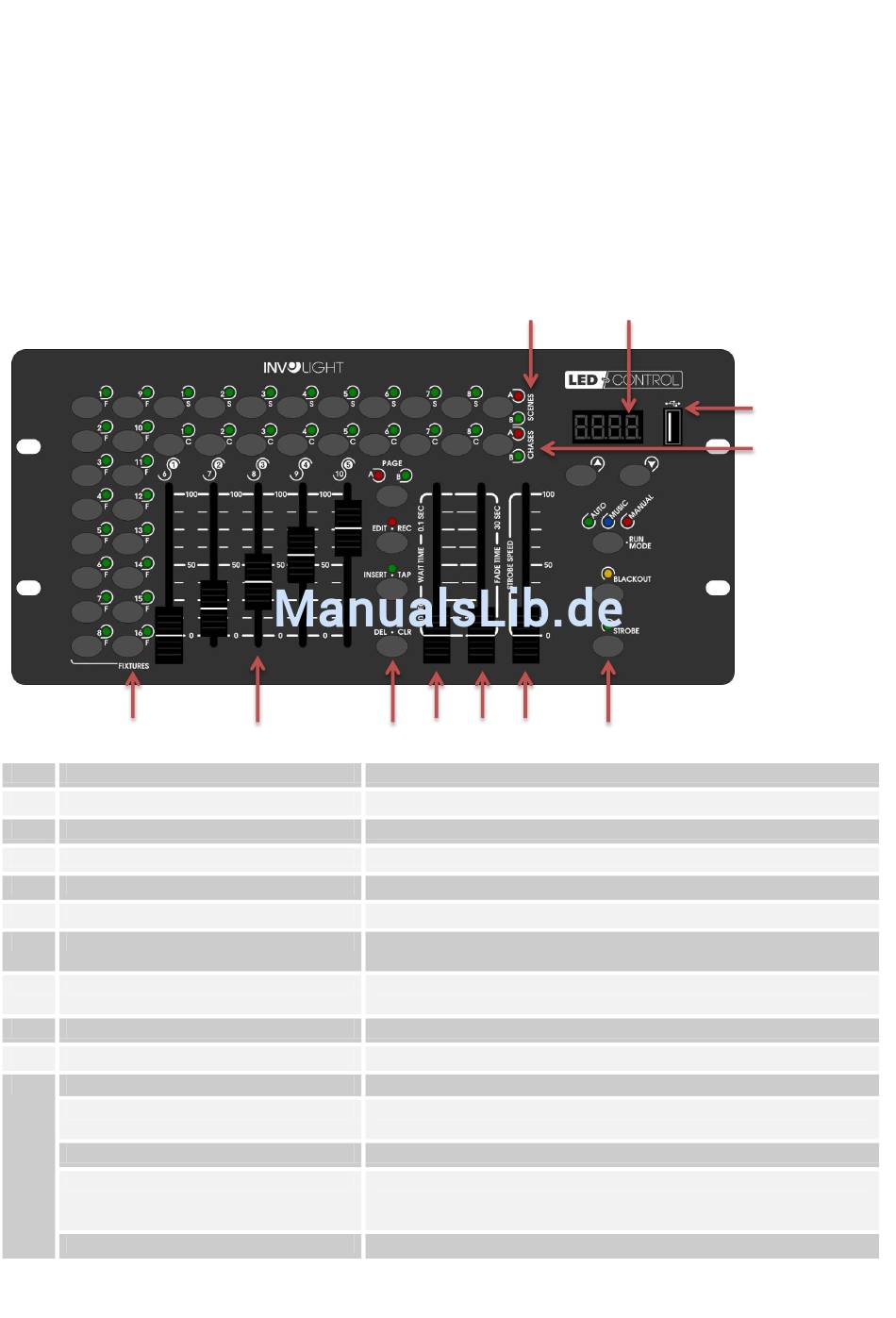

Illustration 1.
Controller-Surface:
1.
Pos. Controls
1 key group /FIXTURES/
2 key group /SCENES/
3 key group /CHASE/
4 LED Display
5 USB-connection
6 slider
7 slider /WAIT TIME/
8 slider /FADE TIME/
9 slider /STROBE SPEED/
10 function keys Group1:
key /PAGE/
key /EDIT/REC/
key /INSTER/TAP/
key /DEL/CLR/
6.
10
.
Function
keys 1-16 to select and deselect devices.
keys 1-8 to select and deselect lighting scenes.
keys 1-8 to select a program (user-programmed chaser).
Inserting a USB storage device for data backup, importing data.
Set the DMX values for the selected devices. The current DMX
value is shown in the display.
Adjusting the running speed during the time-controlled sequence
of lighting scenes or chases.
Control of the fade-time of selected lighting scenes or chases.
Set the strobe-speed.
Switching the sliders between the two channel-
Groups 1-5 and 6-10.
Saves individual scenes or chases and programs.
Setting the fade-in time between two scenes during the time- or
music-controlled sequence of lighting scenes of a memory bank
or a sequence of light chases and for programming functions.
Delete lighting scenes or chases.
16
2.
7. 9.
8.
4.
5.
3.
