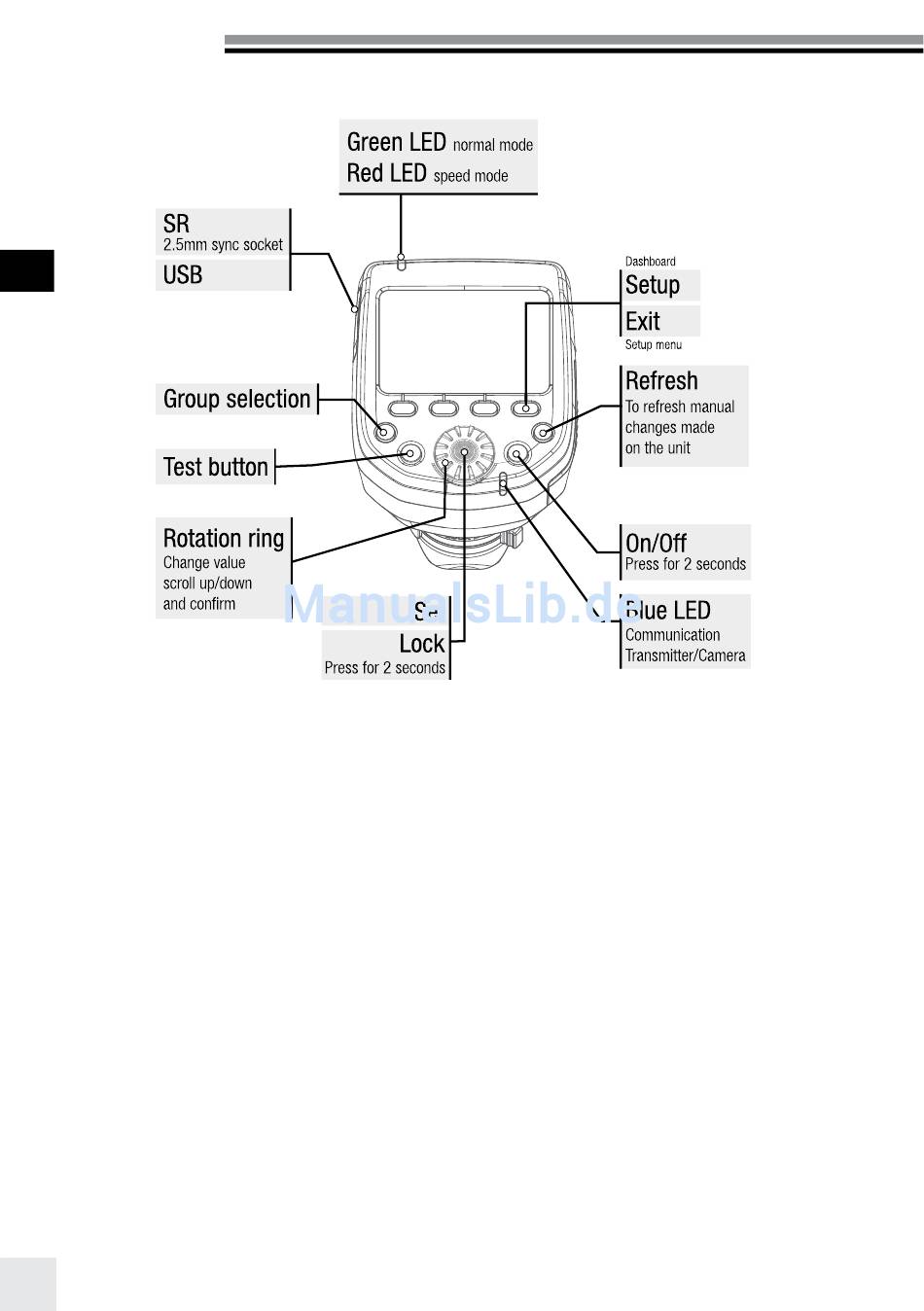

BUTTONS

EN
SPEED BUTTONS 1-4
The speed buttons enable quick setting of the functions indicated below.
SPEED BUTTON 1 (LEFT)
TTL / Manual Mode: toggle between TTL and Manual mode.
SPEED BUTTON 2 (MIDDLE LEFT)
TTL Mode: switch Groups All or 1 to 4 on/off, when On; change EV value with the rotation ring from -3.0 to +3.0.
Manual Mode: select a displayed flash unit and change flash power value with the rotation ring.
SPEED BUTTON 3 (MIDDLE RIGHT)
TTL Mode:
Manual Mode:
SPEED BUTTON 4 (RIGHT)
Setup: press this button to enter into the setup menu. Select with the dial the feature, press the middle
button of the rotation ring to confirm and change value again with the dial and pres middle button
again to confirm.
Exit Exit the Setup menu and switch back to standard display mode.
12
switch the modelling lamp on/off.
switch the modelling lamp on/off.
