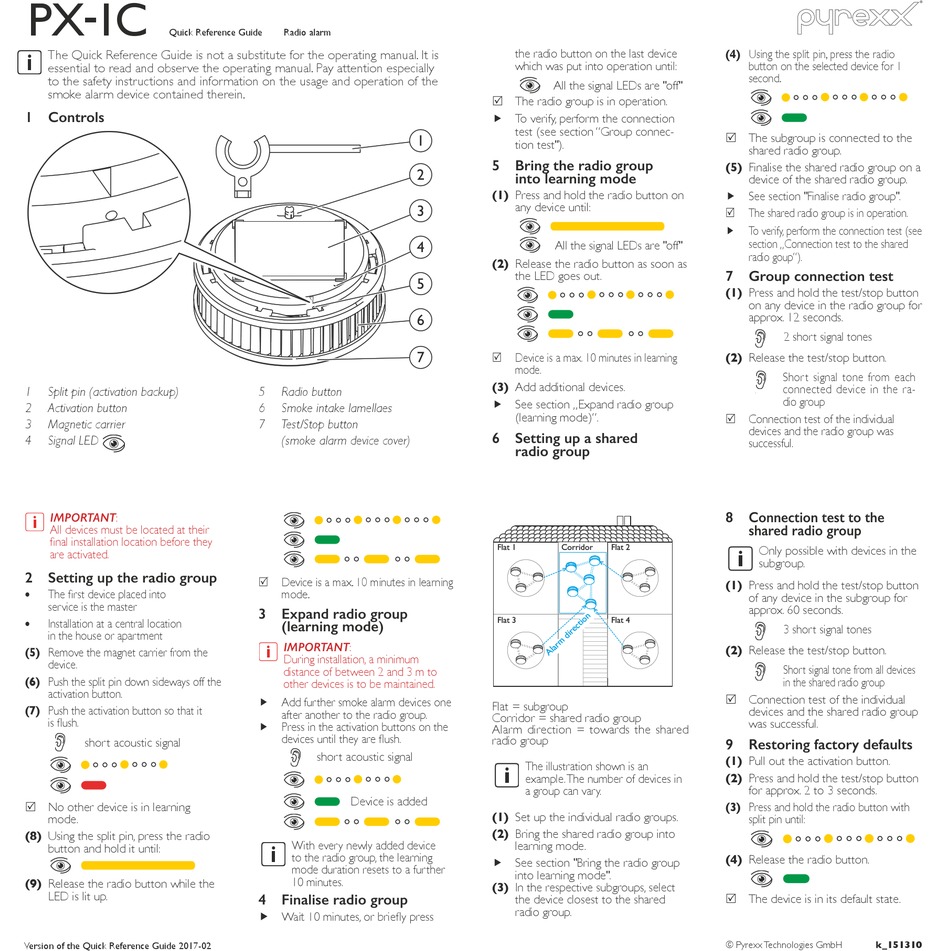

pyrexx PX-1C Kurzanleitung Seite 2

P X - 1C
Quick Reference Guide
The Quick Reference Guide is not a substitute for the operating manual. It is
essential to read and observe the operating manual. Pay attention especially
to the safety instructions and information on the usage and operation of the
smoke alarm device contained therein.
1 Controls
1 Split pin (activation backup)
2 Activation button
3 Magnetic carrier
4 Signal LED
IMPORTANT:
All devices must be located at their
final installation location before they
are activated.
2 Setting up the radio group
The first device placed into
•
service is the master
Installation at a central location
•
in the house or apartment
(5) Remove the magnet carrier from the
device.
(6) Push the split pin down sideways off the
activation button.
(7) Push the activation button so that it
is flush.
short acoustic signal
5 No other device is in learning
mode.
(8) Using the split pin, press the radio
button and hold it until:
(9) Release the radio button while the
LED is lit up.
Version of the Quick Reference Guide 2017-02
Radio alarm
1
2
3
4
5
6
7
5 Radio button
6 Smoke intake lamellaes
7 Test/Stop button
(smoke alarm device cover)
Device is a max. 10 minutes in learning
5
mode.
3 Expand radio group
(learning mode)
IMPORTANT:
During installation, a minimum
distance of between 2 and 3 m to
other devices is to be maintained.
Add further smoke alarm devices one
f
after another to the radio group.
Press in the activation buttons on the
f
devices until they are flush.
short acoustic signal
Device is added
With every newly added device
to the radio group, the learning
mode duration resets to a further
10 minutes.
4 Finalise radio group
f Wait 1 0 minutes, or briefly press
the radio button on the last device
which was put into operation until:
All the signal LEDs are "off"
5 The radio group is in operation.
f To verify, perform the connection
test (see section "Group connec-
tion test").
5 Bring the radio group
into learning mode
(1) Press and hold the radio button on
any device until:
All the signal LEDs are "off"
(2) Release the radio button as soon as
the LED goes out.
Device is a max. 10 minutes in learning
5
mode.
(3) Add additional devices.
f See section „Expand radio group
(learning mode)".
6 Setting up a shared
radio group
Flat 1 Corridor Flat 2
Flat 3 Flat 4
Flat = subgroup
Corridor = shared radio group
Alarm direction = towards the shared
radio group
The illustration shown is an
example. The number of devices in
a group can vary.
(1) Set up the individual radio groups.
(2) Bring the shared radio group into
learning mode.
f See section "Bring the radio group
into learning mode".
(3) In the respective subgroups, select
the device closest to the shared
radio group.
(4) Using the split pin, press the radio
button on the selected device for 1
second.
5 The subgroup is connected to the
shared radio group.
(5) Finalise the shared radio group on a
device of the shared radio group.
f See section "Finalise radio group".
The shared radio group is in operation.
5
To verify, perform the connection test (see
f
section „Connection test to the shared
radio goup").
7 Group connection test
(1) Press and hold the test/stop button
on any device in the radio group for
approx. 12 seconds.
2 short signal tones
(2) Release the test/stop button.
Short signal tone from each
connected device in the ra-
j
dio group
Connection test of the individual
5
devices and the radio group was
successful.
8 Connection test to the
shared radio group
Only possible with devices in the
subgroup.
(1) Press and hold the test/stop button
of any device in the subgroup for
approx. 60 seconds.
3 short signal tones
(2) Release the test/stop button.
Short signal tone from all devices
in the shared radio group
5 Connection test of the individual
devices and the shared radio group
was successful.
9 Restoring factory defaults
(1) Pull out the activation button.
(2) Press and hold the test/stop button
for approx. 2 to 3 seconds.
(3) Press and hold the radio button with
split pin until:
(4) Release the radio button.
5 The device is in its default state.
© Pyrexx Technologies GmbH k_151310
