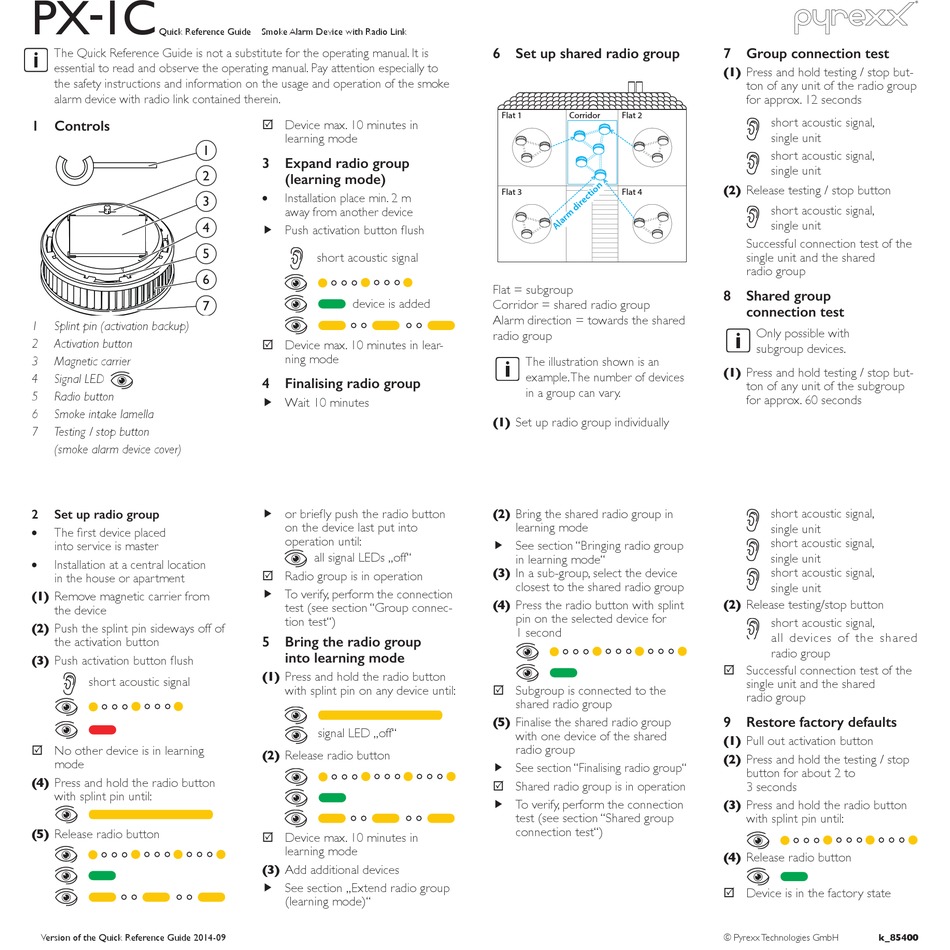

pyrexx PX-IC Kurzanleitung Seite 2

P X - 1C
Quick Reference Guide
The Quick Reference Guide is not a substitute for the operating manual. It is
essential to read and observe the operating manual. Pay attention especially to
the safety instructions and information on the usage and operation of the smoke
alarm device with radio link contained therein.
1 Controls
1
2
3
4
5
6
7
1 Splint pin (activation backup)
2 Activation button
3 Magnetic carrier
4 Signal LED
5 Radio button
6 Smoke intake lamella
7 Testing / stop button
(smoke alarm device cover)
2 Set up radio group
The first device placed
•
into service is master
Installation at a central location
•
in the house or apartment
(1) Remove magnetic carrier from
the device
(2) Push the splint pin sideways off of
the activation button
(3) Push activation button flush
short acoustic signal
5 No other device is in learning
mode
(4) Press and hold the radio button
with splint pin until:
(5) Release radio button
Version of the Quick Reference Guide 2014-09
Smoke Alarm Device with Radio Link
5 Device max. 10 minutes in
learning mode
3 Expand radio group
(learning mode)
Installation place min. 2 m
•
away from another device
f Push activation button flush
short acoustic signal
device is added
5 Device max. 10 minutes in lear-
ning mode
4 Finalising radio group
f Wait 10 minutes
f or briefly push the radio button
on the device last put into
operation until:
all signal LEDs „off"
5 Radio group is in operation
f To verify, perform the connection
test (see section "Group connec-
tion test")
5 Bring the radio group
into learning mode
(1) Press and hold the radio button
with splint pin on any device until:
signal LED „off"
(2) Release radio button
5 Device max. 10 minutes in
learning mode
(3) Add additional devices
f See section „Extend radio group
(learning mode)"
6 Set up shared radio group
Flat 1 Corridor Flat 2
Flat 3 Flat 4
Flat = subgroup
Corridor = shared radio group
Alarm direction = towards the shared
radio group
The illustration shown is an
example. The number of devices
in a group can vary.
(1) Set up radio group individually
(2) Bring the shared radio group in
learning mode
f See section "Bringing radio group
in learning mode"
(3) In a sub-group, select the device
closest to the shared radio group
(4) Press the radio button with splint
pin on the selected device for
1 second
5 Subgroup is connected to the
shared radio group
(5) Finalise the shared radio group
with one device of the shared
radio group
f See section "Finalising radio group"
5 Shared radio group is in operation
f To verify, perform the connection
test (see section "Shared group
connection test")
7 Group connection test
(1) Press and hold testing / stop but-
ton of any unit of the radio group
for approx. 12 seconds
short acoustic signal,
single unit
short acoustic signal,
single unit
(2) Release testing / stop button
short acoustic signal,
single unit
Successful connection test of the
single unit and the shared
radio group
8 Shared group
connection test
Only possible with
subgroup devices.
(1) Press and hold testing / stop but-
ton of any unit of the subgroup
for approx. 60 seconds
short acoustic signal,
single unit
short acoustic signal,
single unit
short acoustic signal,
single unit
(2) Release testing/stop button
short acoustic signal,
all devices of the shared
radio group
5 Successful connection test of the
single unit and the shared
radio group
9 Restore factory defaults
(1) Pull out activation button
(2) Press and hold the testing / stop
button for about 2 to
3 seconds
(3) Press and hold the radio button
with splint pin until:
(4) Release radio button
5 Device is in the factory state
© Pyrexx Technologies GmbH k_85400
