MRU SPECTRA plus Kurzbedienungsanleitung Seite 2

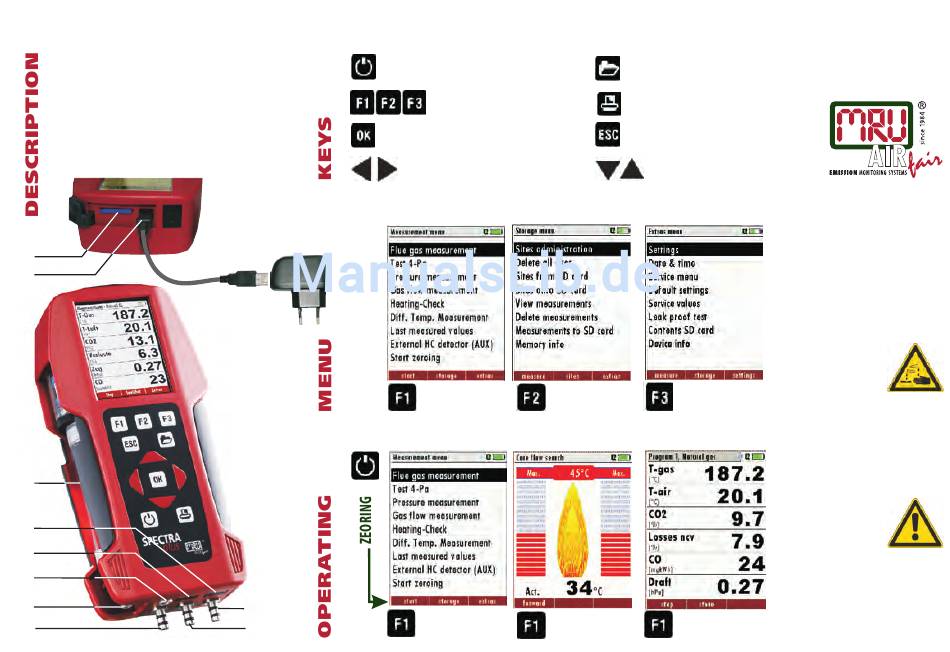

QUICK-START GUIDE
1 Condensate separator
2 Sampling probe connection
3 Connection T-Gas & AUX
4 Temperature connection 2
5 Temperature connection 1 / T-Ambient air
6 Pressure connection 1 (Draft)
7 Pressure connection 2 (Differential pressure)
8 Pressure connector 3 (2.Pressure sensor)
9 USB-port and charging port
10 SD-card reader
Connectors-top
10
USB
9
1
5
4
3
2
6
MRU battery charger
100 ... 240 Vac
7
8
Switch ON/OFF
(with battery operation)
Function keys
(according to function key bar)
Confirmation key
Selection keys
change values
MEASUREMENT STORAGE
SPECTRA
Menu key
show all available functions
Printer key
ESC key / cancel
Selection keys
move cursor
www.mru.eu
If the grid power is connected,
the SPECTRAplus is always
switched on. In this situation the
battery is continously checked
and if necessary charged!
ATTENTION:
EXTRAS
Make sure to empty and
dry condensate separator
after measurement!
Read and notice operating
manuals carefully before
commissioning!
Data to change w/o notice 20110516
plus
