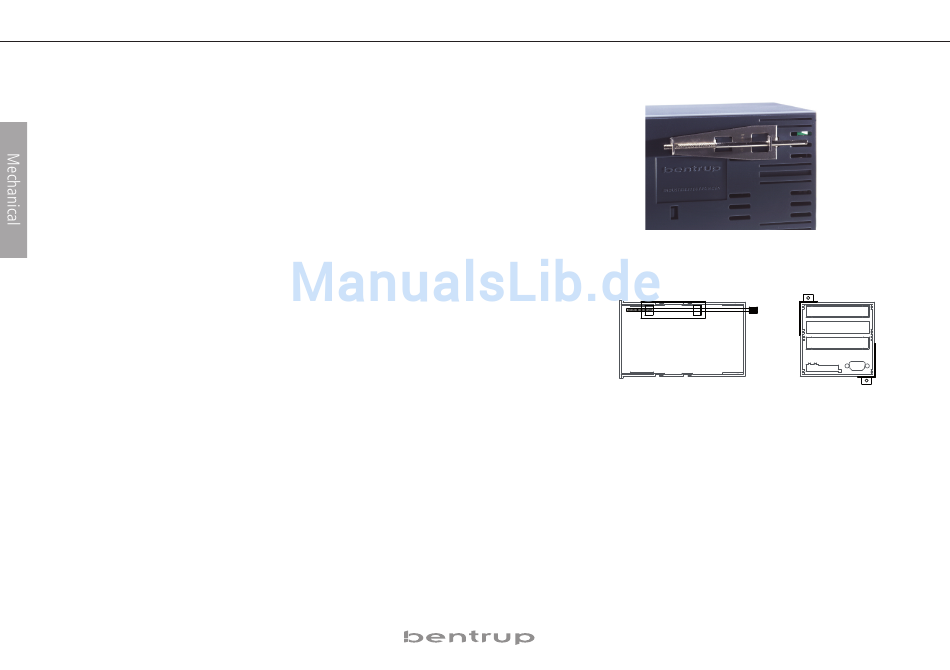

Mechanical Installation
TC-S2 comes in a standard 96x96mm DIN case for panel mounting. The recommended panel
cutout dimension is 92x92mm, the controllers depth is 155mm (175mm space for leads etc.).
Use the two stainless steel brackets to fix the controller into the panel. Do not overtighten the
screws to avoid case distortion.
If you need to build an array of TC-S2 close together (e.g. master / slave operation) ask us for
the specially designed "narrow brackets". These brackets allow very close arrangement of TC-S2
as well as they have long knurled screws to allow tool-free assembly / disassembly.
Ambient Conditions
Make sure that the ambient temperature does not exceed 50°C (122°F). Maximum power dissi-
pation of TC-S2 is 18 W only.
TC-S2 is tolerant to humidity as long it is non-condensing. If enviromental conditions might
cause this issue install climatization in your control panel. Especially during winter, allow con-
troller to warm up to room temperature before powering up. This allows condensing water
which builds up on cold surfaces to evaporate before electrical damage occurs.
Although TC-S2 complies to highest passive EMC levels we recommend - as a basic rule - to
keep away from high noise emitting components like contactors or lines driven by frequency
inverters. The use of noise suppressing devices is always recommended. Note that even if such
noise does not affect controller operation it will cause induction to all signal lines. TC-S2 is fit-
ted with intelligent filters, however, compensation is limited by physical laws.
16
top view
side view
top view
back view (shown w/o axis)
operating instructions bentrup TC-S2 V1.1
side view
Notches to lock case
like on prev. brackets
back view (shown w/o axis)
Notches to lock case
like on prev. brackets
