c) Inserting the SDhC memory card

You can record pictures and videos with the BS-1500T. They are saved on the SDHC-card. The enclosed card has a
storage capacity of 4 GB. Cards with up to 32 GB are supported.
Now insert the memory card into the endoscope basic
device.
Before starting, switch off the device and disconnect the
plug-in mains unit if connected.
• As when charging the rechargeable battery, pull out the
rubber cover on the right and fold it to the side.

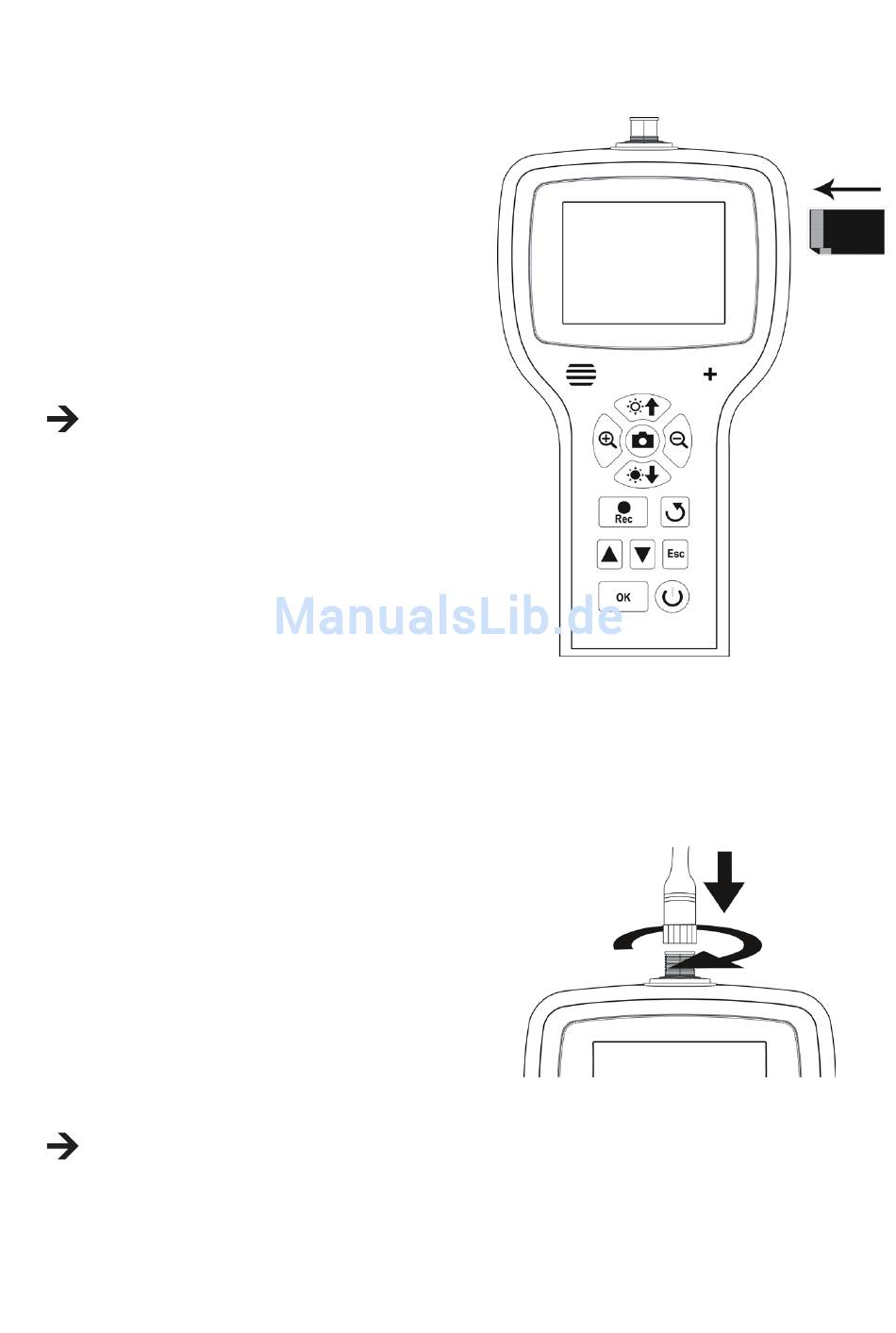

• Push the card into the memory card slot C1 until it latches.
The contacts must point to the top and to the left as shown
on the right.
To remove the memory card again, switch off the BS-
1500T first. Push the card to unlatch it and then pull it
from the slot.
d) Connection of an endoscope camera
Now connect a compatible endoscope camera (e.g. the 1214310) to the BS-1500T.
It is possible that an adapter or adapter cable is needed to connect the camera to the basics device. If this is the
case with your camera, just plug the adapter between the endoscope basic device and the camera.
To connect a compatible camera to the 8-pin plug of the BS-1500T, proceed as follows.
• If you have switched on the device, switch it off again at
first (chapter 8 e).
• Push the 8-pin plug of the camera onto the connection A1
of the BS-1500T. The proper orientation can be told by
the guide in the plug. For the endoscope basic device, it
points to the front.
When pushing on, ensure that you do not bend or break
off any pins.
• Turn the closure of the camera plug clockwise until it is
tightened hand-tight.
To remove the camera again, switch off the BS-1500T first and screw open the metal closure again (turn
counter-clockwise). Then remove the camera.
