Structure in principle
H310
-V CAN- Shield
120
0
Controller 1
Total length
Cable type
Cable resistance
Capacitance per unit length
Connection
A terminating resistance of 120 Ω must be connected between the
terminals CAN-LOW and CAN-High at the first and last participant of a
system bus.

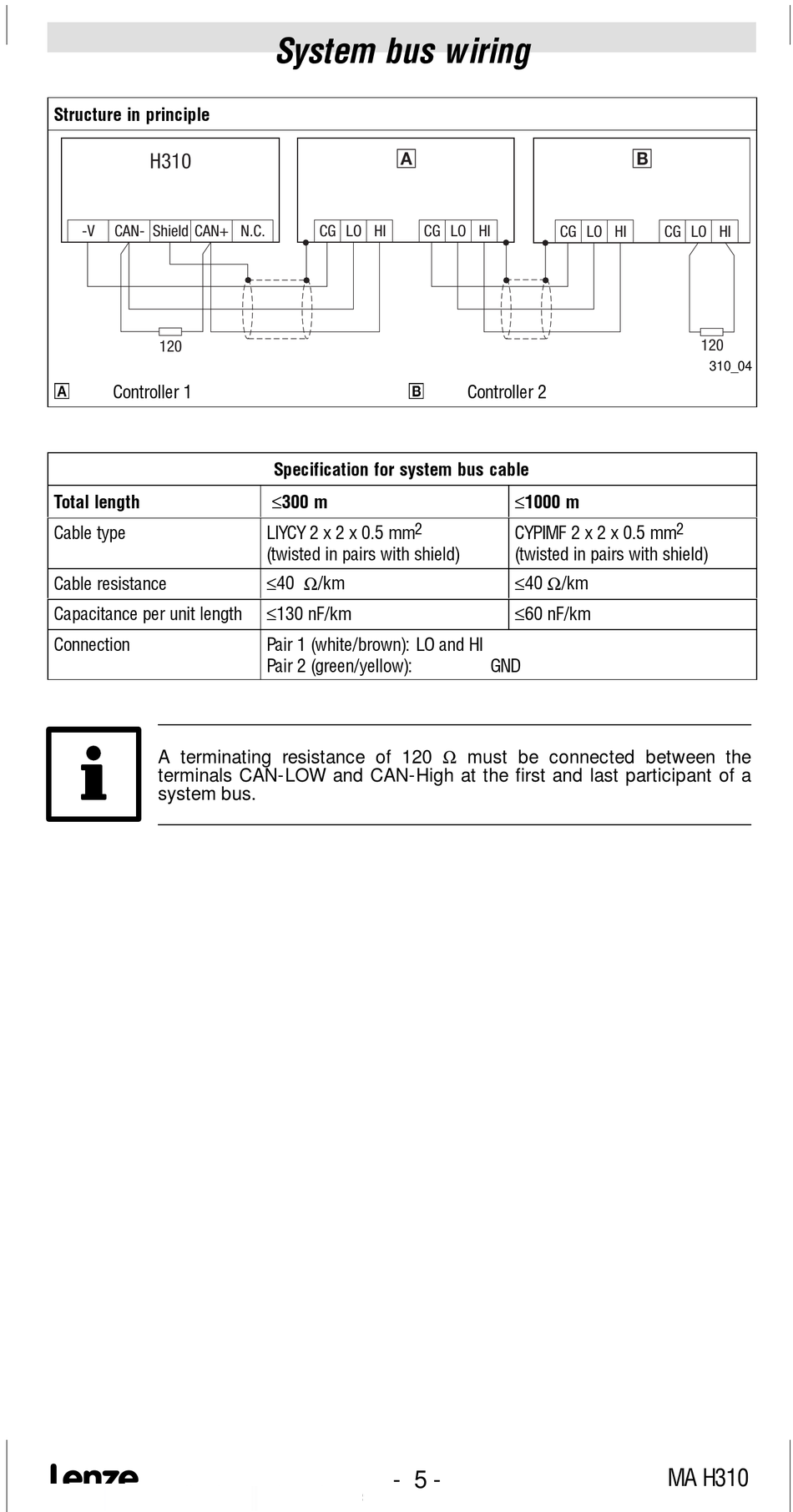

System bus wiring
CAN+ N.C. CG LO HI
Specification for system bus cable
≤300 m
LIYCY 2 x 2 x 0.5 mm
(twisted in pairs with shield)
≤40 Ω/km
≤130 nF/km
Pair 1 (white/brown): LO and HI
Pair 2 (green/yellow):
0
CG LO HI
1
Controller 2
≤1000 m
2
CYPIMF 2 x 2 x 0.5 mm
(twisted in pairs with shield)
≤40 Ω/km
≤60 nF/km
GND
- 5 -
1
CG LO HI CG LO
120
2
MA H310
HI
310_04
