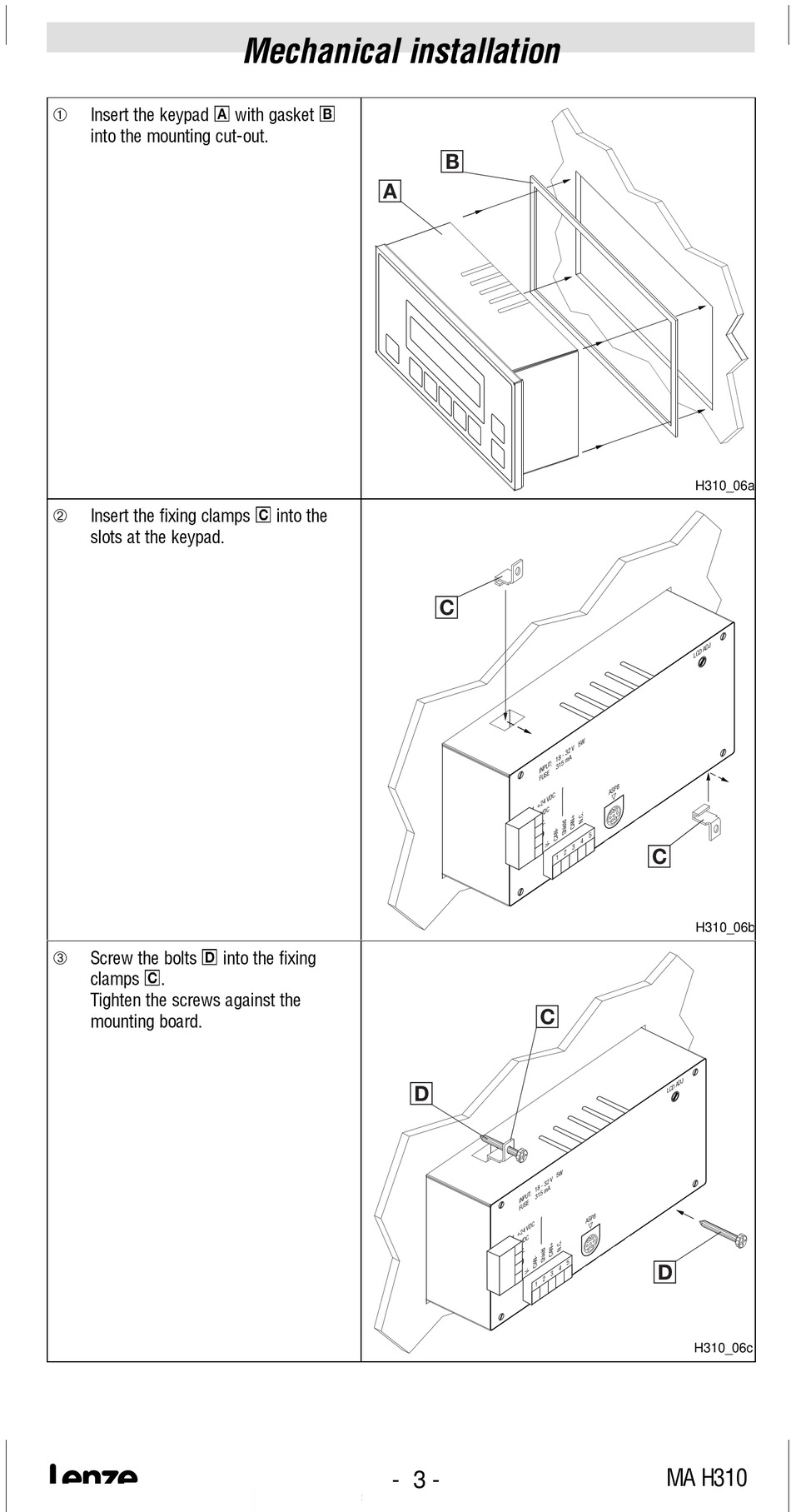

Insert the keypad
into the mounting cut-out.
Insert the fixing clamps
slots at the keypad.
Screw the bolts
2
clamps .
Tighten the screws against the
mounting board.
