Réalisation de mesures
a) Préparation pour la mesure
• Coupez un morceau d'env. 5 mm du film réfléchis-
sant autocollant,
• collez ce morceau sur l'arbre ou la pièce à mesurer.
Attention !
Les pièces rotatives doivent absolument se
trouver à l'arrêt avant de fixer les repères
réfléchissants; assurez la machine contre
toute remise en marche intempestive !
• Assurez un contraste clair-sombre convenable, au
besoin noircissez l'objet (dans la zone de rotation du
repère réfléchissant).
b)Mesure de tours-minute
• Appuyez sur la touche de mesure (1) et maintenez-la
enfoncée.

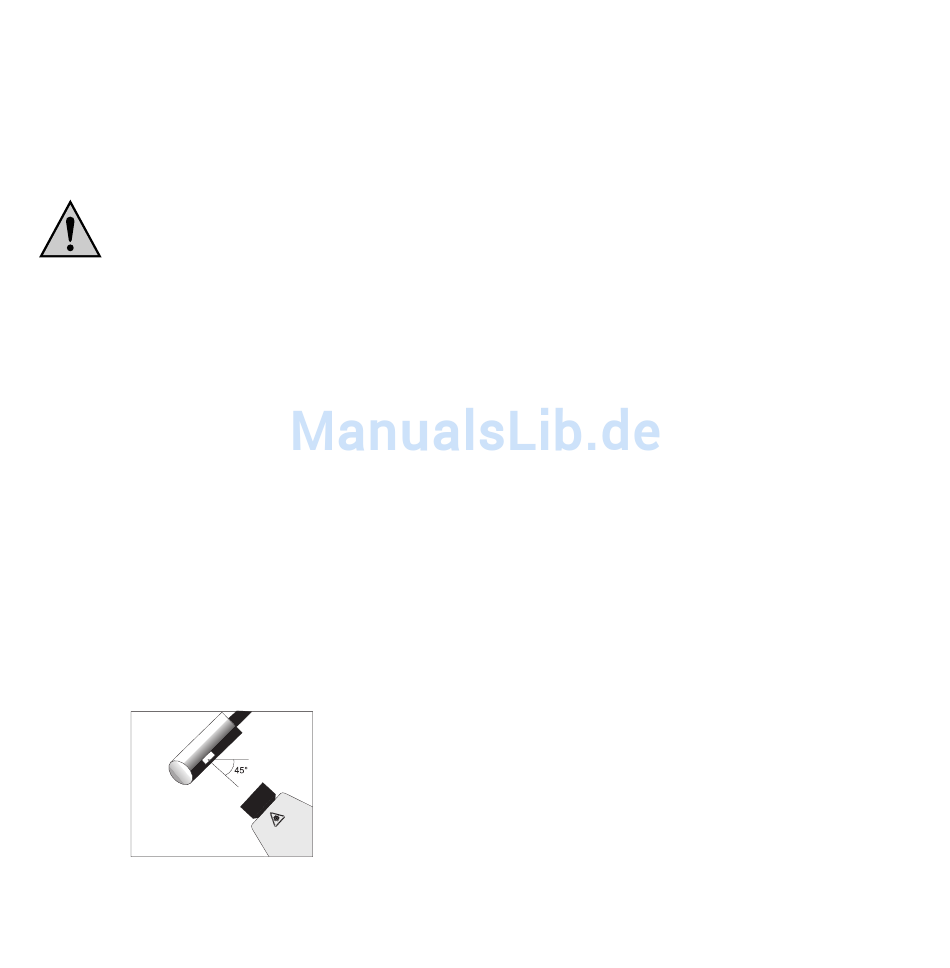

• Dirigez le rayon laser à un angle de +/- 45° vers le
repère réfléchissant; la distance entre le compte-
tours et le repère peut atteindre jusqu'à 100 cm. Lor-
sque la réflexion est correcte, l'écran affiche en haut
à droite un symbole de saisie "((o))" qui clignote au
rythme de saisie du repère réfléchissant ou est
affiché en permanence pour les rotations élevées.
• L'écran (3) affiche la valeur en "RPM" = rotations par
minute.
36

Functional description

The Digital Tachometer DT1L is a high-precision optical
measuring instrument for the measurement of revoluti-
ons of moving components. The measured value is indi-
cated precisely in "rpm" (revolutions per minute) in the
5-digit microprocessor-controlled LCD display.
The contact-free measuring process is performed using
reflectors affixed to the object to be measured. It is pos-
sible to measure small points of measurement up to
100 cm distant thanks to the built-in laser beam.
Due to the good reflective properties of the lasers, an
extremely acute measuring angle can be achieved.
Measurements are therefore possible even under diffi-
cult environmental conditions and with poor access.
This measuring instrument can be used universally in
the hobby area as well as in industrial or educational
fields.
A 'battery low' indication in the display (battery symbol)
signals the need to change the battery soon.
Three type AA alkaline batteries are required / used for
power.

Items supplied

Digital Tachometer
2 strips of self-adhesive reflectors
Storage box
Instructions
21
