Callisto™ Instructions for Use - EN

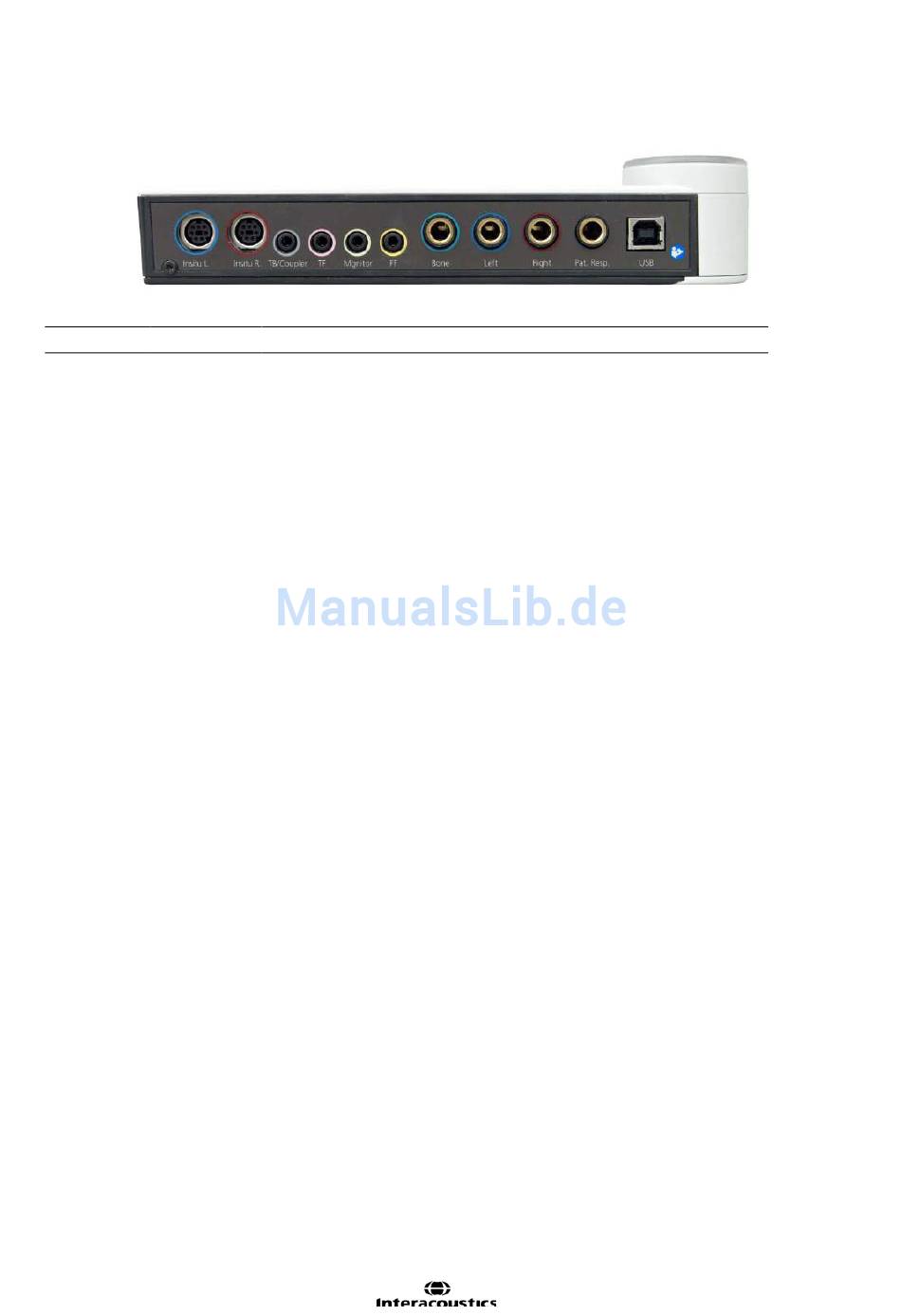

2.3 Callisto™ - connection panel dictionary
1
Position:
Symbol:
1
Insitu L.
2
Insitu R.
3
TB/Coupler
4
TF
5
Monitor
6
FF
7
Bone
8
Left
9
Right
10
Pat. Resp.
11
USB/PC
2.4 Callisto™ - indicators:
GREEN-Light: Ready
RED-Light:
Indicates right ear selected in REM mode
BLUE-Light:
Indicates left ear selected in REM mode
PURPLE-Light: Indicates both ears selected in REM mode
2
3
4
5
6
Function:
Connection of Insitu Headset Left
Connection of Insitu Headset Right
Socket for talk back microphone or coupler base
Socket for talk forward or microphone
Socket for monitor headset
Socket for free field speaker
Socket for bone conductor
Socket for left AC headphone/Insert phone
Socket for right AC headphone/Insert phone
Socket for patient response button
Socket for USB cable to PC
7
8
9
10
Page 8
11
