2.4 Voltages, types of connection and versions
2.5 Mains fuses
2.6 Electrical connection
This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and
local regulations in force in the country of installation. This appliance must be earthed. Ensure that the plug/socket is
accessible at all times. Models up to 3kW are fitted with a plug and lead. Models over 3kW must be installed by a
qualified electrician.
a) Check that the specifications of the electrical mains correspond to those given on the rating plate. This plate is
located on the control panel inside the door.
b) Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of
this appliance. The fixed wiring insulation must be protected by insulated sleeving having a temperature range of
at least 60 Deg C. Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 6024 IEC 57).
c) An equipotential bonding terminal is provided to allow cross bonding with other equipment.
d) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
e) If replacing the plug connect the terminals as follows:
Green and yellow cable
Blue cable
Brown cable

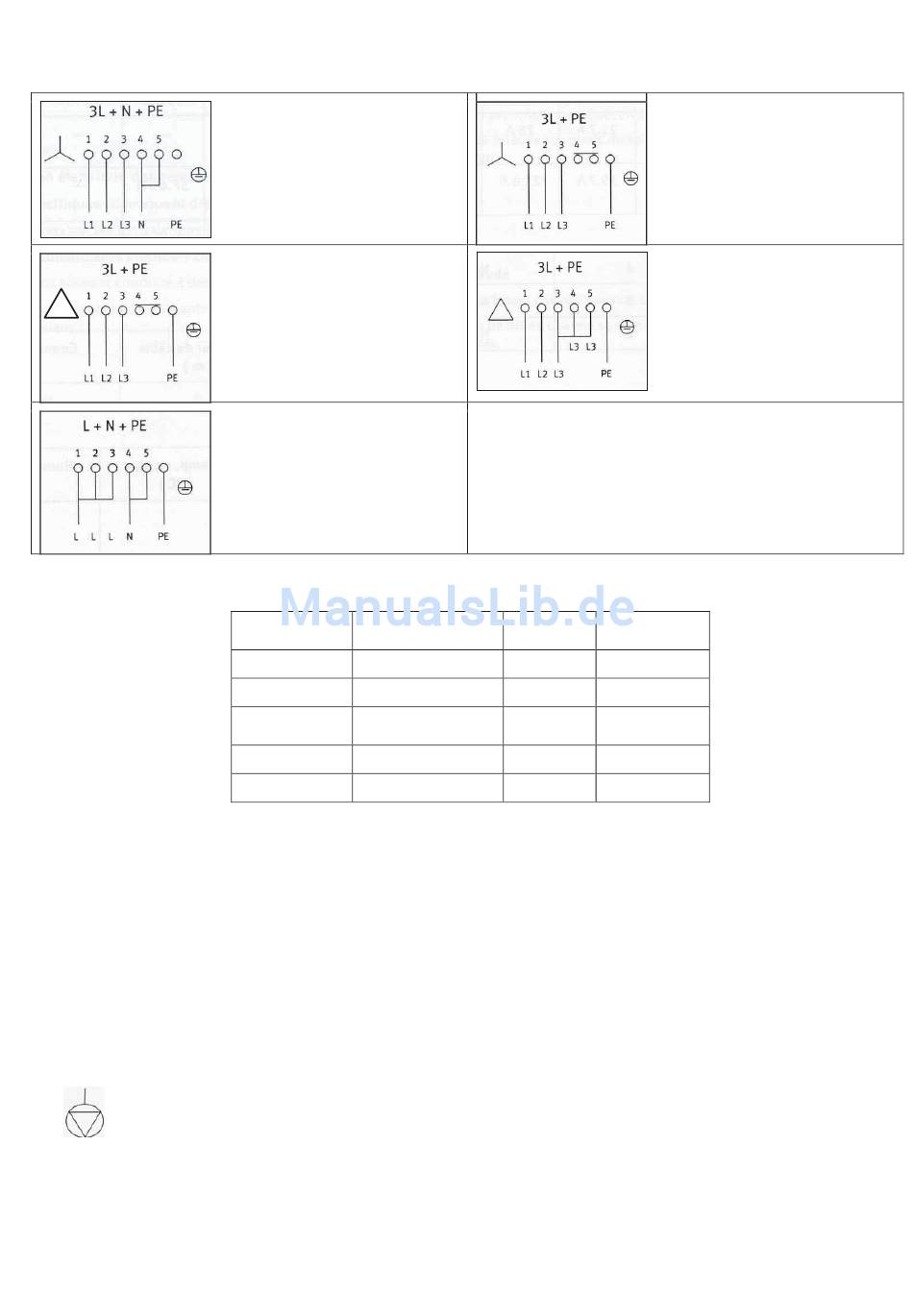

Standard version three phase
with neutral and earth
Voltage three-phase 3N~400 V
50/60Hz - 3L + N + PE
Special version for ships
Voltage three-phase 3~440 V
50/60Hz : 3L + PE
Special single-phase version
Voltage single-phase ~ 230V
50/60Hz - L + N + PE
Type
Power
~ 230V
10A – 17.3A –
3 ~ 230V
2N~ 400V
3N~ 400V
Earth E
Neutral N
Live L
Profi 8 /
Profi 6
Profi 10
4.6 Kw 6.9 Kw
20.8 A 31 A
3 x 17.3 A
10A
2 x 10A -
- 3 x 10 A
Special version without neutral
Voltage three-phase 3~ 400 V
50/60Hz - 3L + PE
Special version three-phase
without neutral
Voltage three-phase 3~ 230 V
50/60Hz - 3L + PE
Profi 10
9.2 Kw
40 A
3 x 23.9 A
-
3 x 13.3 A
