6. ASSEMBLY INSTRUCTIONS

Take all parts out of the packaging carefully and place them on a flat surface. When doing this,
use suitable padding to protect the working surface. Assembly of the individual parts should
be carried out by 2 people!
Some parts have already been pre-assembled to simplify the assembly process for you.
STEP 1

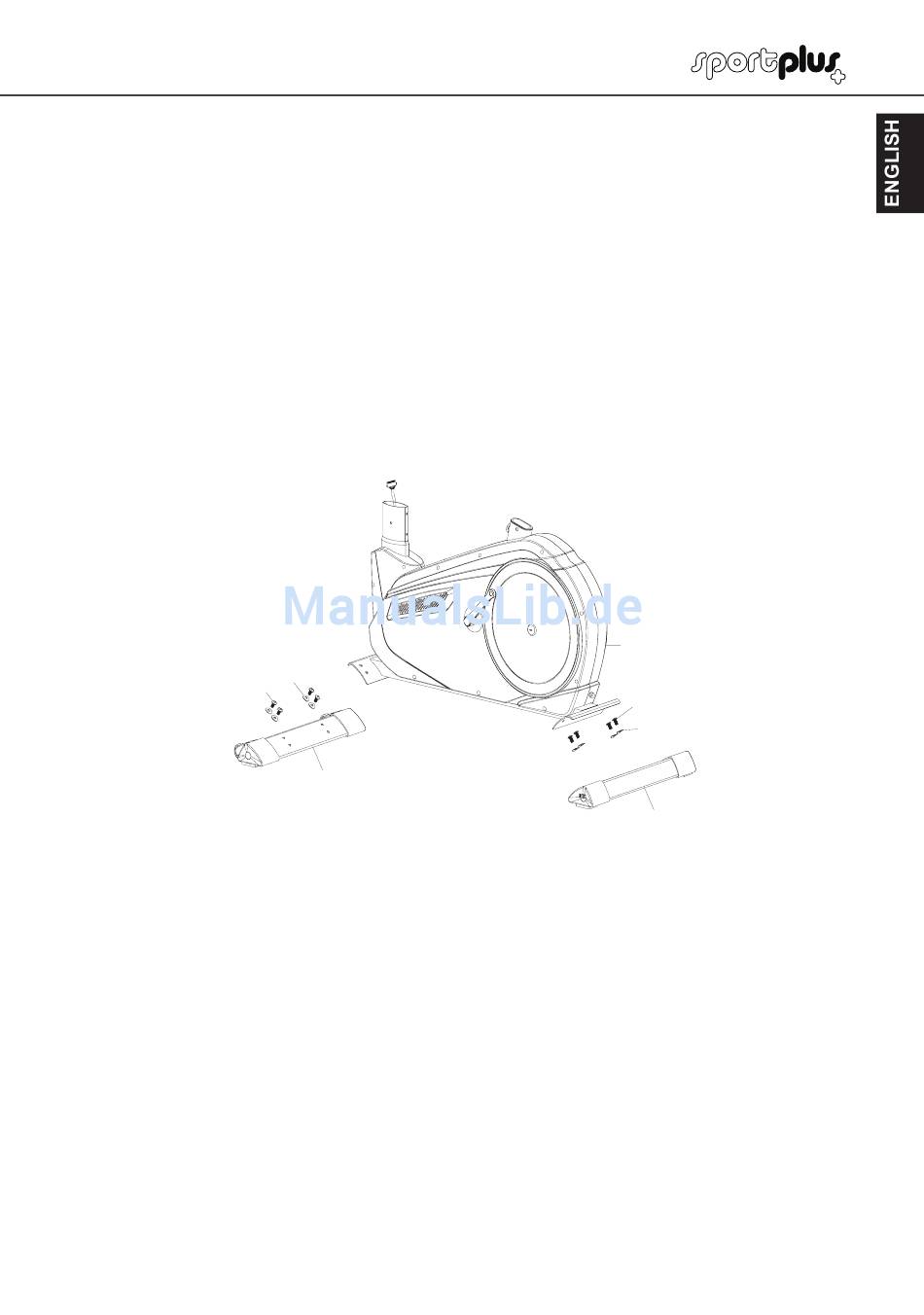

15 16
1. Attach the front base column (2) to the main frame (1). Secure the connection with 4 hex
screws (15) and 4 bent washers (16).
2. Attach the rear base column (3) to the main frame (1). Secure the connection with 4 hex
screws (15) and 4 bent washers (16).
