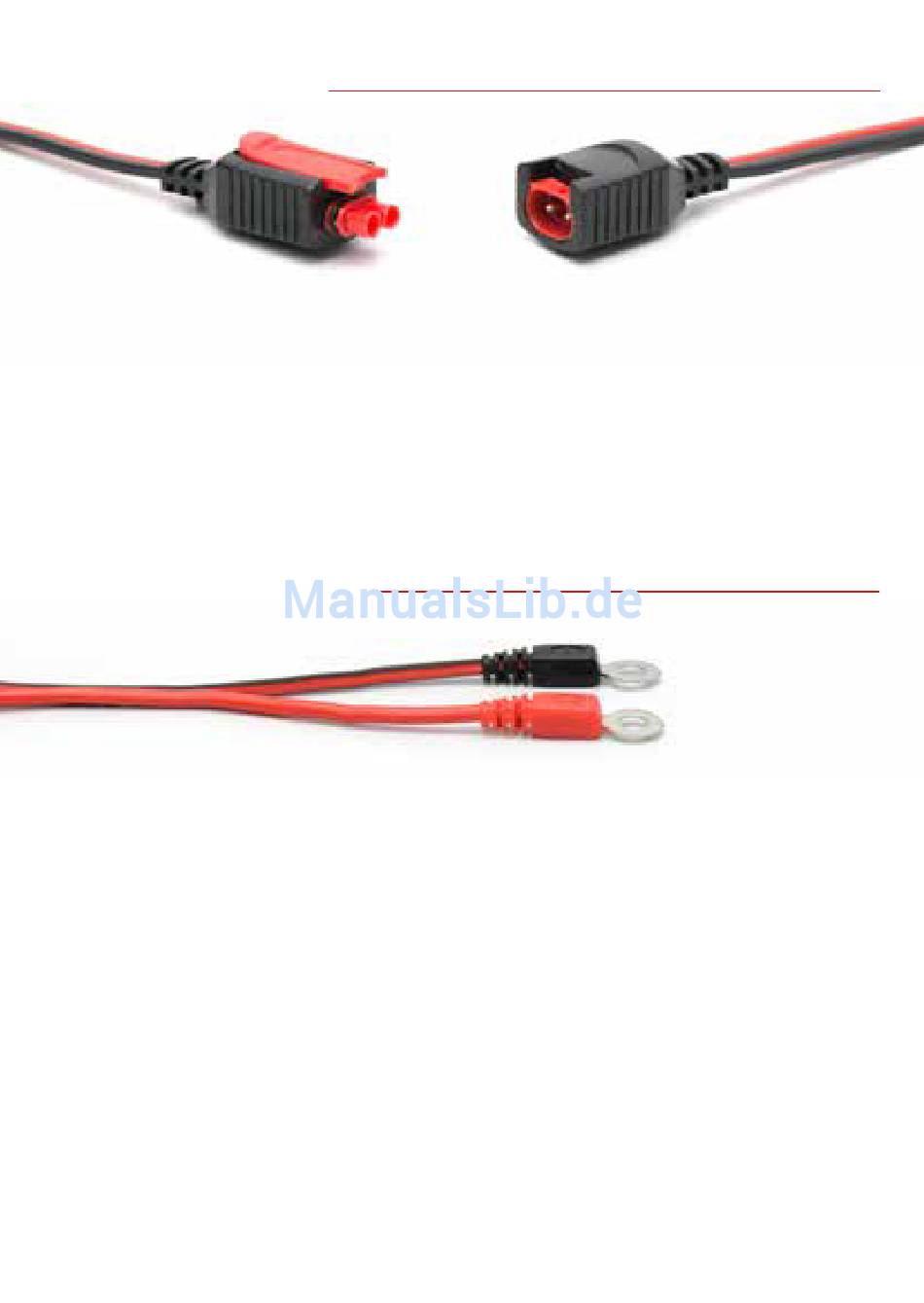

10. Quick connector

You can use the ProCharger quick connector to connect charger clamp cables, ring
terminal cables and other compatible ProCharger accessories to the ProCharger
charger. To do so, both parts of the quick connector are joined together so that they
engage in place. The plug-in connector on the quick connector is reverse polarity
protected and can only be connected in one position.
To disconnect this connection, you have to actuate the red rocker on the adapter and
unfasten the plug-in connector by gently pulling it apart. In the process, never
pull or push on the cable; always take hold of the housing of the plug-in connector.

11. Ring terminal cable

The ring terminal cable is designed for permanent connection to the vehicle battery.
First disconnect the motorcycle earth connection from the battery. Then, screw the red
ring connector (plus) of the ring terminal cable on the battery's positive terminal. Then,
screw the black ring connector (minus) of the ring terminal cable on the battery's
negative terminal. Then, re-connect the motorcycle's earth connection to the negative
terminal on the battery. In the process, proceed with care. It is imperative that you
prevent short circuits and make sure the contact is secure. The ring terminal cable
has to be attached to the vehicle so that it cannot be trapped, does not rest directly
on the hot motor and is kept away from all moving parts. Since this is a universal
product, you must make sure that the ring terminal cable can be used properly and
without problems with your type of vehicle before using it for the first time. In the
process, it is imperative that you adhere to the specifications and guidelines of the
vehicle and battery manufacturer.
