4.1 Mechanical mounting

Remote display failure
` When mounting pay attention to the IP type of protection (see chap-
ter 8).
` Do not open the remote display yourself.
` Avoid impact on the device.
` Do not modify the device in any way.
Loss of type of protection
If operated with an open connection, the type of protection will be lost.
Preparing mounting
1. Stick the attached self-adhesive sealing plate
the bearing support (to ensure the type of protection, correct uneven
spots).
2. Make the bore (øD1) for torque support
tening bore.
3. Make bore or thread (øD) for fastening by means of flat head screw M5
3 .
Mounting (Fig. 1, Fig.
1. Insert remote display including sealing plate into existing bores
(mounting with no strain).
2. Tighten the flat head screw M5




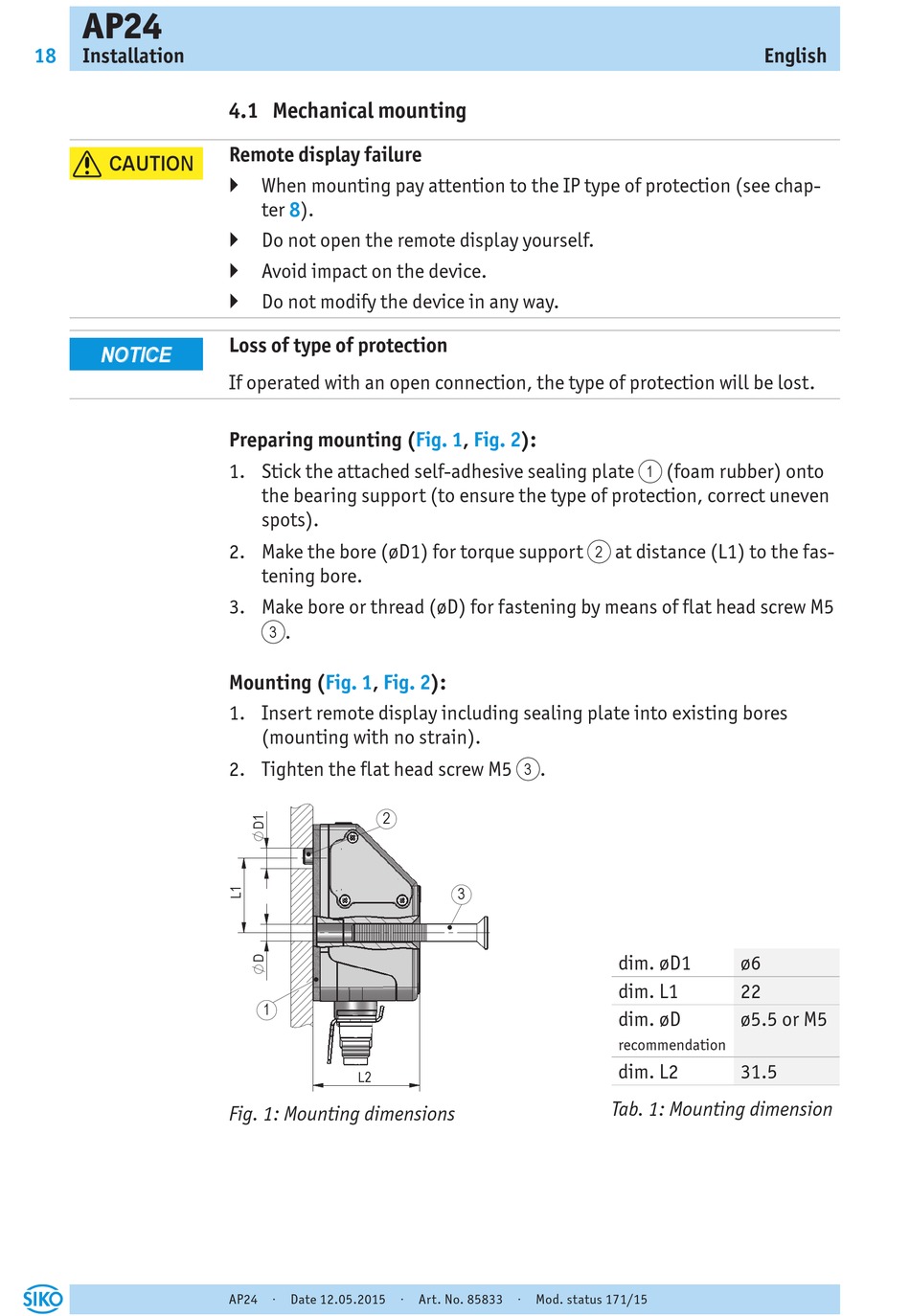

Fig. 1: Mounting dimensions
AP24 · Date 12.05.2015 · Art. No. 85833 · Mod. status 171/15
(Fig. 1, Fig. 2):
2):
.
3

English
(foam rubber) onto
1
2 at distance (L1) to the fas-
dim. øD1 ø6
dim. L1 22
dim. øD ø5.5 or M5
recommendation
dim. L2 31.5
Tab. 1: Mounting dimension
