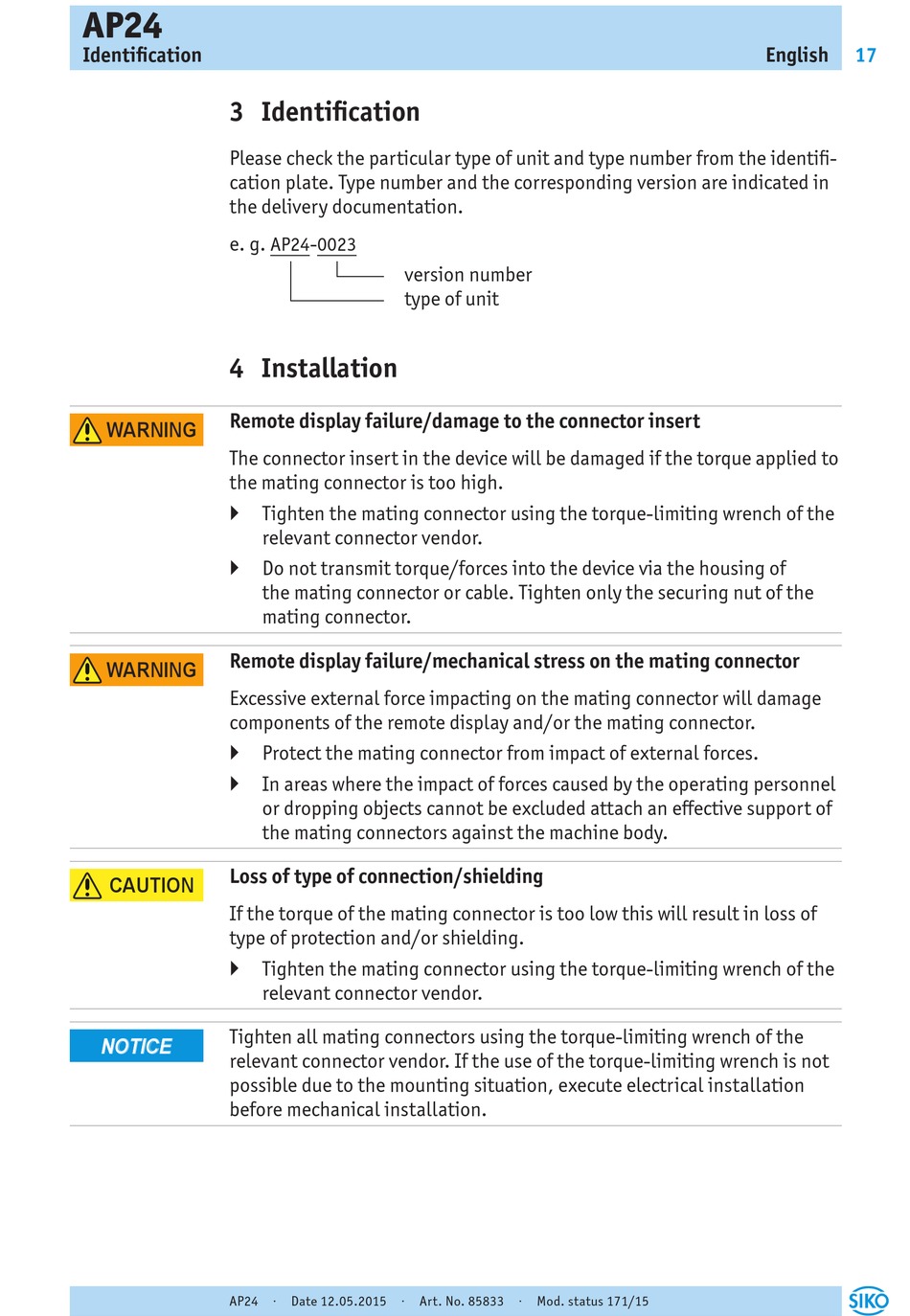

Identification; Installation - Siko Ap24 Originalmontageanleitung

AP24

Identification

3 Identification
Please check the particular type of unit and type number from the identifi-
cation plate. Type number and the corresponding version are indicated in
the delivery documentation.
e. g.

4 Installation

Remote display failure/damage to the connector insert
WARNING WARNING
The connector insert in the device will be damaged if the torque applied to
the mating connector is too high.
` Tighten the mating connector using the torque-limiting wrench of the
` Do not transmit torque/forces into the device via the housing of
Remote display failure/mechanical stress on the mating connector
WARNING
Excessive external force impacting on the mating connector will damage
components of the remote display and/or the mating connector.
` Protect the mating connector from impact of external forces.
` In areas where the impact of forces caused by the operating personnel
Loss of type of connection/shielding
CAUTION
If the torque of the mating connector is too low this will result in loss of
type of protection and/or shielding.
` Tighten the mating connector using the torque-limiting wrench of the
Tighten all mating connectors using the torque-limiting wrench of the
NOTICE
relevant connector vendor. If the use of the torque-limiting wrench is not
possible due to the mounting situation, execute electrical installation
before mechanical installation.
AP24 · Date 12.05.2015 · Art. No. 85833 · Mod. status 171/15
-
AP24 0023
version number
type of unit
relevant connector vendor.
the mating connector or cable. Tighten only the securing nut of the
mating connector.
or dropping objects cannot be excluded attach an effective support of
the mating connectors against the machine body.
relevant connector vendor.
English 17
