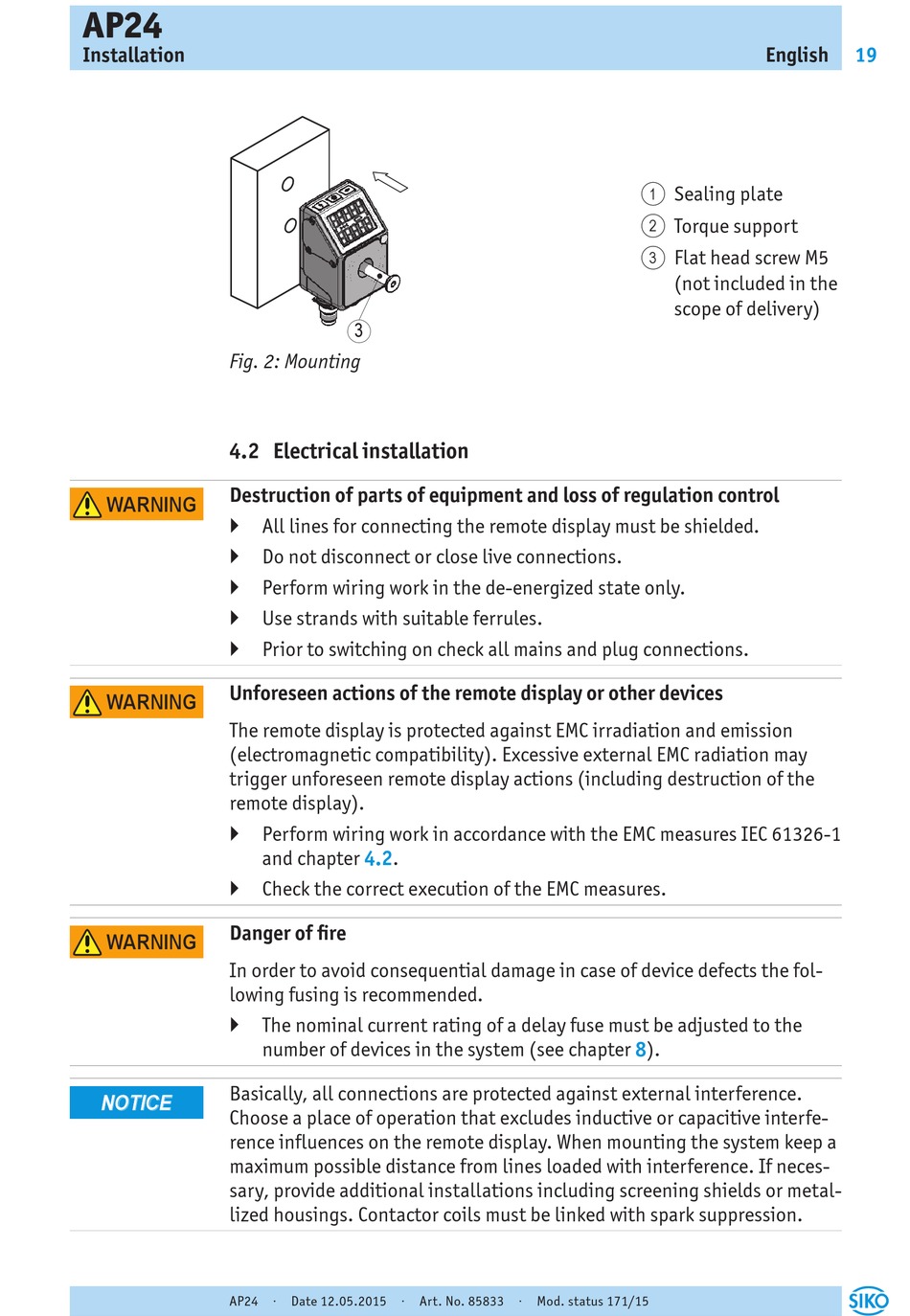

Fig. 2: Mounting

4.2 Electrical installation

Destruction of parts of equipment and loss of regulation control
WARNING
` All lines for connecting the remote display must be shielded.
` Do not disconnect or close live connections.
` Perform wiring work in the de-energized state only.
` Use strands with suitable ferrules.
` Prior to switching on check all mains and plug connections.
Unforeseen actions of the remote display or other devices
WARNING
The remote display is protected against EMC irradiation and emission
(electromagnetic compatibility). Excessive external EMC radiation may
trigger unforeseen remote display actions (including destruction of the
remote display).
` Perform wiring work in accordance with the EMC measures IEC 61326-1
` Check the correct execution of the EMC measures.
Danger of fire
WARNING
In order to avoid consequential damage in case of device defects the fol-
lowing fusing is recommended.
` The nominal current rating of a delay fuse must be adjusted to the
Basically, all connections are protected against external interference.
NOTICE
Choose a place of operation that excludes inductive or capacitive interfe-
rence influences on the remote display. When mounting the system keep a
maximum possible distance from lines loaded with interference. If neces-
sary, provide additional installations including screening shields or metal-
lized housings. Contactor coils must be linked with spark suppression.
