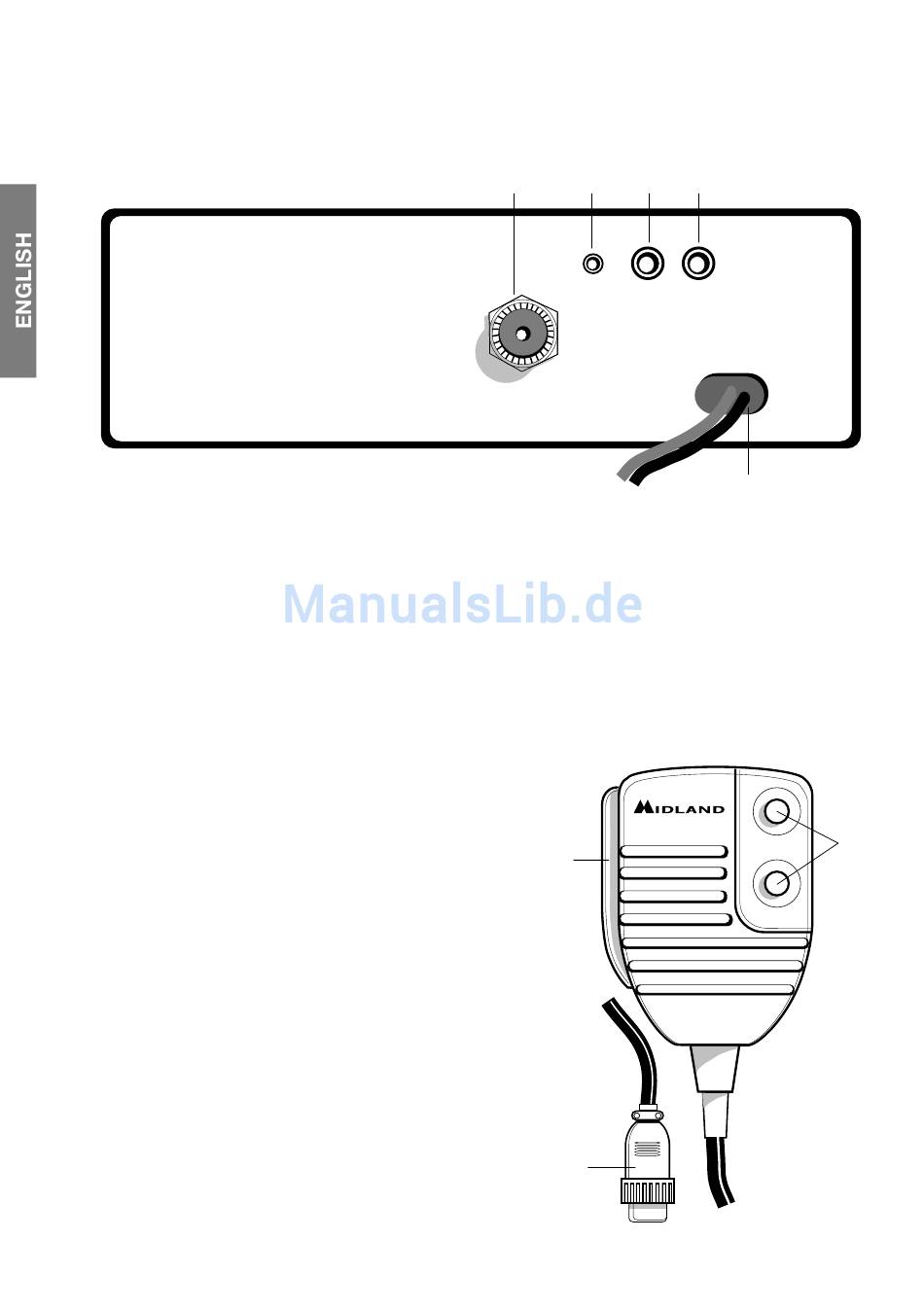

REAR PANEL

19 20 21 22
PA EXT
S-METER
ANTENNA
23
19. Antenna connector (SO239 connector type).
20. S.Meter jack: it allows an external "s meter" connection.
21. "PA" jack: by connecting with an external loudspeaker, you can use the unit as
an audio-amplifier.
22. "EXT" jack: external loudspeaker jack (the internal loudspeaker is excluded).
23. Power 13.2 Vdc: power supply cable.
2
UP
MICROPHONE
1
1. PTT: transmission button
2. UP/DOWN buttons: manual channels selector.
DOWN
3. 6 pin microphone connector.
3
6 6
