RX TI 24, RX PW 1, RX TI RB

7 day Programming Cassette

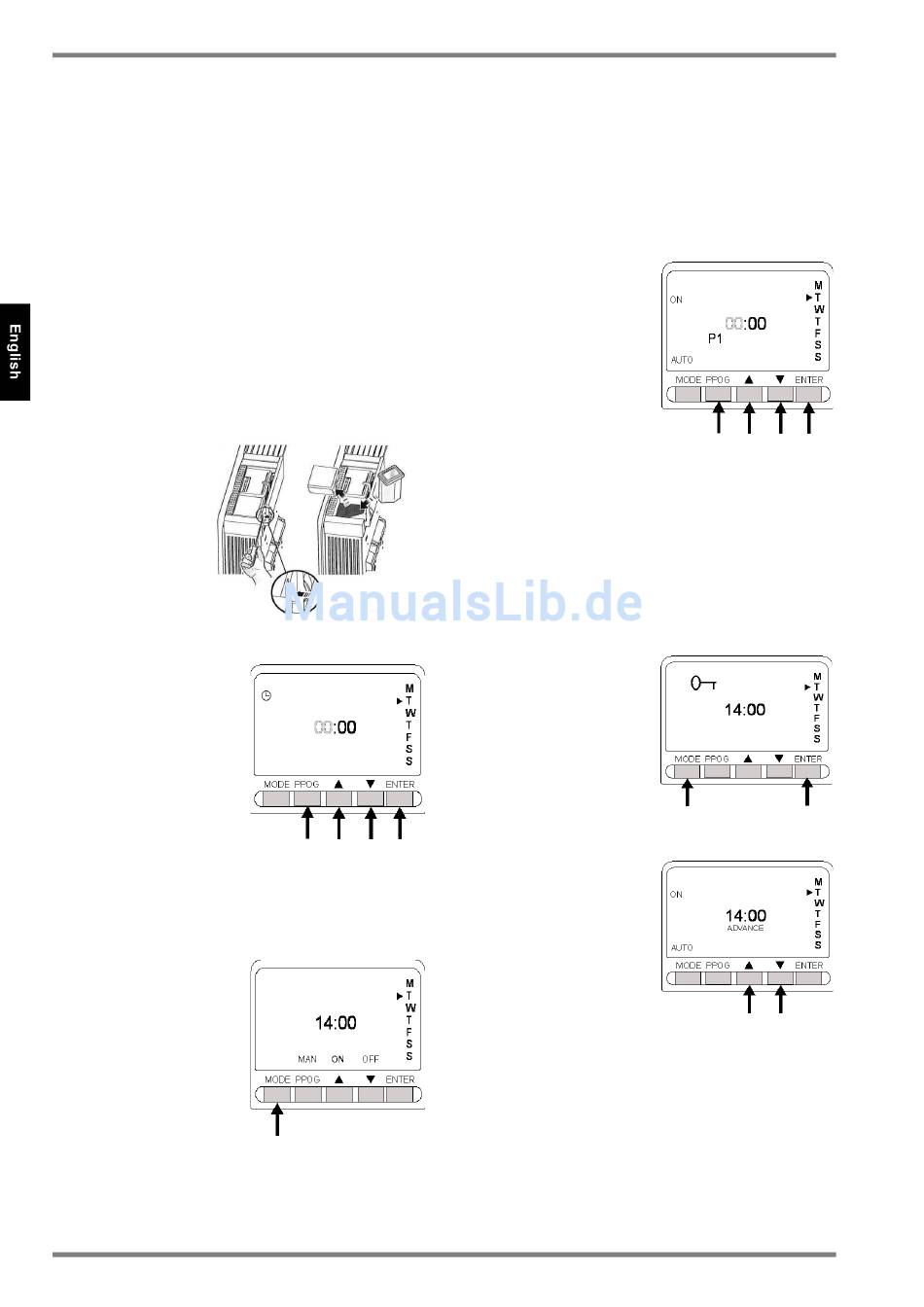

1. Description RX PW 1
The programming cassette allows you to program for the
weekdays Monday to Friday as well as for the weekend, i.e.
Saturday to Sunday, up to 4 different time block in each case,
during which the heater is switched on. The programming
cassette can be used individually, i.e. for one heater, or seri-
ally, i.e. for a group of heaters (e.g. for a complete dwelling
unit).
In the case of serial use, one heater is fitted with the program-
ming cassette. This unit is the so-called "master control".
After the electrical wiring (as shown in the installation instruc-
tions of the heater) has been completed, all time functions set
on the master device will be transmitted to each slave heater
connected in series. The heating program preset on the mas-
ter device (time blocks for On/Off) will also be executed on all
slave heaters.
2. Installation
Turn off heater and
carefully tilt it toward the
front. With a flat-blade
screwdriver push latch-
ing clip of cover in the di-
rection of the arrow and
remove cover. Slide cas-
sette all the way into the
opening.
3. Setting the Time an Day
Press the PROG button. The
"clock" symbol appears in the
upper left corner of the display
and the hours flash. Set the
hours using the ▼▲ buttons,
confirm with ENTER. Use the
same procedure to set the
minutes. Confirm with ENTER.
.
The weekday indicator ►
flashes. Select the individual
weekdays using the ▼▲ buttons and confirm with ENTER.
M Monday T Tuesday
F Friday S Saturday
4. Manual Switching On/Off Mode
Switch on the heater (indicator
lamp is illuminated). Press the
MODE button until MAN ON
appears on the display. The
device is switched on. If you
wish to switch the device off,
press MODE once more. The
display MAN OFF appears.
The device is switched off.
EN-8
W Wednesday T Thursday
S Sunday
RXTI24_RXPW1_RXTIRB_gb · 07/14/A
5. Automatic Mode
Switch on the heater. First, the weekdays Monday to Friday
are set. Press the PROG button twice. P1 ON appears on the
display and the hours flash. Set the hours using the ▼▲ but-
tons, confirm with ENTER. Use the same procedure to set the
minutes. Confirm with ENTER.
Note: Minutes can be set in 10-minute increments only!
P1 OFF now appears on the
display. Set the desired
switch-off time and confirm
with ENTER. Program P1 has
thus been set. P2 now ap-
pears, i.e. another heater op-
erating time can be pro-
grammed. Programs P3 and
P4 can be set in the same
ma.nner. After the P4 OFF dis-
play has been con-firmed, the
program switches to the setting mode for the two weekend
days Saturday and Sunday. The procedure for setting these
time blocks is the same as for the weekdays. The arrow on
the right of the display marks the currently selected day.To
prematurely abort the setting procedure, press the PROG
button. All values already set will be retained.
For the preset programs to be executed, the programming
cassette must be in the AUTO (automatic) mode. The operat-
ing mode can be selected by means of the MODE button.
6. Key Lock Setting
Successively press ENTER
and MODE. The buttons must
be pressed within 1 second.
The key symbol appears on
the display. All key functions
are locked. When the key com-
bination is pressed once more,
the keys are unlocked.
7. ADVANCE Mode
The ADVANCE mode enables the heater to provide instat
heat, i.e. before the preset
starting time.
Example: It is 2 p.m. A heater
operating time from 5 p.m. – 7
p.m. has been programmed,
but you want to start the heater
operation immediately. The
programmer is in the AUTO
mode. Press the ▲ button for
3 seconds. ADVANCE ap-
pears on the display. The heater is now switched on and op-
erates until the end of the programmed time period (i.e. until
7 p.m.). When the originally programmed starting time of the
heater
(5 p.m.) is reached, ADVANCE will disappear from the dis-
play.
The ADVANCE function can be manually cleared at any
time. Simply press the ▼ button..
