24 Hours Programming Cassette
1. Description RX TI 24
The programming cassette allows you to program within a
time frame of 24 hours up to 4 different time blocks during
which the heater is switched on. The programming cassette
can be used individually, i.e. for one heater, or serially, i.e. for
a group of heaters (e.g. for a complete dwelling unit).
If used as a serial programmer, a programming cassette is in-
stalled in one heater. This unit acts as the so-called "master
control". Once the electrical wiring (as shown in the installa-
tion instructions of the heater) has been completed, all time
functions set on the master device will be followed by every
slave heater connected to the same circuit. The heating pro-
gram preset on the master control (time blocks for On/Off) will
also be executed on all slave heaters.

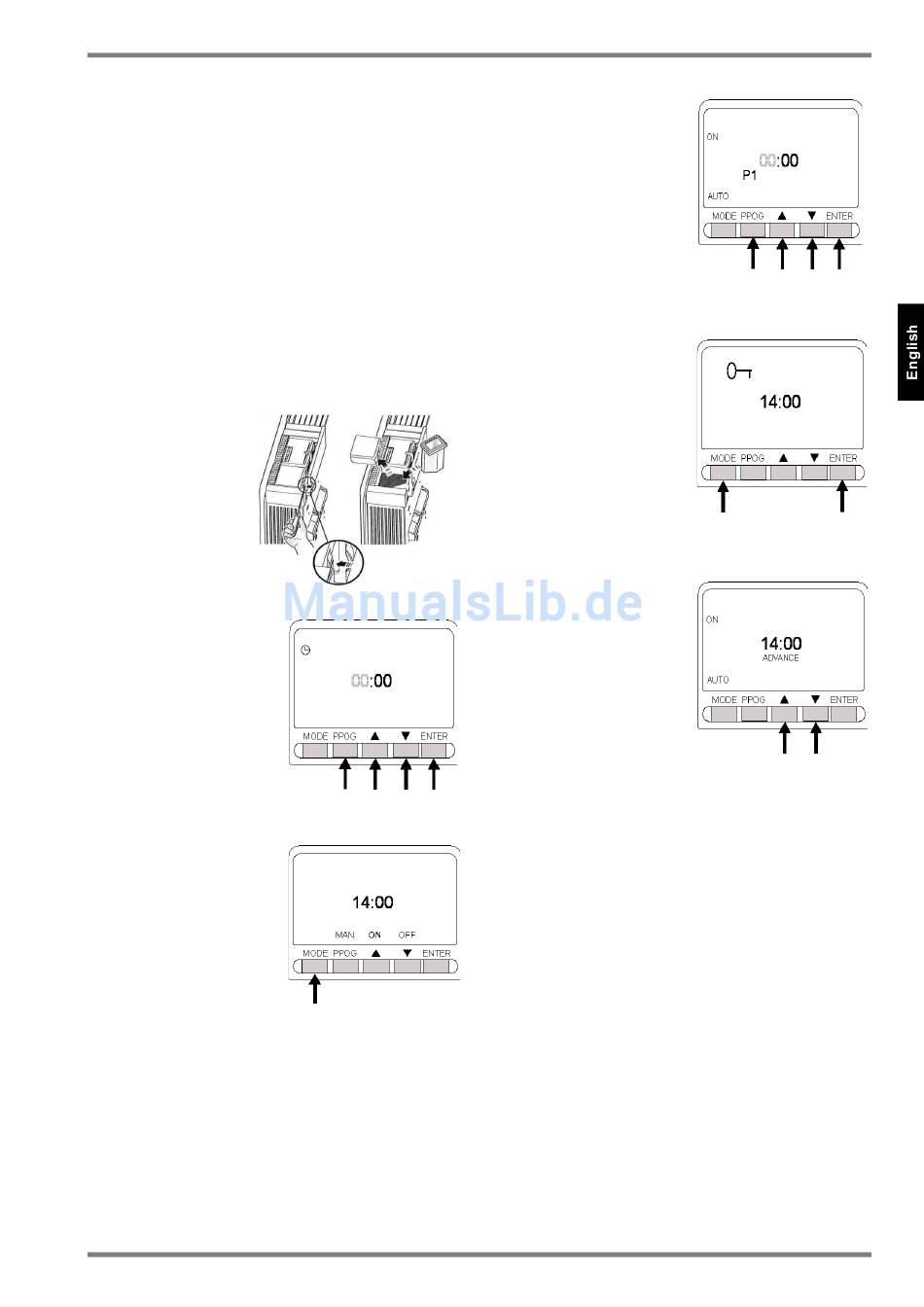

2. Installation
Turn off heater and
carefully tilt it toward the
front. With a flat-blade
screwdriver push latch-
ing clip of cover in the di-
rection of the arrow and
remove cover. Slide
cassette all the way into
the opening.
3. Setting the Time
Press the PROG button. The
"clock" symbol appears in the
upper left corner of the display
and the hours flash. Set the
hours using the ▼▲ buttons,
confirm with ENTER. Use the
same procedure to set the
minutes. Confirm with ENTER.
4. Manual Switching On /Off Mode
Switch on the heater (indicator
lamp is illuminated). Press the
MODE button until MAN ON
appears on the display. The
device is switched on. If you
wish to switch the device off,
press MODE once more. The
display MAN OFF appears.
The device is switched off.
5. Automatic Mode
Switch on the heater. Press the PROG button twice. P1 ON
appears on the display and the hours flash. Set the hours
using the ▼▲ buttons, confirm with ENTER. Use the same
procedure to set the minutes. Confirm with ENTER.
Note: Minutes can be set in 10-minute increments only!
P1 OFF now appears on the display. Set the desired switch-
off time and confirm with ENTER. Program P1 has thus been
set. P2 now appears, i.e. another heater operating time can
be programmed.
www.dimplex.de
Programs P3 and P4 can be
set in the same ma.nner. To
prematurely abort the setting
procedure press the PROG
button. All values already set
will be retained.
For the preset programs to be
executed, the programming
cassette must be in the AUTO
)automatic) mode. The operat-
ing mode can be selected by
means of the MODE button.
6. Key Lock Setting
Successively press ENTER
and MODE. The buttons must
be pressed within 1 second.
The key symbol appears on
the display. All key functions
are locked.
When the key combination is
pressed once more, the keys
are unlocked.
7. ADVANCE Mode
The ADVANCE mode enables the heater to provide instat
heat, i.e. before the preset
starting time.
Example: It is 2 p.m. A heater
operating time from 5 p.m. – 7
p.m. has been programmed,
but you want to start the heater
operation immediately. The
programmer is in the AUTO
mode. Press the ▲ button for
3 seconds. ADVANCE ap-
pears on the display. The
heater is now switched on and operates until the end of the
programmed time period (i.e. until 7 p.m.). When the origi-
nally programmed starting time of the heater
(5 p.m.) is reached, ADVANCE will disappear from the dis-
play.
The ADVANCE function can be manually cleared at any
time. Simply press the ▼ button.
RXTI24_RXPW1_RXTIRB_gb · 07/14/A
RX TI 24, RX PW 1, RX TI RB
EN-7
