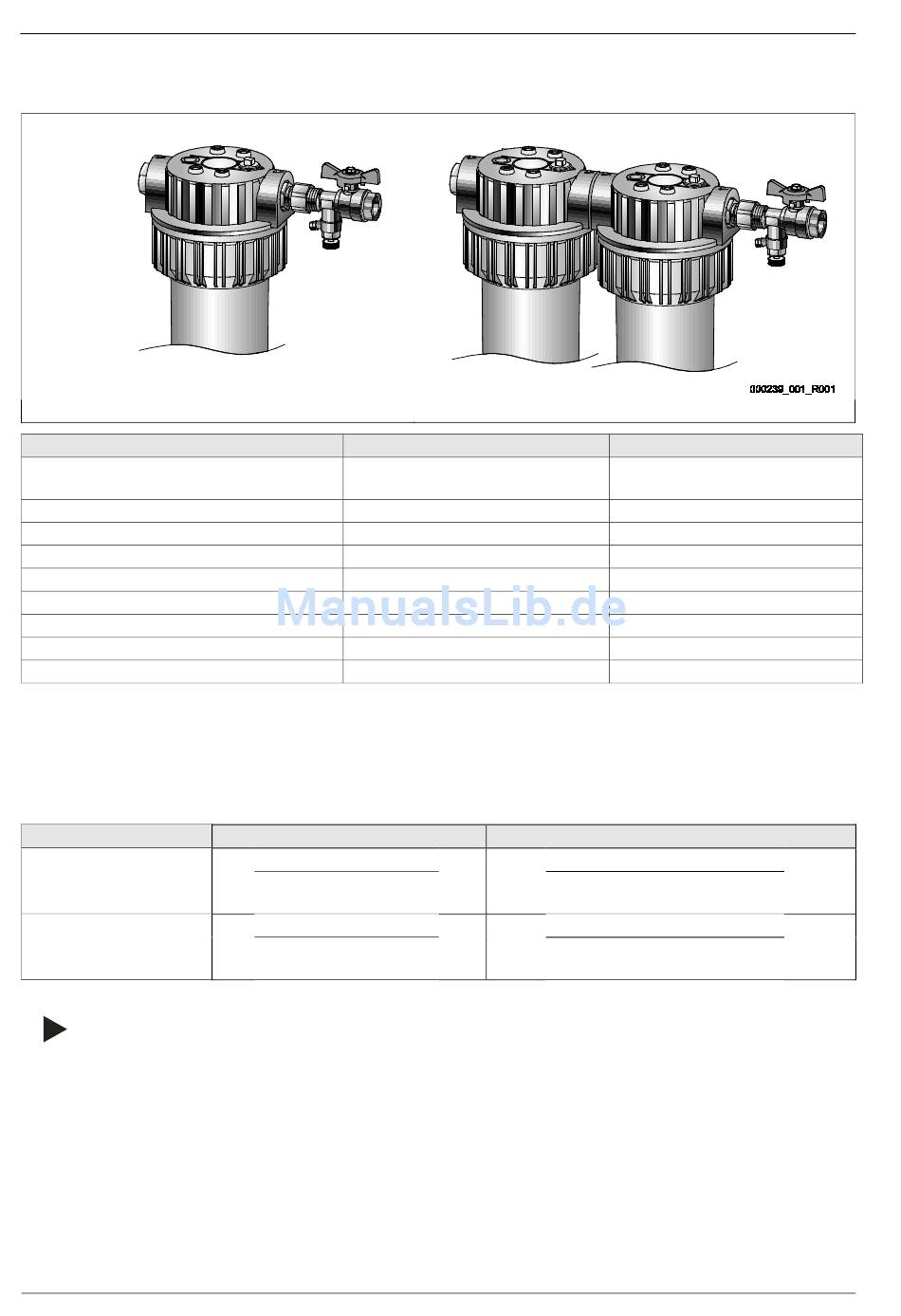

Technical data

2 Technical data
Fittings
Type
Recommended range of application in heating
systems
Length
Width
Height
Weight
Permissible gauge operating pressure
Permissible operating temperature
Connections, inlet/outlet
Maximum continuous flow rate
2.1

Calculating the cartridge capacity

Use the regional overall water hardness to calculate the cartridge's capacity to treat the water. The cartridge must be replaced when this
capacity is reached.
Cartridge capacity for treating water
Variant
Capacity with one cartridge
• Fillsoft 1
Capacity with two cartridges
• Fillsoft 2
Notes
• To calculate the soft water capacity, you require the value of the relevant regional overall water hardness [°dH].
– Degree of German water hardness [°dH].
• Contact the local water supplier for the regional overall water hardness.
– Optionally use the measuring equipment for determining the regional overall water hardness.
6 — English
Fitting
Fillsoft for softening
6,000 [litres x °dH]
Overall water
hardness [°dH]
12,000 [litres x °dH]
Overall water
hardness [°dH]
Reflex Fillsoft — 12.05.2015
Fitting
20 kW – 300 kW
260 mm
130 mm
600 mm
3.0 kg
8 bar
5 °C – 40 °C
Internal thread Rp ½
0,4 m 3 /h
Overall water hardness [°dH]
Overall water hardness [°dH]
Fitting group
Fitting group
301 kW – 600 kW
380 mm
130 mm
600 mm
5.8 kg
8 bar
5 °C – 40 °C
Internal thread Rp ½
0,4 m 3 /h
Fillsoft Zero for desalinating
3,000 [litres x °dH]
6,000 [litres x °dH]
