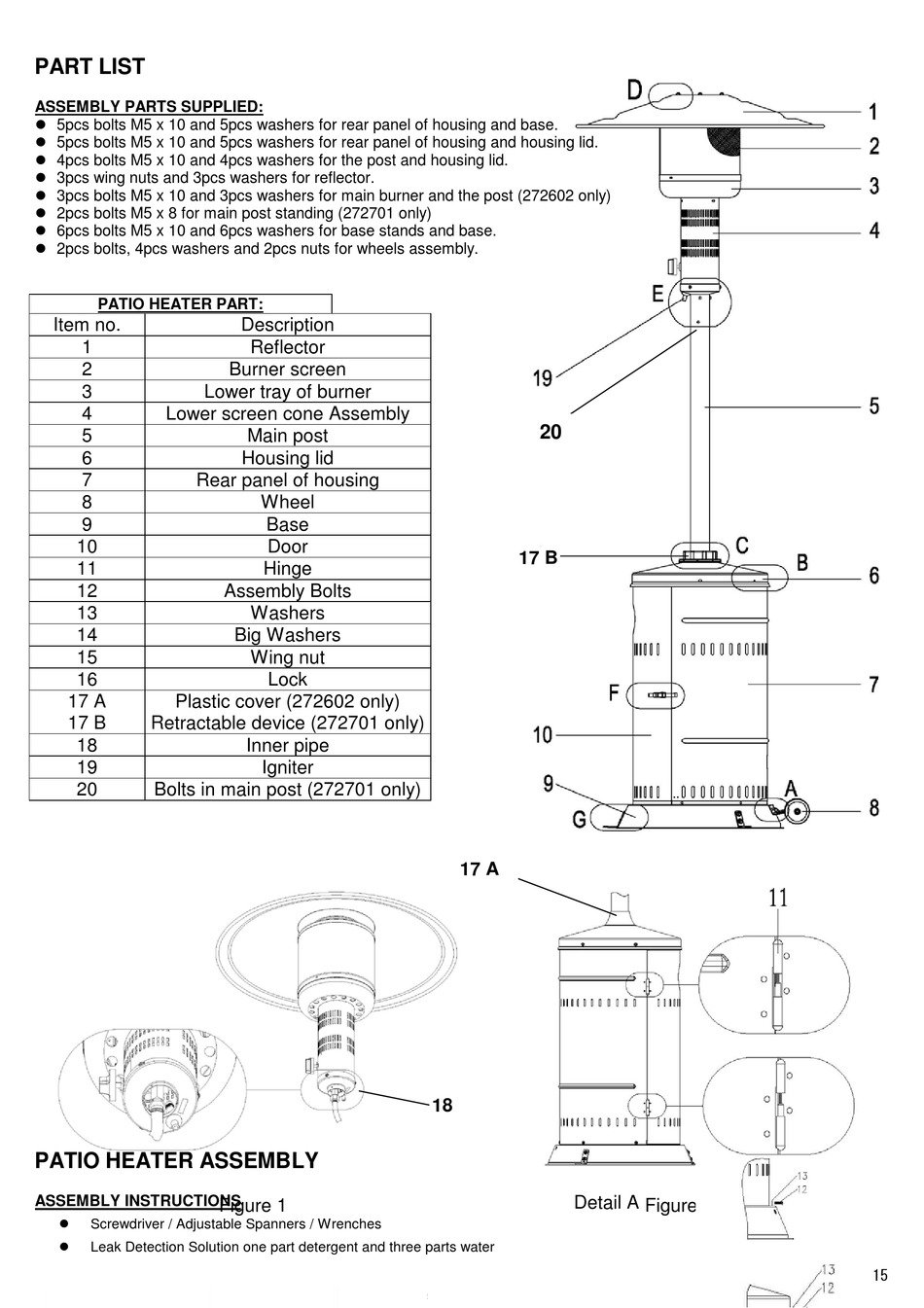

PART LIST

ASSEMBLY PARTS SUPPLIED:
 5pcs bolts M5 x 10 and 5pcs washers for rear panel of housing and base.
 5pcs bolts M5 x 10 and 5pcs washers for rear panel of housing and housing lid.
 4pcs bolts M5 x 10 and 4pcs washers for the post and housing lid.
 3pcs wing nuts and 3pcs washers for reflector.
 3pcs bolts M5 x 10 and 3pcs washers for main burner and the post (272602 only)
 2pcs bolts M5 x 8 for main post standing (272701 only)
 6pcs bolts M5 x 10 and 6pcs washers for base stands and base.
 2pcs bolts, 4pcs washers and 2pcs nuts for wheels assembly.
PATIO HEATER PART:
Item no.
1
2
3 Lower tray of burner
4 Lower screen cone Assembly
5
6
7 Rear panel of housing
8
9
10
11
12
13
14
15
16
17 A Plastic cover (272602 only)
17 B Retractable device (272701 only)
18
19
20 Bolts in main post (272701 only)

PATIO HEATER ASSEMBLY

ASSEMBLY INSTRUCTIONS

Screwdriver / Adjustable Spanners / Wrenches

Leak Detection Solution one part detergent and three parts water
Description
Reflector
Burner screen
Main post
Housing lid
Wheel
Base
Door
Hinge
Assembly Bolts
Washers
Big Washers
Wing nut
Lock
Inner pipe
Igniter
Figure 1
20
17 B
Figure 1
17 A
18
Detail A
Figure 2
15
