USE

Several receivers may be assigned to a transmitter. It is possible to operate a maximum of 512 receivers.

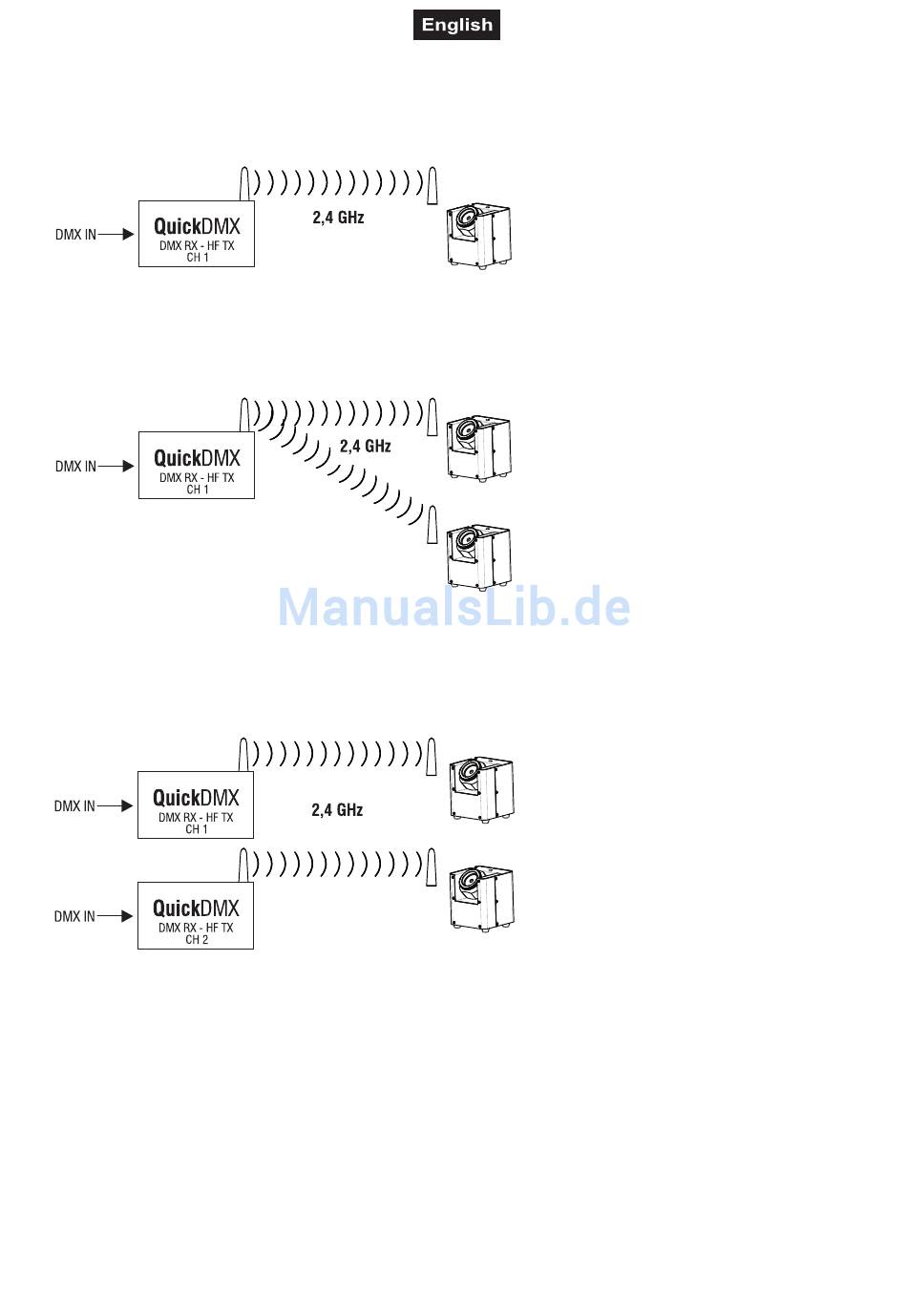

Transmission 1:1

The DMX signal is fed to a transmitter which sends it via RF. A receiver with the same transmission channel
receives the RF signal and distributes it as a DMX signal.

Transmission 1:Many

The DMX signal is fed to a transmitter which sends it via RF. Several receivers with the same transmission
channel receive the RF signal and distribute it as a DMX signal.

Parallel Transmission

It is possible to operate 6 wireless DMX networks with 6 transmitters in parallel without mutual interference
by adjusting them to different transmission channels. The wireless DMX networks operate independent of
each other in 1:1 or 1: many transmission mode.
36/44 00100653.DOC, Version 1.0
