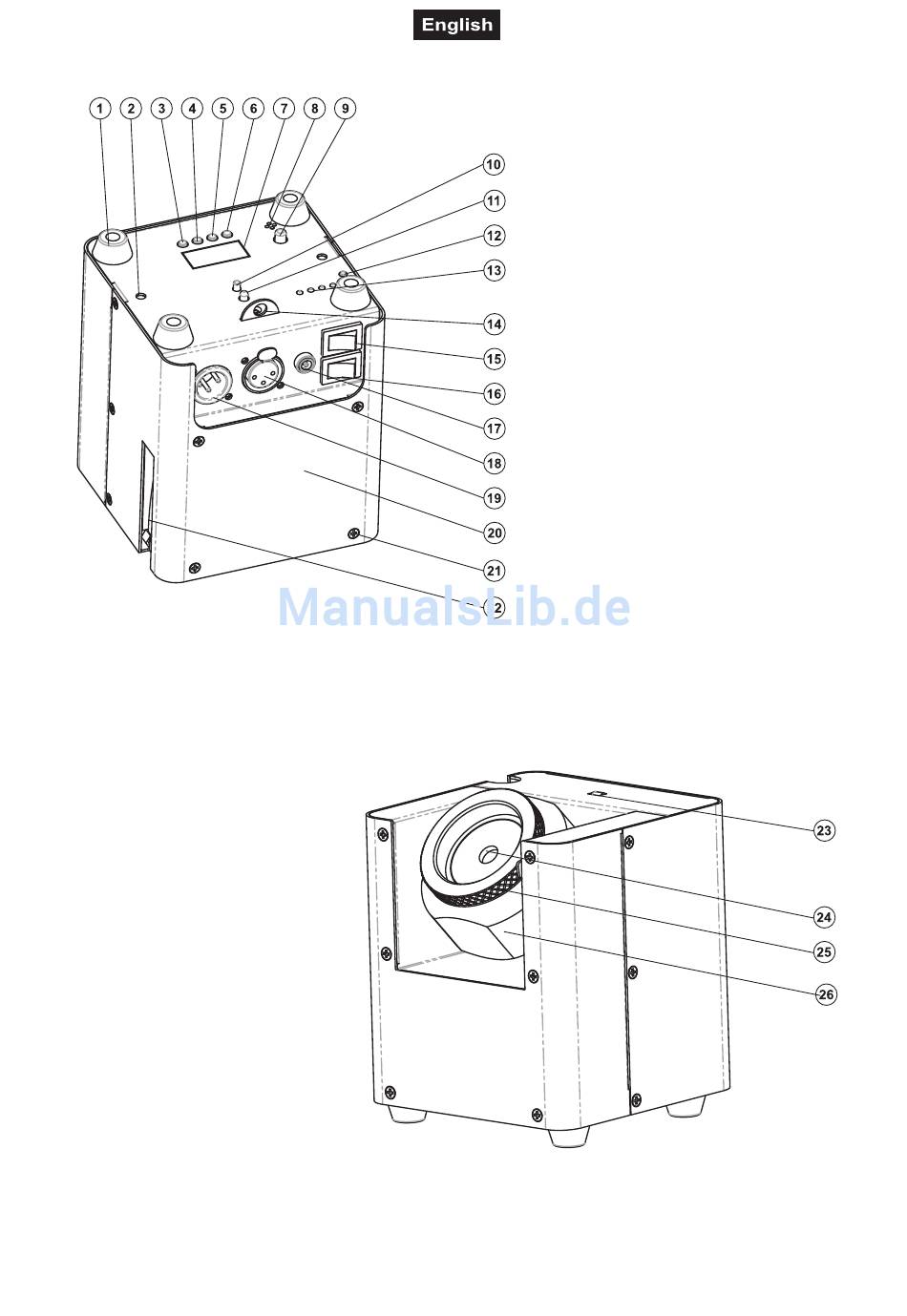

Overview

(19) 3-pin DMX input
(20) Housing
(21) Housing screw
(22) QuickDMX antenna
(23) Infrared sensor for the remote
control
(24) Lens/LED
(25) Union nut lens
(26) LED head (tiltable)
(1) Rubber foot
(2) Thread for screw/Omega Holder
(3) Enter button
(4) Down button
(5) Up button
(6) Menu button
(7) Display
(8) Microphone
(9) Microphone sensitivity control
(10) Button ID, to change the transmission
channel and pair the devices
(11) QuickDMX status indicator
(12) Button charge indicator
(13) Charge indicator
(14) Safety eyelet
(15) Function switch (QuickDMX)
(16) Power switch
(17) Charger input
(18) 3-pin DMX output
