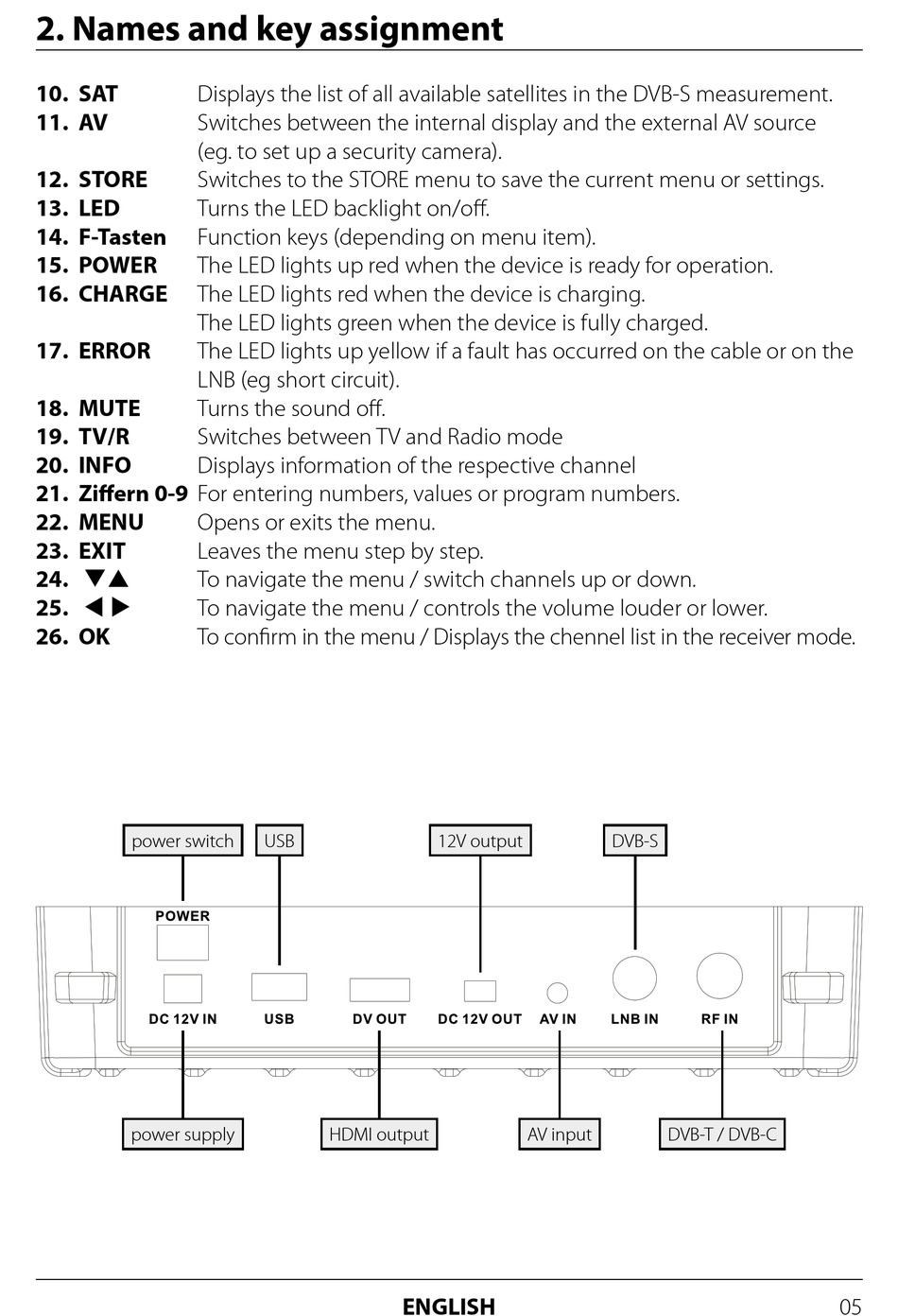

2. Names and key assignment
10. SAT
Displays the list of all available satellites in the DVB-S measurement.
11. AV
Switches between the internal display and the external AV source
(eg. to set up a security camera).
12. STORE
Switches to the STORE menu to save the current menu or settings.
13. LED
Turns the LED backlight on/off.
14. F-Tasten
Function keys (depending on menu item).
15. POWER
The LED lights up red when the device is ready for operation.
16. CHARGE
The LED lights red when the device is charging.
The LED lights green when the device is fully charged.
17. ERROR
The LED lights up yellow if a fault has occurred on the cable or on the
LNB (eg short circuit).
18. MUTE
Turns the sound off.
19. TV/R
Switches between TV and Radio mode
20. INFO
Displays information of the respective channel
21. Ziffern 0-9 For entering numbers, values or program numbers.
22. MENU
Opens or exits the menu.
23. EXIT
Leaves the menu step by step.
24. qp
To navigate the menu / switch channels up or down.
25. t u To navigate the menu / controls the volume louder or lower.
26. OK
To confirm in the menu / Displays the chennel list in the receiver mode.
power switch
power supply
USB
HDMI output
ENGLISH
12V output
AV input
DVB-S
DVB-T / DVB-C
