Affinity 990

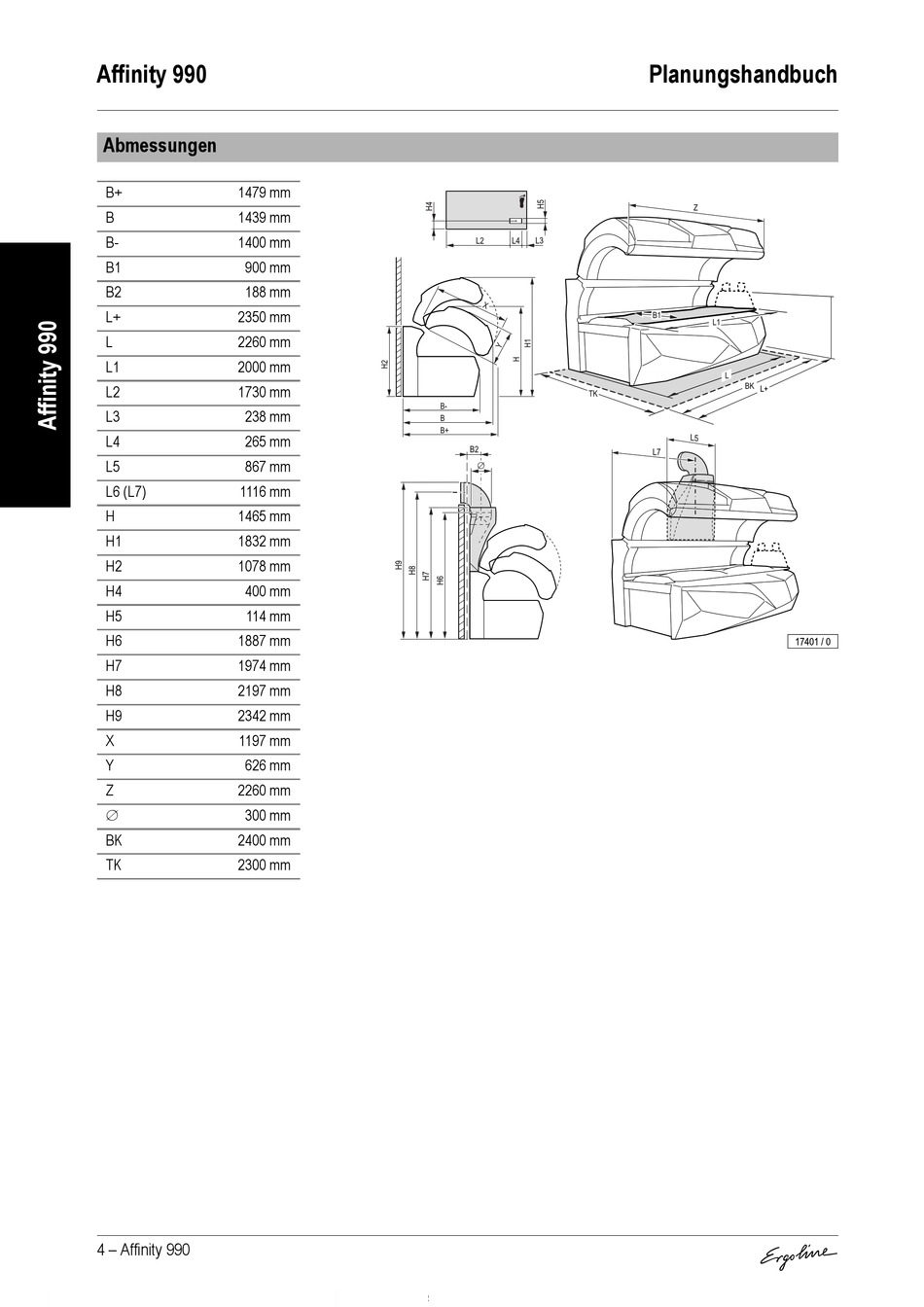

Abmessungen

B+ 1479 mm
B 1439 mm
B- 1400 mm
B1 900 mm
B2 188 mm
L+ 2350 mm
L 2260 mm
L1 2000 mm
L2 1730 mm
L3 238 mm
L4 265 mm
L5 867 mm
L6 (L7) 1116 mm
H 1465 mm
H1 1832 mm
H2 1078 mm
H4 400 mm
H5 114 mm
H6 1887 mm
H7 1974 mm
H8 2197 mm
H9 2342 mm
X 1197 mm
Y 626 mm
Z 2260 mm

300 mm
BK 2400 mm
TK 2300 mm
