CENTRAL VACUUM UNIT INSTALLATION
If the vacuum cleaner system is to be operated under
radio control, the radio transmitter should be taught
prior
to the central vacuum unit being mounted to
the wall.
Refer to section preparations, for information related
to teaching the transmitter.
1
4 2
3

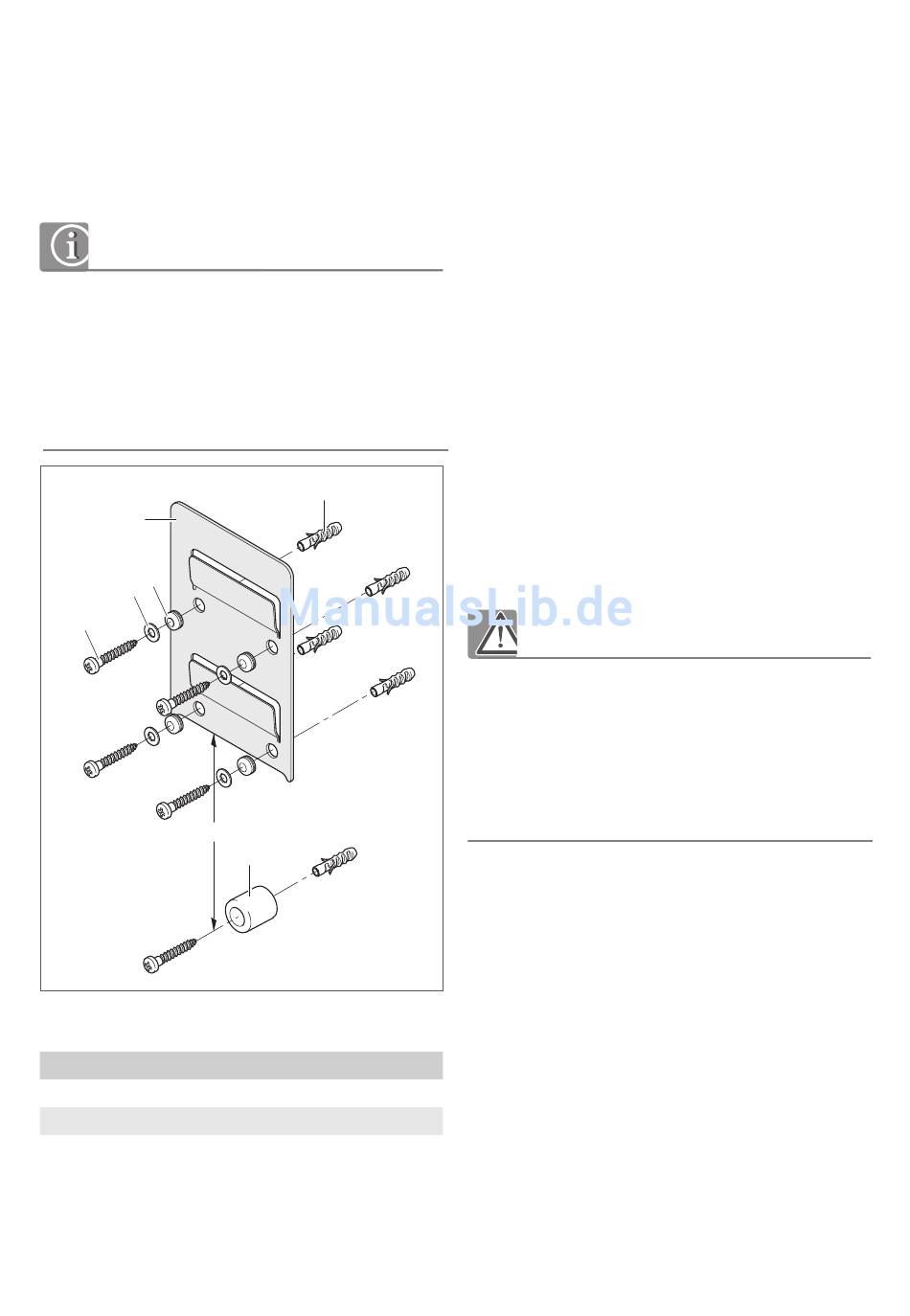

Fig. 1 Wall retainer installation
Central vacuum unit model
2000 and 3000
4000
26
5
x
6
Gap x
17 cm
33 cm
1. Mount the vibration uncoupler (2) on the wall retai-
ner (1)
2. Mount the wall retainer (1) on the wall at a height
of approx. 1.6 m using the screws (3), washers
(4) and dowels (5) (refer also to the vacuum unit
installation instructions).
3. Mount the spacer plate (6) with an appropriate gap,
x, in the center underneath the wall retainer (1)
using screws and dowels.
4. Hang the central vacuum unit onto the wall retainer
and align the unit so that it is vertical.
Examining the Cartridge Filter
Warning! Fire hazard!
A damaged or missing cartridge filter can result in the
unit's overheating and, in the worst case, in a fire.
- Never operate the system with a damaged or
missing cartridge filter.
- Regularly inspect the cartridge filter.
The central vacuum unit's cartridge filter has been
installed at the factory. Prior to commissioning the
system, inspect the cartridge filter for a secure seat.
