Mounting with thermal separation (push−through technique)
3.2.1

Dimensions

)
Note!
Mounting with ECSZS000X0B shield mounting kit:
ƒ

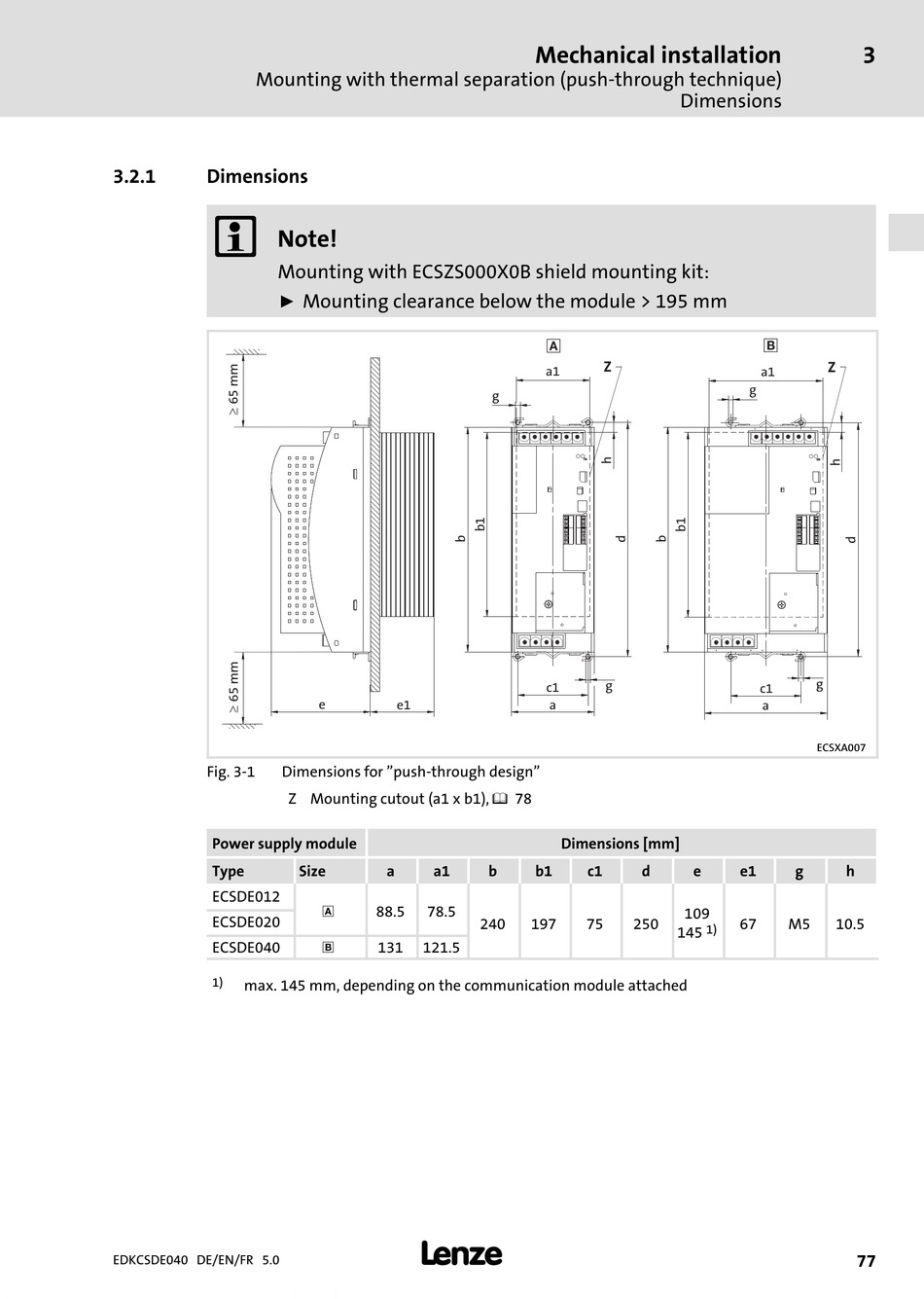

Fig. 3−1 Dimensions for "push−through design"
Power supply module
Type
ECSDE012
ECSDE020
ECSDE040
1)
max. 145 mm, depending on the communication module attached
EDKCSDE040 DE/EN/FR 5.0
Mounting clearance below the module > 195 mm
e e1
Z Mounting cutout (a1 x b1), ^ 78
Size a a1
0
88.5 78.5
1
131 121.5
l
Mechanical installation
0
Z
a1
g
g
c1
a
Dimensions [mm]
b b1 c1 d
240 197 75 250
Dimensions
1
Z
a1
g
g
c1
a
ECSXA007
e e1 g h
109
67 M5 10.5
1)
145
3
77
