4.6

Wiring of system bus (CAN)

The modules of the ECS series communicate
via the system bus interface (X4).
ƒ
set parameters and display code contents.
ƒ
System bus (CAN) wiring

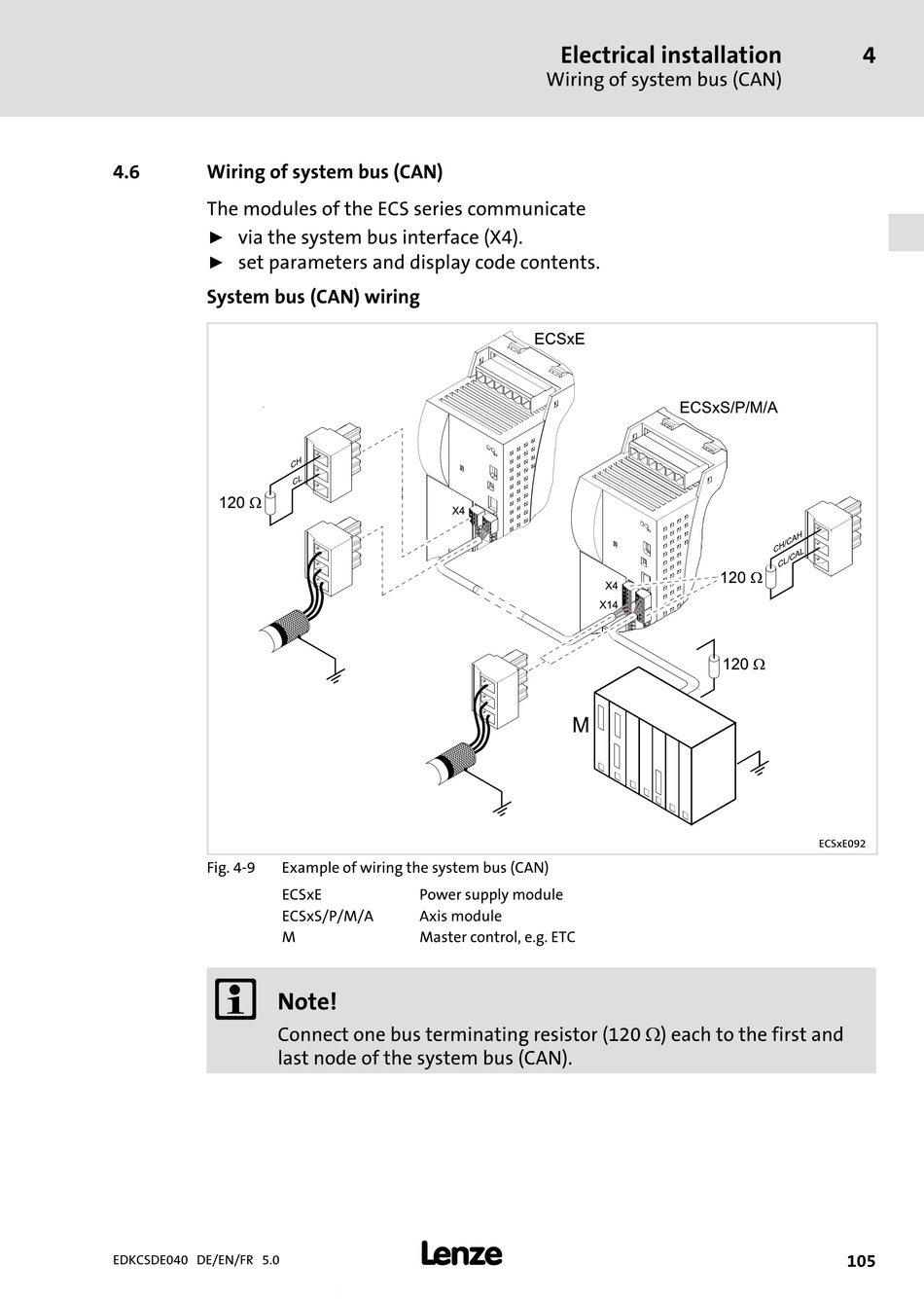

Fig. 4−9 Example of wiring the system bus (CAN)
ECSxE
ECSxS/P/M/A
M
)
Note!
Connect one bus terminating resistor (120 W) each to the first and
last node of the system bus (CAN).
EDKCSDE040 DE/EN/FR 5.0
Electrical installation
Wiring of system bus (CAN)
Power supply module
Axis module
Master control, e.g. ETC
l
4
ECSxE092
105
