4 Electrical installation
Control terminals
L3 PE
L1 L2
X21
"
"
0

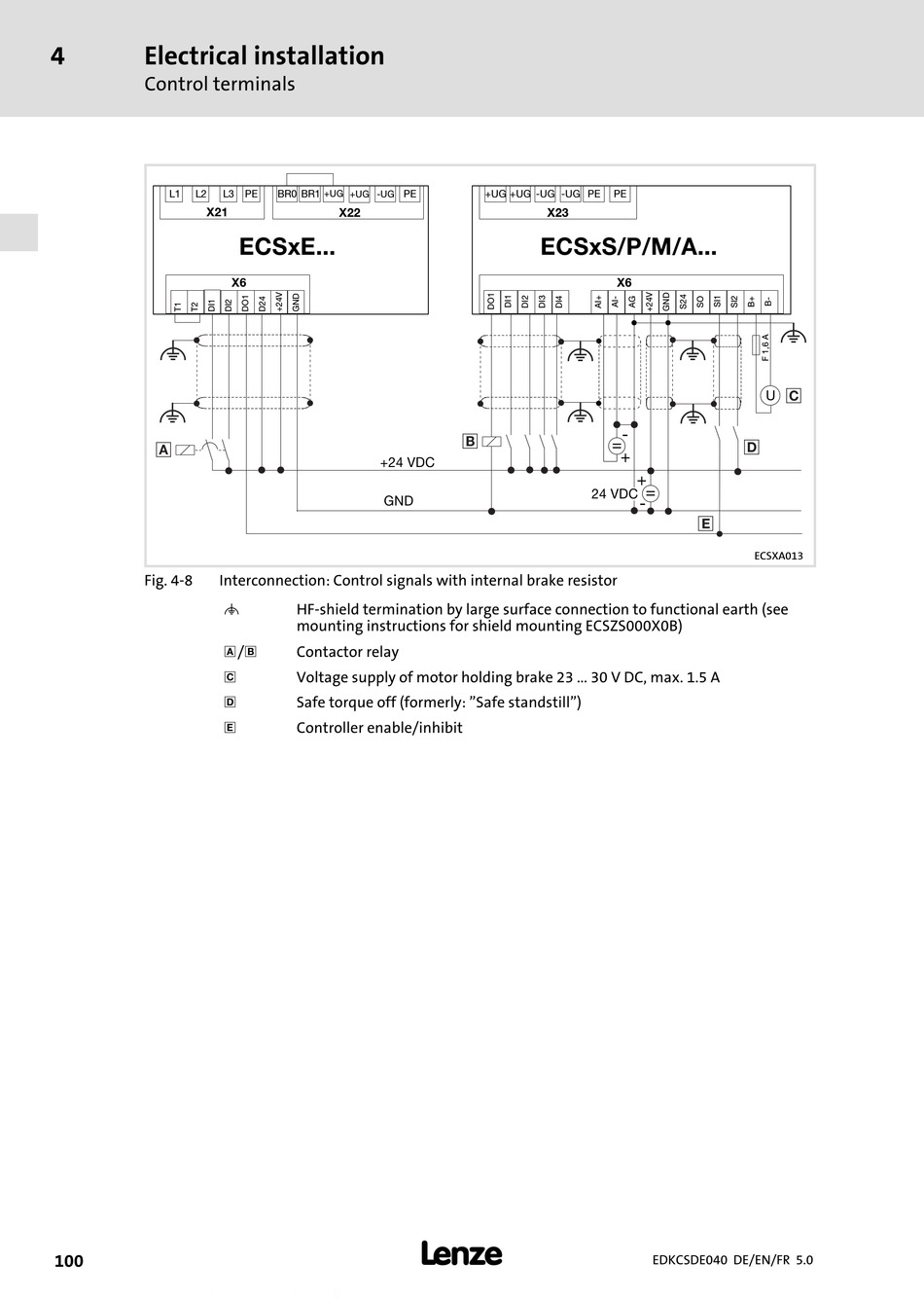

Fig. 4−8 Interconnection: Control signals with internal brake resistor
"
0 / 1
2
3
4
100
BR0 BR1 +UG +UG -UG PE
X22
ECSxE...
X6
+24 VDC
GND
HF−shield termination by large surface connection to functional earth (see
mounting instructions for shield mounting ECSZS000X0B)
Contactor relay
Voltage supply of motor holding brake 23 ... 30 V DC, max. 1.5 A
Safe torque off (formerly: "Safe standstill")
Controller enable/inhibit
+UG +UG -UG -UG PE
X23
ECSxS/P/M/A...
"
"
1
24 VDC
l
PE
X6
"
"
2
U
"
-
3
=
+
4
ECSXA013
EDKCSDE040 DE/EN/FR 5.0
