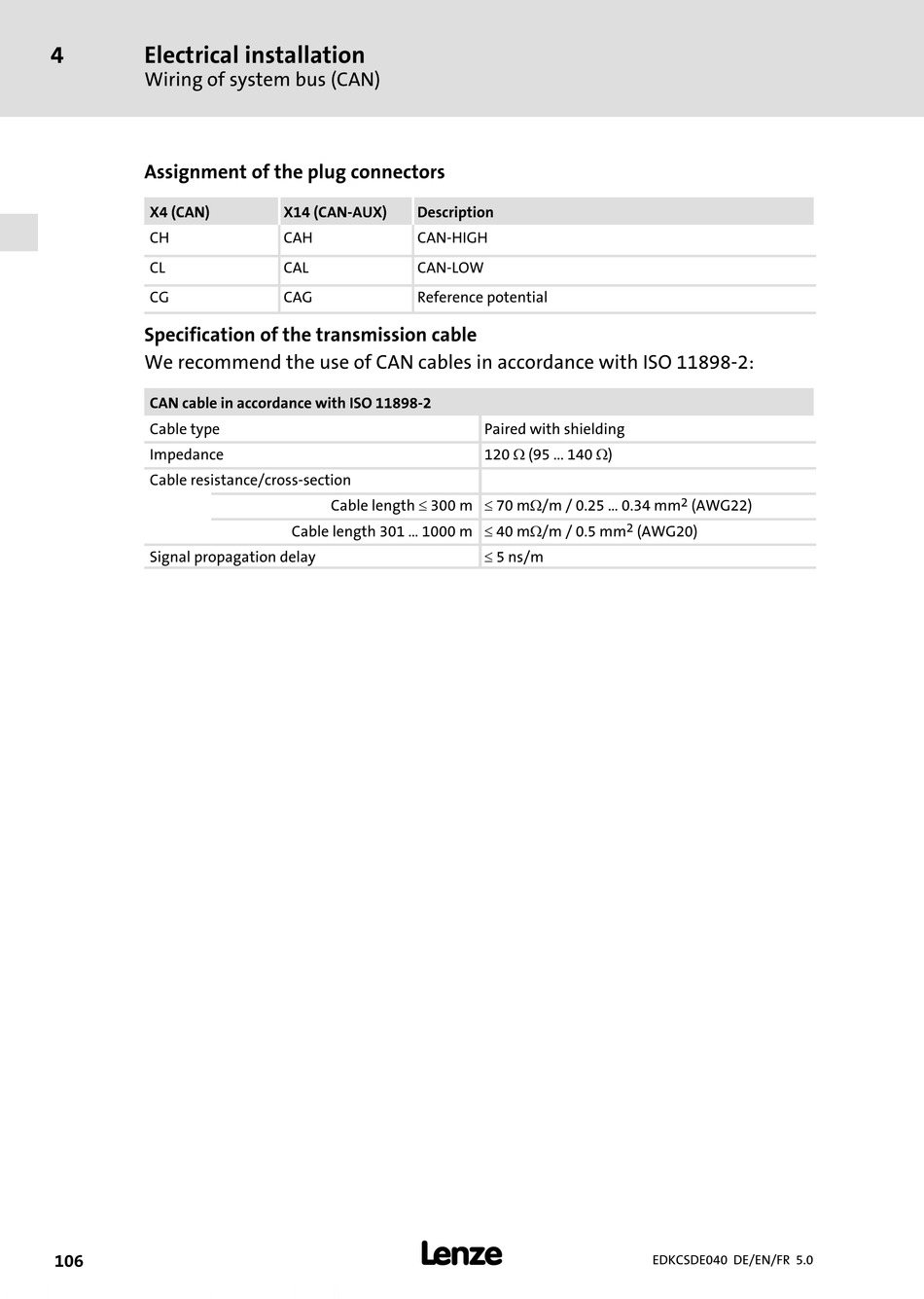

4 Electrical installation
Wiring of system bus (CAN)
Assignment of the plug connectors
X4 (CAN)
CH
CL
CG
Specification of the transmission cable
We recommend the use of CAN cables in accordance with ISO 11898−2:
CAN cable in accordance with ISO 11898−2
Cable type
Impedance
Cable resistance/cross−section
Signal propagation delay
106
X14 (CAN−AUX) Description
CAH CAN−HIGH
CAL CAN−LOW
CAG Reference potential
Cable length £ 300 m £ 70 mW/m / 0.25 … 0.34 mm
Cable length 301 … 1000 m £ 40 mW/m / 0.5 mm
l
Paired with shielding
120 W (95 ... 140 W)
2
(AWG20)
£ 5 ns/m
EDKCSDE040 DE/EN/FR 5.0
2
(AWG22)
